CRANKCASE COVER

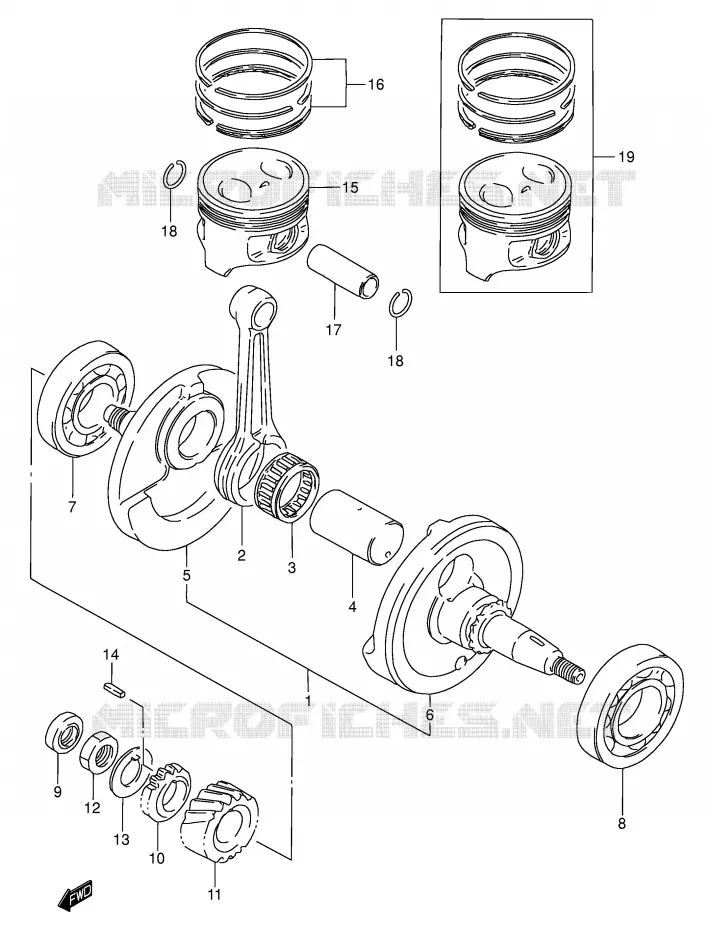

CRANKSHAFT FOR SUZUKI DR 200 2004

STARTER MOTOR CLUTCH

Item numbers

CRANKSHAFT ASSY

12200-42A21-000 1220042A21000

$618,97

Unit Price

12200-42A21
CRANKSHAFT ASSY

12200-42A10-000 1220042A10000

Not available

CRANKSHAFT ASSY

12200-42A20-000 1220042A20000

Not available

CONNECTING ROD
ROD, CONNECTING

12161-42A01-000 1216142A01000

$121,97

Unit Price

ROLLER BEARING
BEARING

09263-31008-0B0 09263310080B0

$56,97

Unit Price

PIN, CRANK

12210-42A00-000

12210-42A01-000

$45,97

Unit Price

CRANKSHAFT, R
CRANKSHAFT, RH

12221-42A02-000 1222142A02000

$168,97

Unit Price

CRANKSHAFT, L
CRANKSHAFT, LH

12261-42A20-000 1226142A20000

$184,97

Unit Price

CRANKSHAFT, LH

12261-42A10-000 1226142A10000

Not available

BALL BEARING
BEARING (28X68X18)

09262-28014-000 0926228014000

$78,97

Unit Price

BEARING (35X72X17)

09262-35038-000 0926235038000

$68,97

Unit Price

SEAL OIL 12X21X7
OIL SEAL (12X21X7)

09282-12009-000 0928212009000

$16,97

Unit Price

GEAR, OIL PUMP DRIVE (NT:15)

16321-42A00-000 1632142A00000

$58,97

Unit Price

GEAR, PRIMARY DRIVE
GEAR, PRIMARY DRIVE (NT:19)

21111-42A01-000 2111142A01000

$40,97

Unit Price

PRIMARY DR GEAR NUT
NUT

09140-18004-000 0914018004000

$5,97

Unit Price

WASHER

09166-18003-000 0916618003000

$3,97

Unit Price

KEY

09421-04007-000 0942104007000

$16,97

Unit Price

PISTON

12111-42A03-000

12111-42A20-0F0

$90,97

Unit Price

RING SET, PISTON
RING SET, PISTON (STD)

12140-19B10-000 1214019B10000

$105,97

Unit Price

RING SET, PISTON(OS:0.50)
RING SET, PISTON (OS:0.5)

12140-19B10-050 1214019B10050

$109,97

Unit Price

RING SET, PISTON

12140-42A00-000

12140-42A01-000

$62,97

Unit Price

PIN, PISTON

12151-22A02-000 1215122A02000

$17,97

Unit Price

PISTON PIN CIRCLIP
SNAP RING

09381-16001-000 0938116001000

$2,97

Unit Price

PISTON SET, OS0.5

12100-42A00-050

12100-42A40-050

$174,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of DR. Let us know if you have any questions.
