Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FUEL COCK

STAND FOR SUZUKI DR 200 2007

HANDELBAR (E24)

Item numbers

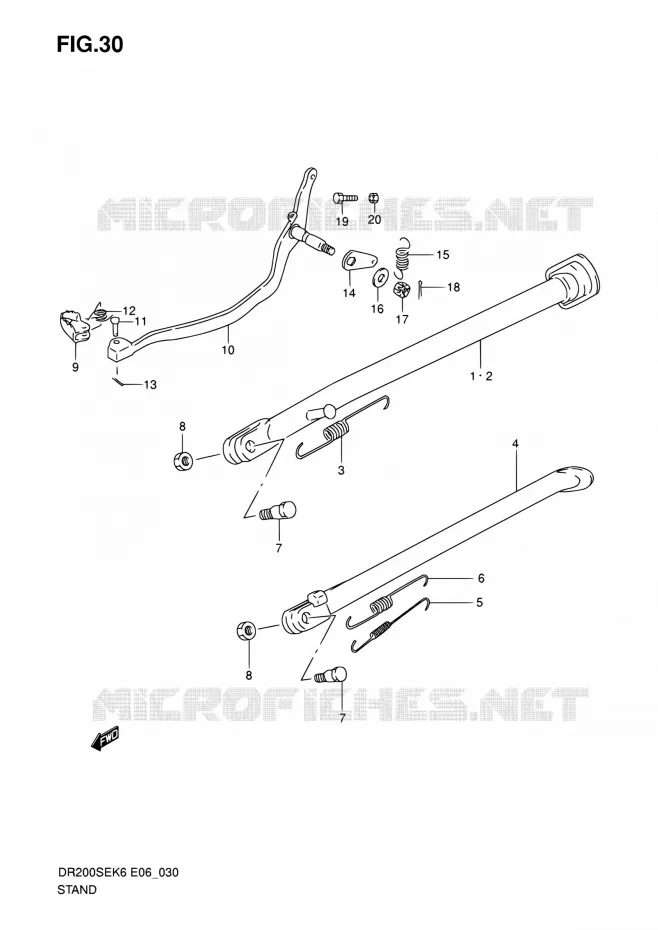

STAND Suzuki MOTO 200 DR 2007 DR200SE K7 (E06,E24)
1
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
1
STAND, PROP LH

42310-44AF0-000   4231044AF0000

4231044AF0000
Not available
2
STAND, PROP RH

42320-44AF0-000   4232044AF0000

4232044AF0000
Not available
3
PROP STAND SPRING
SPRING

09443-17007-000   0944317007000

0944317007000

Unit Price

4
STAND, PROP

42310-44A50-000   4231044A50000

4231044A50000
Not available
5
SPRING
SPRING, INNER

09443-12035-000   0944312035000

0944312035000

Unit Price

6
SPRING
SPRING, OUTER

09443-20003-000   0944320003000

0944320003000

Unit Price

7
BOLT
BOLT

09111-10047-000   0911110047000

0911110047000

Unit Price

8
NUT
NUT

09159-10097-000   0915910097000

0915910097000

Unit Price

9
PEDAL, BRAKE

43110-14130-000   4311014130000

4311014130000

Unit Price

10
ARM, BRAKE PEDAL

43120-44A12-000   4312044A12000

4312044A12000

Unit Price

11
PIN

09200-06038-000   0920006038000

0920006038000

Unit Price

12
SPRING

09444-11005-000   0944411005000

0944411005000

Unit Price

13
PIN<br />COTTER PIN
PIN
COTTER PIN

04111-2015A-000   041112015A000

041112015A000

Unit Price

14
ARM, BRAKE RETURN SPRING

43128-38200-000   4312838200000

4312838200000

Unit Price

15
BRK PEDAL RETURN SPG
SPRING

09443-14002-000   0944314002000

0944314002000

Unit Price

16
WASHER
THRUST WASHER

08211-08202-000   0821108202000

0821108202000

Unit Price

17
NUT

08314-4008B-000   083144008B000

083144008B000

Unit Price

18
PIN<br />COTTER PIN
PIN
COTTER PIN

04111-2020A-000   041112020A000

041112020A000

Unit Price

19
BRK PEDAL ADJ BOLT
BOLT (6X23)

09100-06009-000   0910006009000

0910006009000

Unit Price

20
NUT

08310-0006B-000  

083100006B000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 200 DR 2007

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 200 DR 2007

Select your Suzuki 2007 model

200 DR 2007 DR200SE K7 (E06,E24)

Suzuki DR

Displacement: 200 cc
Year: 2007
Model code DR200SE K7 (E06,E24)
