STARTER MOTOR CLUTCH

CAMSHAFT - VALVES FOR SUZUKI DR 200 2009

TIMING

Item numbers

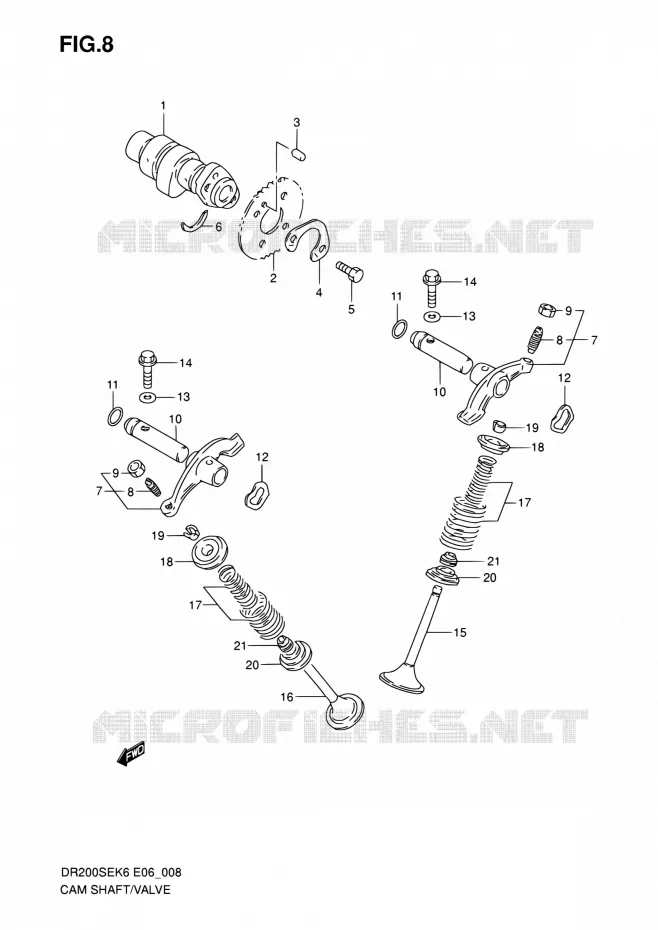

CAMSHAFT - VALVES Suzuki MOTO 200 DR 2009 DR200SE K9 (E06,E24)
1
2
3
4
5
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
16
17
17
18
18
19
19
20
20
21
21
1
CAMSHAFT

12711-42A10-000  

12711-42A11-000
 1271142A10000

Unit Price

2
SPROCKET, CAMSHAFT
SPROCKET, CAM SHAFT (NT:32)

12741-05201-000   1274105201000

1274105201000

Unit Price

3
KNOCK PIN, SPROCKET
PIN

09261-05005-000   0926105005000

0926105005000

Unit Price

4
WASHER, SPROCKET

12747-05202-000   1274705202000

1274705202000

Unit Price

5
BOLT (6X10.5)

09100-06166-000   0910006166000

0910006166000

Unit Price

6
C-RING, CAM SHAFT
C RING

09390-22002-000   0939022002000

0939022002000

Unit Price

7
ARM ASSY, VALVE ROCKER
ARM, VALVE ROCKER

12850-25C00-000   1285025C00000

1285025C00000

Unit Price

8
SCREW, TAPPET ADJUSTING
.SCREW, ADJUSTING

12842-32411-000   1284232411000

1284232411000

Unit Price

9
NUT, ADJUSTING SCREW
.NUT

12843-32400-000   1284332400000

1284332400000

Unit Price

10
SHAFT, VALVE ROCKET
SHAFT, VALVE ROCKER ARM

12861-05201-000   1286105201000

1286105201000

Unit Price

11
O RING,ROCKER SHAFT<br />O RING (D:1.9,ID:8.6)
O RING, ROCKER SHAFT
O RING (D:1.9, ID:8.6)

09280-09005-000   0928009005000

0928009005000

Unit Price

12
WASHER,WAVE<br />WASHER
WASHER, WAVE
WASHER

09164-12021-000   0916412021000

0916412021000

Unit Price

13
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
14
SCREW
BOLT

02162-0625B-000   021620625B000

021620625B000

Unit Price

15
VALVE, INTAKE

12911-42A00-000   1291142A00000

1291142A00000

Unit Price

16
VALVE, EXHAUST

12912-42A00-000   1291242A00000

1291242A00000

Unit Price

17
SPRING SET, VALVE

12920-05210-000   1292005210000

1292005210000

Unit Price

18
RETAINER, VALVE SPRING
RETAINER, VALVE SPRING

12931-49201-000   1293149201000

1293149201000

Unit Price

19
COTTER, VALVE
COTTER, VALVE

12932-24400-000   1293224400000

1293224400000

Unit Price

20
SEAT, VALVE SPRING
SEAT, VALVE SPRING

12933-49201-000   1293349201000

1293349201000

Unit Price

21
SEAL, OIL(5.5X11X8.2)
OIL SEAL (5.5X11X8.2)

09289-05015-000   0928905015000

0928905015000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAMSHAFT - VALVES of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 200 DR 2009
