STEERING COLUMN FOR SUZUKI DR 200 2009

FRONT WHEEL

Item numbers

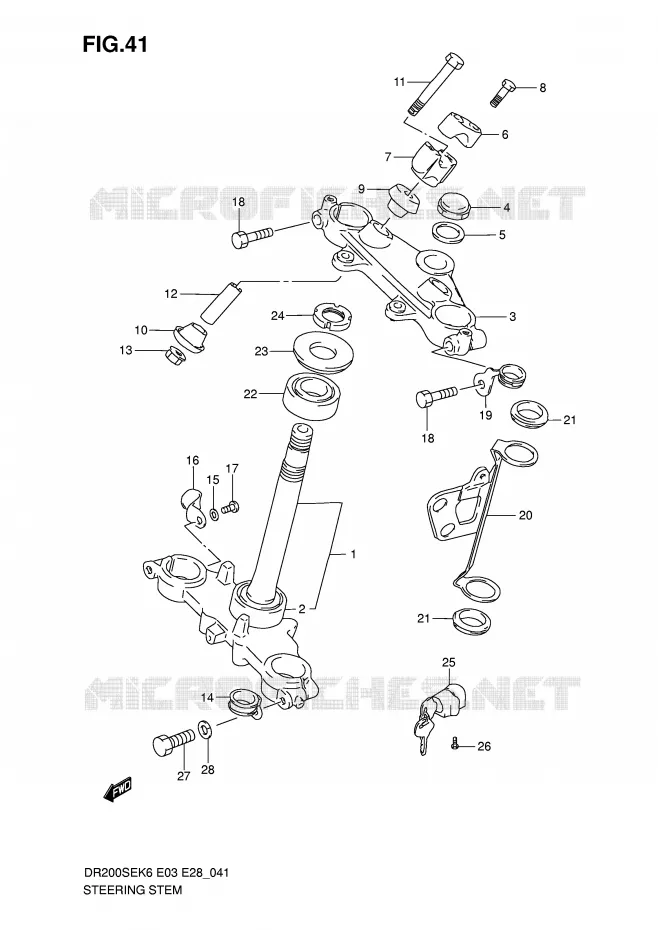

STEERING COLUMN Suzuki MOTO 200 DR 2009 DR200SEK9(E3/E28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
20
21
21
22
23
24
25
26
27
28
1
51410-42AB1
STEM, STEERING (BLACK)

51410-42AB0-000   5141042AB0000

5141042AB0000
Not available
2
BEARING,STEERING LOW
BEARING, STEERING LOW

09265-30009-000  

09265-30034-000
 0926530009000

Unit Price

3
HEAD, STEERING STEM
HEAD, STEERING STEM (BLACK)

51311-44AA0-291   5131144AA0291

5131144AA0291

Unit Price

4
NUT, CAP
NUT, CAP

51353-24B00-000   5135324B00000

5135324B00000

Unit Price

5
WASHER

51354-14D00-000   5135414D00000

5135414D00000

Unit Price

6
HOLDER,HANDLE UPR<br />HOLDER, HANDLE UPPER (BLACK)
HOLDER, HANDLE UPR
HOLDER, HANDLE UPPER (BLACK)

56211-27200-291   5621127200291

5621127200291

Unit Price

7
HOLDER, HANDLEBAR LWR
HOLDER, HANDLE LOWER (BLACK)

56221-42A00-291   5622142A00291

5622142A00291

Unit Price

8
BOLT

01550-0835B-000   015500835B000

015500835B000

Unit Price

9
CUSHION RUBBER, UPPER

56240-42A00-000  

56240-42A01-000
 5624042A00000

Unit Price

10
CUSHION,RUBBER UNDER
CUSHION, RUBBER UNDER

56242-28C60-000  

56242-28C61-000
 5624228C60000

Unit Price

11
BOLT,HANDLE HOLDER(10X70)<br />BOLT, LOWER HOLDER
BOLT, HANDLE HOLDER(10X70)
BOLT, LOWER HOLDER

56321-27E00-000   5632127E00000

5632127E00000

Unit Price

12
SPACER

56243-42A00-000   5624342A00000

5624342A00000

Unit Price

13
NUT
NUT

08319-31107-000   0831931107000

0831931107000

Unit Price

14
CLIP, LOWER
CLIP

51452-42A00-000   5145242A00000

5145242A00000

Unit Price

15
WASHER,LOCK<br />LOCK WASHER
WASHER, LOCK
LOCK WASHER

08321-01067-000   0832101067000

0832101067000

Unit Price

16
CLIP

51452-05130-000   5145205130000

5145205130000

Unit Price

17
SCREW
SCREW

02112-06087-000   0211206087000

0211206087000

Unit Price

18
BOLT
BOLT

01550-1040A-000   015501040A000

015501040A000

Unit Price

19
CLIP

51452-48700-000   5145248700000

5145248700000

Unit Price

20
BRACKET, HEADLAMP, R
BRACKET, HEADLAMP RH

51530-42A00-000   5153042A00000

5153042A00000

Unit Price

20
BRACKET, HEADLAMP, L
BRACKET, HEADLAMP LH

51540-42A00-000   5154042A00000

5154042A00000

Unit Price

21
CUSHION, HEADLAMP HSG BRACKET
CUSHION

51553-34280-000   5155334280000

5155334280000

Unit Price

22
BEARING<br />BEARING (25X47X15)
BEARING
BEARING (25X47X15)

09265-25019-000   0926525019000

0926525019000

Unit Price

23
SEAL, STEERING UPR DUST
SEAL, STEERING UPPER DUST

51643-01B10-000   5164301B10000

5164301B10000

Unit Price

24
NUT, STEERING

51631-08D30-000   5163108D30000

5163108D30000

Unit Price

25
LOCK SET, STEERING

51900-44810-000   5190044810000

5190044810000

Unit Price

26
SCREW

02112-3512B-000   021123512B000

021123512B000

Unit Price

27
BOLT, INNER TUBE FITTING
BOLT

51451-42A00-000   5145142A00000

5145142A00000

Unit Price

28
WASHER, LOCK

08321-0110A-000  

08321-0110B-000
 083210110A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STEERING COLUMN of your Suzuki of DR. Let us know if you have any questions.
