Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HEADLIGHT

INDICATORS (DR200SEL1 E6) FOR SUZUKI DR 200 2011

TAIL LIGHT (DR200SEL1 E6)

Item numbers

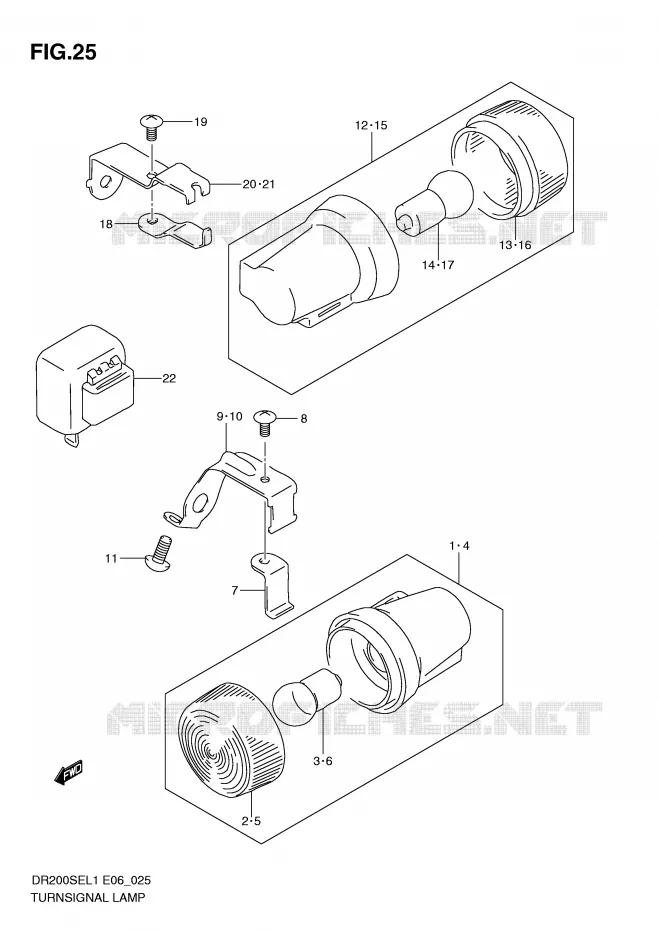

INDICATORS (DR200SEL1 E6) Suzuki MOTO 200 DR 2011 DR200SEL1(E6)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
LAMP ASSY, FRONT TURN RH

35601-15D31-000   3560115D31000

3560115D31000
Not available
2
LENS, TURN SIGNAL

35612-10D00-000   3561210D00000

3561210D00000
Not available
3
BULB (12V,15W)
BULB (12V, 15W)

09471-12162-000   0947112162000

0947112162000
Not available
4
LAMP ASSY, FRONT TURN LH

35602-15D31-000   3560215D31000

3560215D31000
Not available
5
LENS, TURN SIGNAL

35612-10D00-000   3561210D00000

3561210D00000
Not available
6
BULB (12V,15W)
BULB (12V, 15W)

09471-12162-000   0947112162000

0947112162000
Not available
7
PLATE, FRONT TURN BRACKET

35672-03D00-000   3567203D00000

3567203D00000
Not available
8
SCREW, FRONT TURN

02142-0406B-000   021420406B000

021420406B000
Not available
9
BRACKET, FRONT TURN RH

35671-03D10-000   3567103D10000

3567103D10000
Not available
10
BRACKET, FRONT TURN LH

35681-03D10-000   3568103D10000

3568103D10000
Not available
11
SCREW

02142-0508B-000   021420508B000

021420508B000

Unit Price

12
LAMP ASSY, REAR TURN RH

35603-15D91-000   3560315D91000

3560315D91000
Not available
13
LENS, TURN SIGNAL

35612-10D00-000   3561210D00000

3561210D00000
Not available
14
BULB (12V,15W)
BULB (12V, 15W)

09471-12162-000   0947112162000

0947112162000
Not available
15
LAMP ASSY, REAR TURN LH

35604-15D61-000   3560415D61000

3560415D61000
Not available
16
LENS, TURN SIGNAL

35612-10D00-000   3561210D00000

3561210D00000
Not available
17
BULB (12V,15W)
BULB (12V, 15W)

09471-12162-000   0947112162000

0947112162000
Not available
18
PLATE, REAR TURN BRACKET

35644-03D01-000   3564403D01000

3564403D01000
Not available
19
SCREW

02142-0406B-000   021420406B000

021420406B000
Not available
20
BRACKET, REAR TURN RH

35621-44A00-000   3562144A00000

3562144A00000
Not available
21
BRACKET, REAR TURN LH

35641-44A00-000   3564144A00000

3564144A00000
Not available
22
RELAY ASSY, TURN SIGNAL
RELAY ASSY, TURN SIGNAL

38610-10D00-000   3861010D00000

3861010D00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the INDICATORS (DR200SEL1 E6) of your Suzuki of DR. Let us know if you have any questions.
