SWINGARM FOR SUZUKI DR 200 2012

FRONT FORK

Item numbers

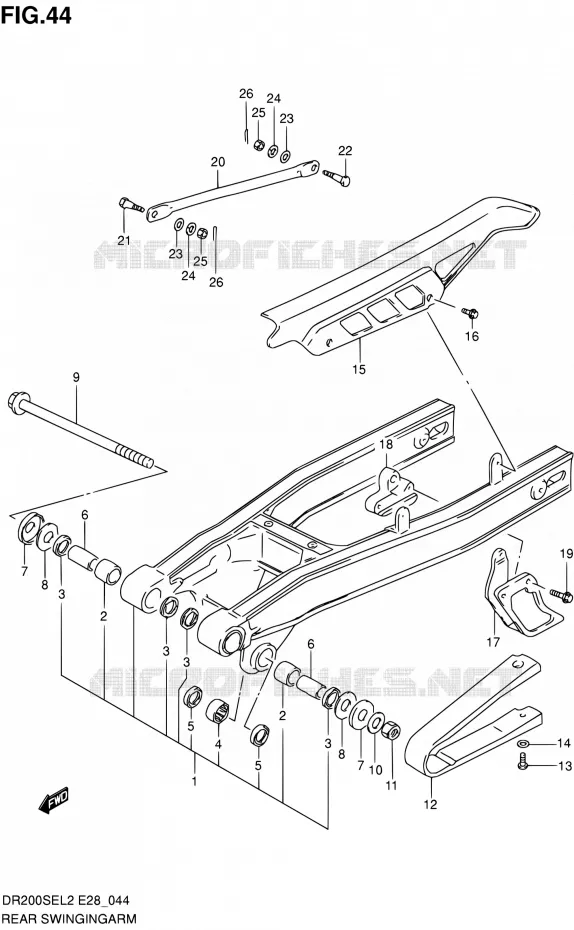

SWINGARM Suzuki MOTO 200 DR 2012 DR200SE L2 (E03,E28,E33)
1
2
2
3
3
3
3
4
5
5
6
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
25
26
26
1
DISCONTINUE
SWINGING ARM SET, REAR

61100-42840-000   6110042840000

6110042840000
Not available
2
BUSHING, RR SWGARM PIVOT
.BUSHING, PIVOT

61261-13700-000   6126113700000

6126113700000

Unit Price

3
KK SHAFT OIL SEAL<br />.OIL SEAL (20X27X5)
KK SHAFT OIL SEAL
.OIL SEAL (20X27X5)

09283-20031-000   0928320031000

0928320031000

Unit Price

4
BEARING
.BEARING (20X27X25)

09263-20053-000   0926320053000

0926320053000

Unit Price

5
SEAL, CUSHION LEVER OUT DUST
.SEAL, DUST (20X27X4)

62647-44A00-000   6264744A00000

6264744A00000

Unit Price

6
SPACER, RR SWGARM PVT
SPACER, PIVOT

61251-42A00-000   6125142A00000

6125142A00000

Unit Price

7
SEAL, DUST

61262-40400-000  

61262-40401-000
 6126240400000

Unit Price

8
WASHER
THRUST WASHER

08211-14322-000   0821114322000

0821114322000

Unit Price

9
SHAFT,RR SWINGINGARM PIVOT<br />SHAFT, PIVOT
SHAFT, RR SWINGINGARM PIVOT
SHAFT, PIVOT

61211-26B01-000   6121126B01000

6121126B01000

Unit Price

10
WASHER (14.5X24X2.3)

09160-14057-000   0916014057000

0916014057000

Unit Price

11
NUT 14MM<br />NUT
NUT 14MM
NUT

09159-14019-000   0915914019000

0915914019000

Unit Price

12
BUFFER, CHAIN TOUCH DEFENSE

61273-42A01-000   6127342A01000

6127342A01000

Unit Price

13
SCREW
SCREW

02142-0620B-000   021420620B000

021420620B000

Unit Price

14
LOCK WASHER

09169-06037-000  

09169-06011-000
 0916906037000

Unit Price

15
CASE, CHAIN

61311-01A03-000   6131101A03000

6131101A03000

Unit Price

16
BOLT
BOLT (6X10)

09116-06096-000   0911606096000

0911606096000

Unit Price

17
GUIDE, CHAIN

61341-13A10-000   6134113A10000

6134113A10000

Unit Price

18
RUBBER, CHAIN GUIDE

61345-42A00-000  

61345-42A01-000
 6134542A00000

Unit Price

19
BOLT
BOLT

01550-0620B-000   015500620B000

015500620B000

Unit Price

20
TORQUELINK, RR
TORQUE LINK, REAR (SILVER)

64311-42A00-13L   6431142A0013L

6431142A0013L

Unit Price

21
BOLT, TORQUE LINK, FRO
BOLT (8X28)

09111-08088-000   0911108088000

0911108088000

Unit Price

22
R TORQUE LINK BOLT<br />BOLT (8X26.5)
R TORQUE LINK BOLT
BOLT (8X26.5)

09111-08013-000   0911108013000

0911108013000

Unit Price

23
WASHER
WASHER

08322-0108B-000   083220108B000

083220108B000

Unit Price

24
WASHER, CHAIN ADJUSTE
LOCK WASHER

09162-08008-000   0916208008000

0916208008000

Unit Price

25
NUT 8MM<br />NUT
NUT 8MM
NUT

09140-08008-000   0914008008000

0914008008000

Unit Price

26
PIN<br />COTTER PIN
PIN
COTTER PIN

04111-2020A-000   041112020A000

041112020A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki of DR. Let us know if you have any questions.
