OIL PUMP

OIL COOLER FOR SUZUKI DR 200 2013

CLUTCH

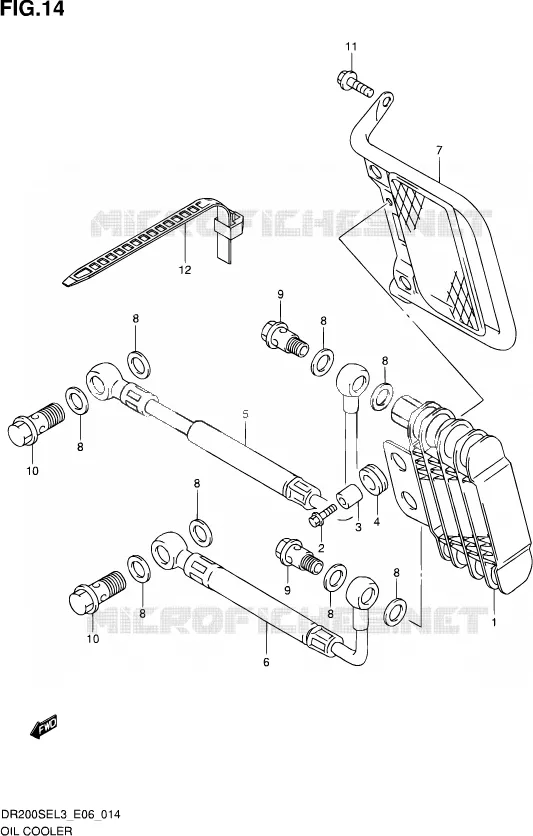

OIL COOLER Suzuki MOTO 200 DR 2013 DR200SE L3 (E24)
1
COOLER ASSY, OIL

16600-13E00-000   1660013E00000

1660013E00000

Unit Price

2
BOLT (6X20)

09116-06201-000   0911606201000

0911606201000

Unit Price

3
SPACER<br />SPACER (6.5X10X10)
SPACER
SPACER (6.5X10X10)

09180-06310-000   0918006310000

0918006310000

Unit Price

4
CUSHION
CUSHION

09320-10015-000   0932010015000

0932010015000

Unit Price

5
HOSE, OIL COOLER UPPER

16460-42A00-000   1646042A00000

1646042A00000
Not available
6
HOSE, OIL COOLER LOWER

16470-42A00-000   1647042A00000

1647042A00000
Not available
7
GUARD, OIL COOLER

16640-42A00-000   1664042A00000

1664042A00000

Unit Price

8
GASKET (14X20X1.5)

09168-14015-000  

0916814015000
Not available
9
BOLT, OIL HOSE UNION
UNION

09360-12012-000  

0936012012000
Not available
10
BOLT,14X27<br />UNION
BOLT, 14X27
UNION

09360-14012-000   0936014012000

0936014012000

Unit Price

11
BOLT
BOLT

01550-0620B-000   015500620B000

015500620B000

Unit Price

12
BAND,WIRING HARNESS<br />CLAMP (L:125)
BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL COOLER of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 200 DR 2013

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 200 DR 2013

Select your Suzuki 2013 model

200 DR 2013 DR200SE L3 (E24)

Suzuki DR

Displacement: 200 cc
Year: 2013
Model code DR200SE L3 (E24)
