STARTER MOTOR CLUTCH

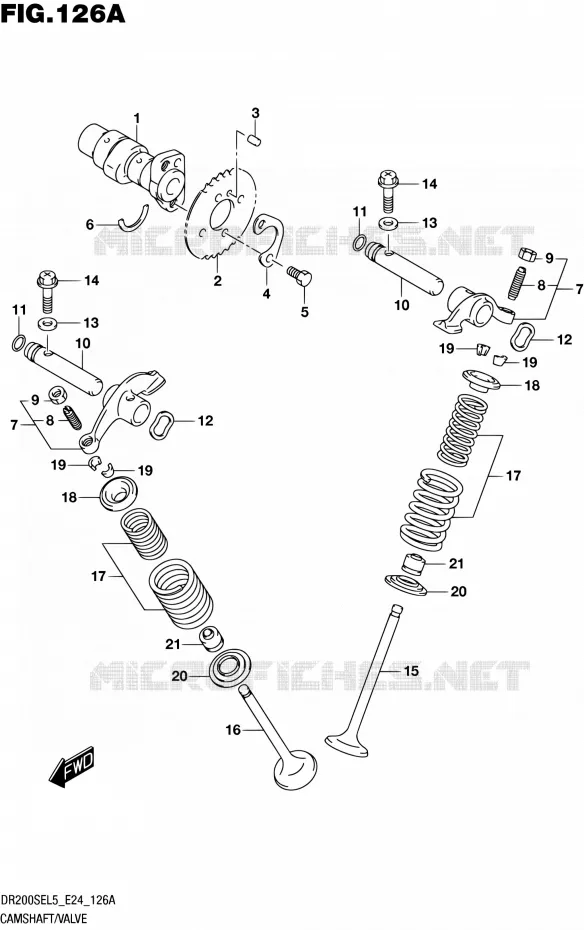

CAMSHAFT - VALVES FOR SUZUKI DR 200 2015

TIMING

Item numbers

CAMSHAFT

12711-42A10-000

12711-42A11-000

$166,97

Unit Price

SPROCKET, CAMSHAFT
SPROCKET, CAM SHAFT (NT:32)

12741-05201-000 1274105201000

$21,97

Unit Price

KNOCK PIN, SPROCKET
PIN (5X8)

09261-05005-000 0926105005000

$2,97

Unit Price

WASHER, SPROCKET

12747-05202-000 1274705202000

$3,97

Unit Price

BOLT (6X10.5)

09100-06166-000 0910006166000

$3,97

Unit Price

C-RING, CAM SHAFT
C RING

09390-22002-000 0939022002000

$3,97

Unit Price

ARM, VALVE ROCKER

12840-25C10-000 1284025C10000

$47,97

Unit Price

.SCREW, TAPPET ADJUSTING

12842-32411-000 1284232411000

$7,97

Unit Price

NUT, ADJUSTING SCREW
.NUT, TAPPET ADJUSTING

12843-32400-000 1284332400000

$4,97

Unit Price

SHAFT, VALVE ROCKET
SHAFT, VALVE ROCKER ARM

12861-05201-000 1286105201000

$19,97

Unit Price

O RING, ROCKER SHAFT
O RING (D:1.9, ID:8.6)

09280-09005-000 0928009005000

$5,97

Unit Price

WASHER, WAVE
WASHER (37.3X52X1)

09164-12021-000 0916412021000

$3,97

Unit Price

GASKET
GASKET (5.8X13X1.2)

09168-06023-000 0916806023000

Not available

SCREW

02162-0625A-000 021620625A000

$2,97

Unit Price

VALVE, INTAKE

12911-42A00-000 1291142A00000

$32,97

Unit Price

VALVE, EXHAUST

12912-42A00-000 1291242A00000

$61,97

Unit Price

SPRING SET, VALVE

12920-05210-000 1292005210000

$20,97

Unit Price

RETAINER, VALVE SPRING

12931-49201-000 1293149201000

$10,97

Unit Price

COTTER, VALVE

12932-24400-000 1293224400000

$2,97

Unit Price

SEAT, VALVE SPRING

12933-49201-000 1293349201000

$8,97

Unit Price

SEAL, OIL(5.5X11X8.2)
OIL SEAL (5.5X11X8.2)

09289-05015-000 0928905015000

$8,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAMSHAFT - VALVES of your Suzuki of DR. Let us know if you have any questions.
