CYLINDER

CASING FOR SUZUKI DR 200 2017

CASING

Item numbers

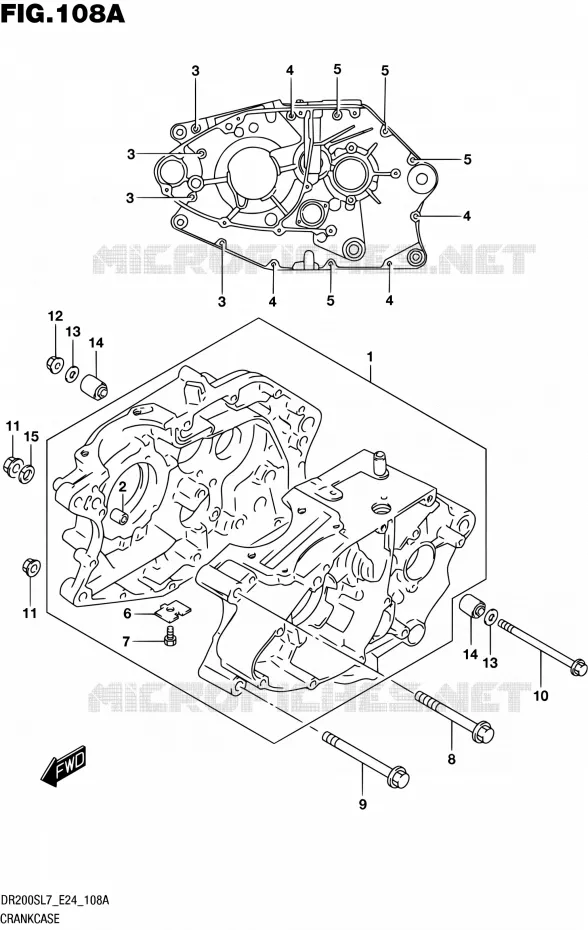

CASING Suzuki MOTO 200 DR 2017 DR200S L7 (E24)
1
2
3
3
3
3
4
4
4
4
5
5
5
5
6
7
8
9
10
11
11
12
13
13
14
14
15
1
CRANKCASE ASSY

11300-42A80-000   1130042A80000

1130042A80000

Unit Price

2
PIN<br />.PIN, KNOCK
PIN
.PIN, KNOCK

04211-13189-000   0421113189000

0421113189000

Unit Price

3
.BOLT

01547-0655A-000   015470655A000

015470655A000

Unit Price

4
BOLT
BOLT

01547-0660A-000  

01547-0660B-000
 015470660A000

Unit Price

5
BOLT,6X75<br />.BOLT
BOLT, 6X75
.BOLT

01547-06757-000   0154706757000

0154706757000

Unit Price

6
.PLATE, OIL GALLERY PLUG

11319-05200-000   1131905200000

1131905200000

Unit Price

7
BOLT

01500-0610A-000  

01500-0610B-000
 015000610A000

Unit Price

8
BOLT (10X80)

09103-10370-000   0910310370000

0910310370000

Unit Price

9
BOLT (10X90)

09103-10374-000   0910310374000

0910310374000

Unit Price

10
BOLT (8X115)

09103-08138-000   0910308138000

0910308138000

Unit Price

11
NUT
NUT

09159-10115-000   0915910115000

0915910115000

Unit Price

12
NUT
NUT

08319-3108A-000   083193108A000

083193108A000

Unit Price

13
WASHER

08212-08182-000   0821208182000

0821208182000

Unit Price

14
BUSH
BUSH (8.4X18X16)

09319-08032-000   0931908032000

0931908032000

Unit Price

15
WASHER, LOCK

08321-0110A-000  

08321-0110B-000
 083210110A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki DR 200 S of DR. Let us know if you have any questions.
