SHOCK ABSORBER LINKAGE

REAR WHEEL FOR SUZUKI DR 200 2017

OPTIONS

Item numbers

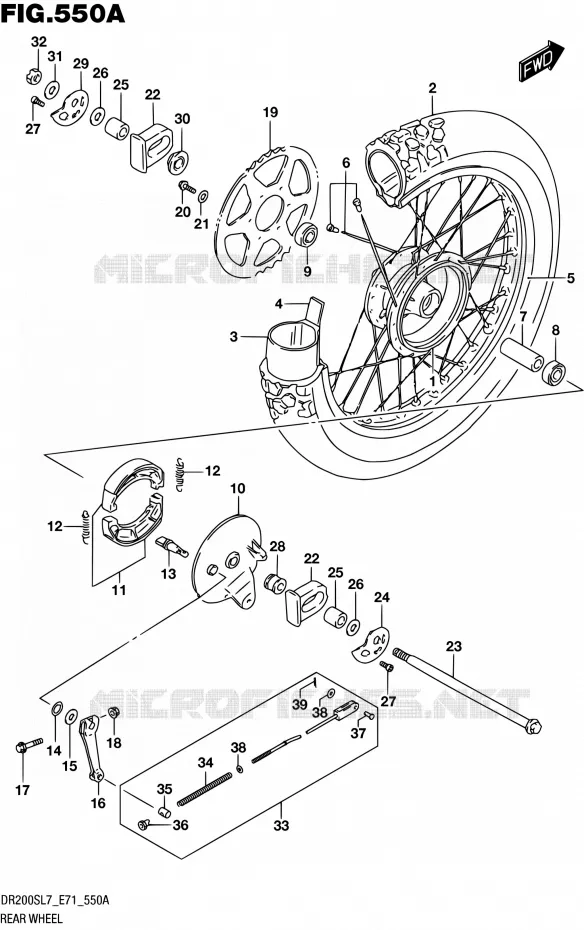

REAR WHEEL Suzuki MOTO 200 DR 2017 DR200S L7 (E71)
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
25
26
26
27
27
28
29
30
31
32
33
34
35
36
37
38
38
39
1
HUB, RR WHEEL
HUB, REAR WHEEL

64110-44A10-000   6411044A10000

6411044A10000

Unit Price

2
65110-42AA1
TIRE, REAR (100/90-18M/C 56P)

65110-42AA0-000   6511042AA0000

6511042AA0000
Not available
3
TUBE ASSY, WHEEL INNER

65200-42AA1-000   6520042AA1000

6520042AA1000

Unit Price

4
PROTECTOR, WHL INR TUBE
PROTECTOR, WHEEL INNER TUBE

65261-29231-000   6526129231000

6526129231000

Unit Price

5
RIM, RR WHEEL(18X2.15 AL)
RIM, REAR WHEEL (18X2.15)

65311-42AA0-000   6531142AA0000

6531142AA0000

Unit Price

6
SPOKE ASSY, RR WHEEL
SPOKE ASSY, REAR WHEEL

65320-42AA0-000   6532042AA0000

6532042AA0000

Unit Price

7
SPACER (15.3X21.7X107.5)

09180-15013-000   0918015013000

0918015013000

Unit Price

8
B. BEARING 15X35X11<br />BEARING
B. BEARING 15X35X11
BEARING

08143-62027-000   0814362027000

0814362027000

Unit Price

9
B. BEARING 15X42X13
B. BEARING 15X42X13

08123-63027-000  

08123-6302B-000
 0812363027000

Unit Price

10
PANEL, RR BRAKE ANCHOR
PANEL, REAR BRAKE ANCHOR

64210-44A00-000   6421044A00000

6421044A00000

Unit Price

11
SHOE SET, BRAKE

54400-07870-000   5440007870000

5440007870000

Unit Price

12
SPRING
SPRING

09443-07001-000   0944307001000

0944307001000

Unit Price

13
CAM, BRAKE

54441-29305-000   5444129305000

5444129305000

Unit Price

14
O RING,02.5,ID:13.8<br />O RING (D:2.5, ID:13.8)
O RING, 02.5, ID:13.8
O RING (D:2.5, ID:13.8)

09280-14011-000   0928014011000

0928014011000

Unit Price

15
WASHER
WASHER (14.5X22X1.6)

09160-14055-000   0916014055000

0916014055000

Unit Price

16
LEVER, RR BRAKE CAM
LEVER, REAR BRAKE CAM

64451-30501-000   6445130501000

6445130501000

Unit Price

17
BOLT
BOLT

01550-0640B-000   015500640B000

015500640B000

Unit Price

18
NUT
NUT

08316-1006B-000   083161006B000

083161006B000

Unit Price

19
SPROCKET, RR(NT:45)
SPROCKET, REAR (NT:45)

64511-42A01-000   6451142A01000

6451142A01000

Unit Price

20
BOLT (8X30)

09103-08048-000   0910308048000

0910308048000

Unit Price

21
WASHER
WASHER

09164-08020-000   0916408020000

0916408020000

Unit Price

22
61470-42A01
CAP, REAR SWINGING ARM

61470-42A00-000   6147042A00000

6147042A00000
Not available
23
AXLE, RR
AXLE, REAR

64711-44A11-000   6471144A11000

6471144A11000

Unit Price

24
ADJUSTER, CHAIN, R
ADJUSTER, CHAIN RH

61411-42A00-000   6141142A00000

6141142A00000

Unit Price

25
SPACER, CHAIN ADJUSTER

61413-42A00-000   6141342A00000

6141342A00000

Unit Price

26
WASHER (15.5X30X3.2)

09160-15039-000   0916015039000

0916015039000

Unit Price

27
BOLT, CHAIN ADJUSTER

61431-42A10-000   6143142A10000

6143142A10000

Unit Price

28
SPACER, RR AXLE, R
SPACER, AXLE RH

64741-42A00-000   6474142A00000

6474142A00000

Unit Price

29
ADJUSTER, CHAIN, L
ADJUSTER, CHAIN LH

61421-42A00-000   6142142A00000

6142142A00000

Unit Price

30
SPACER, RR AXLE, L
SPACER, AXLE LH

64750-42A00-000   6475042A00000

6475042A00000

Unit Price

31
WASHER, 14.5X30X
WASHER (14.5X30X3.2)

09160-14062-000   0916014062000

0916014062000

Unit Price

32
NUT
NUT

08319-3114A-000   083193114A000

083193114A000

Unit Price

33
ROD ASSY, RR BRAKE
ROD ASSY, REAR BRAKE

43300-42A02-000   4330042A02000

4330042A02000

Unit Price

34
BRK ROD ADJ SPRING<br />.SPRING
BRK ROD ADJ SPRING
.SPRING

09440-09004-000   0944009004000

0944009004000

Unit Price

35
.PIN (13X18)
.PIN (13X18)

09209-13018-000   0920913018000

0920913018000

Unit Price

36
.NUT
.NUT

09150-06010-000  

0915006010000
Not available
37
FR BRAKE CABLE PIN
.PIN (10X16)

09200-06013-000   0920006013000

0920006013000

Unit Price

38
.WASHER
.WASHER

08322-0106B-000   083220106B000

083220106B000

Unit Price

39
PIN<br />.PIN, COTTER
PIN
.PIN, COTTER

04111-2020A-000   041112020A000

041112020A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR WHEEL of your Suzuki DR 200 S of DR. Let us know if you have any questions.
