Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

LABEL DRAWING NOT SHOWN

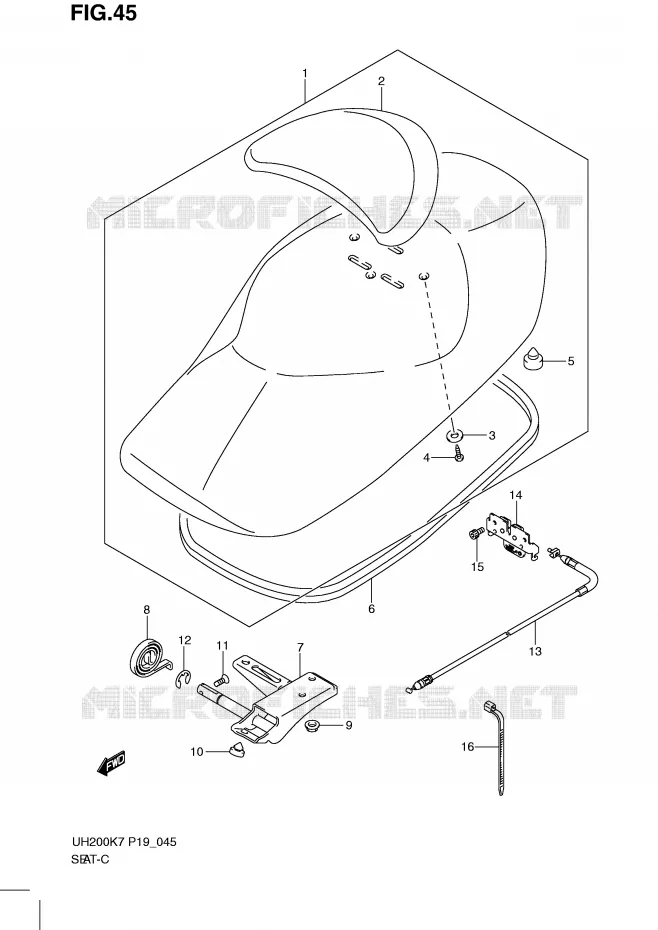

SEAT FOR SUZUKI BURGMAN 200 2008

BACKREST (MODEL K7) REFER TO FIG. 46A (G- 3) FOR MODEL K8

Item numbers
SEAT Suzuki SCOOTER 200 BURGMAN 2008 UH200K8(P19)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
SEAT ASSY

45100-03H00-4HS   4510003H004HS

4510003H004HS
Not available
2
BACKREST, SEAT

45300-03H00-000   4530003H00000

4530003H00000
Not available
3
CUSHION, BACKREST

45149-14F00-000   4514914F00000

4514914F00000
Not available
4
SCREW<br />SCREW, BACKREST
SCREW
SCREW, BACKREST

03541-0516B-000   035410516B000

035410516B000

Unit Price

5
CUSHION, SEAT MOUNT RR
CUSHION, SEAT MOUNT REAR

45148-20G00-000   4514820G00000

4514820G00000

Unit Price

6
MOLDING, SEAT

45211-03H00-000   4521103H00000

4521103H00000
Not available
7
BRACKET, SEAT HINGE UPPER

45250-49F00-000   4525049F00000

4525049F00000
Not available
8
SPRING, SEAT HINGE
SPRING

45275-03H00-000   4527503H00000

4527503H00000

Unit Price

9
NUT

D8320-1006A-000   D83201006A000

D83201006A000
Not available
10
STOPPER, SEAT HINGE

09321-C10-002J000   09321C10002J000

09321C10002J000
Not available
11
SCREW

D2116-0512B-000   D21160512B000

D21160512B000
Not available
12
E RING

D8332-1112A-000   D83321112A000

D83321112A000
Not available
13
CABLE, SEAT LOCK

45280-07E00-000   4528007E00000

4528007E00000
Not available
14
LOCK ASSY, SEAT NO.1

45700-30F00-000   4570030F00000

4570030F00000
Not available
15
BOLT

D7107-0612B-000   D71070612B000

D71070612B000
Not available
16
CLAMP, (UNEX 2244-0)

D9448-01885-000   D944801885000

D944801885000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT of your Suzuki BURGMAN 200 of BURGMAN. Let us know if you have any questions.
