MUFFLER

OIL PUMP FOR SUZUKI BURGMAN 200 2014

FUEL PUMP

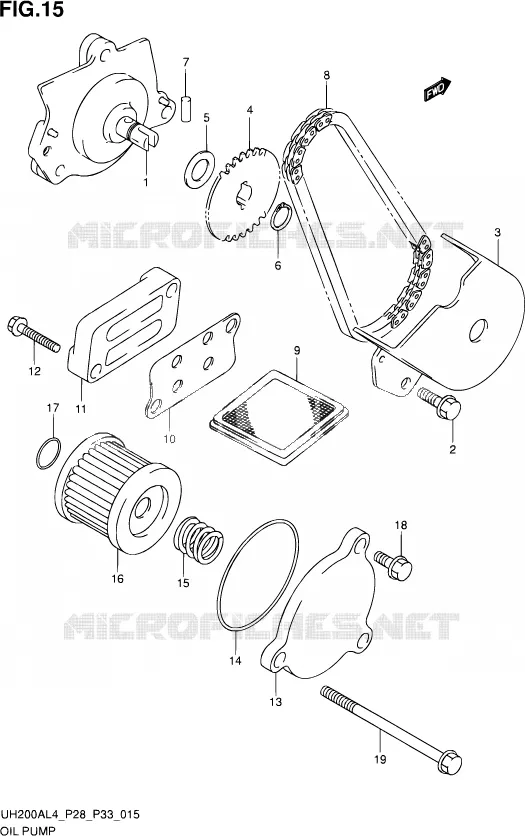

OIL PUMP Suzuki SCOOTER 200 BURGMAN 2014 UH200A L4 (P03,P28,P33)
1
PUMP ASSY, OIL
PUMP ASSY, ENGINE OIL

16400-49F00-000   1640049F00000

1640049F00000

Unit Price

2
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

3
COVER, OIL PUMP

16422-03H10-000   1642203H10000

1642203H10000

Unit Price

4
SPROCKET, OIL PUMP DRIVEN
SPROCKET, OIL PUMP DRIVEN (NT:25)

16331-49F00-000   1633149F00000

1633149F00000

Unit Price

5
SHIM (10X18X0.5)
SHIM (10X18X0.5)

09181-10158-000   0918110158000

0918110158000

Unit Price

6
CIRCLIP
CIRCLIP

08331-31109-000   0833131109000

0833131109000

Unit Price

7
GR SHIFT CAM DR PIN<br />PIN (4X15.8)
GR SHIFT CAM DR PIN
PIN (4X15.8)

09261-04009-000   0926104009000

0926104009000

Unit Price

8
CHAIN, OIL PUMP DRIVE
CHAIN ASSY, OIL PUMP DRIVE (82RH2005-56M)

16310-14F00-000   1631014F00000

1631014F00000

Unit Price

9
STRAINER, ENGINE OIL

16520-09402-000  

16520-09403-000
 1652009402000

Unit Price

10
GASKET, OIL STRAINER CAP

16524-46G00-000   1652446G00000

1652446G00000

Unit Price

11
CAP, OIL STRAINER

16523-20E00-000   1652320E00000

1652320E00000

Unit Price

12
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

13
CAP, OIL FILTER

16512-47E00-000   1651247E00000

1651247E00000

Unit Price

14
O-RING, OIL FLT CAP
O RING (D:2.4, ID:52.6)

09280-54001-000   0928054001000

0928054001000

Unit Price

15
SPRING
SPRING

09440-18002-000   0944018002000

0944018002000

Unit Price

16
FILTER ASSY, ENG OIL
FILTER, ENGINE OIL

16510-45H10-000  

1651045H10000
Not available
17
O RING (D:1.9,ID:12.6)
O RING (D:1.9, ID:12.6)

09280-12009-000   0928012009000

0928012009000

Unit Price

18
BOLT

01547-0616A-000   015470616A000

015470616A000

Unit Price

19
BOLT

01547-0665A-000   015470665A000

015470665A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki BURGMAN 200 of BURGMAN. Let us know if you have any questions.
