Parts catalogue

Parts diagram

SWINGARM

FRONT FORK FOR SUZUKI BURGMAN 200 2018

STEERING COLUMN

Item numbers

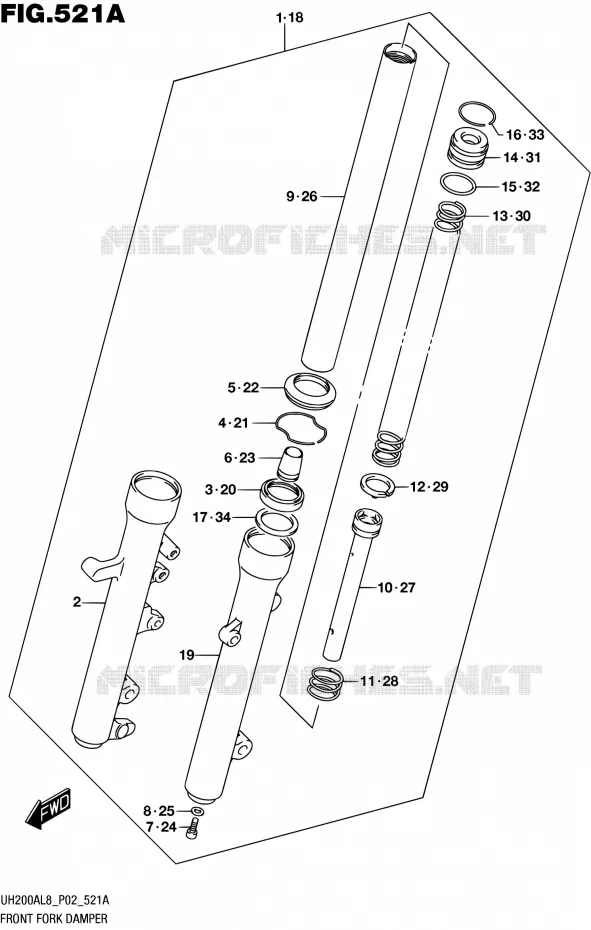

FRONT FORK Suzuki SCOOTER 200 BURGMAN 2018 UH200AL8 P02
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
DAMPER ASSY, FRONT FORK RH

51103-12J50-000   5110312J50000

5110312J50000

Unit Price

2
.TUBE, OUTER RH

51131-12J50-000   5113112J50000

5113112J50000

Unit Price

3
SEAL, OIL
.OIL SEAL

51153-26B00-000   5115326B00000

5115326B00000

Unit Price

4
RING, OIL SEAL STOPPER

51156-33130-000  

51156-02B00-000
 5115633130000

Unit Price

5
.SEAL, DUST

51571-26B00-000   5157126B00000

5157126B00000

Unit Price

6
.PIECE, OIL LOCK

51195-12J40-000   5119512J40000

5119512J40000

Unit Price

7
BOLT(8X27)<br />.BOLT
BOLT(8X27)
.BOLT

51147-48130-000   5114748130000

5114748130000

Unit Price

8
GASKET

51148-31030-000  

51148-36011-000
 5114831030000

Unit Price

9
.TUBE, INNER

51110-12J40-000   5111012J40000

5111012J40000

Unit Price

10
.PIPE SEAT

51194-12J40-000   5119412J40000

5119412J40000

Unit Price

11
SPRING, REBOUND ##
.SPRING, REBOUND

51177-15500-000   5117715500000

5117715500000

Unit Price

12
.RING, PISTON

51196-20H00-000   5119620H00000

5119620H00000

Unit Price

13
SPRING, FR
.SPRING, FRONT

51171-12J40-000   5117112J40000

5117112J40000

Unit Price

14
CUP
.CAP

51175-12J40-000   5117512J40000

5117512J40000

Unit Price

15
.O RING

51117-20H00-000   5111720H00000

5111720H00000

Unit Price

16
.RING, SNAP

51156-20H00-000   5115620H00000

5115620H00000

Unit Price

17
.SEAL, SPACER

51168-02B00-000   5116802B00000

5116802B00000

Unit Price

18
DAMPER ASSY, FRONT FORK LH

51104-12J40-000   5110412J40000

5110412J40000

Unit Price

19
.TUBE, OUTER LH

51141-12J40-000   5114112J40000

5114112J40000

Unit Price

20
SEAL, OIL
.OIL SEAL

51153-26B00-000   5115326B00000

5115326B00000

Unit Price

21
RING, OIL SEAL STOPPER

51156-33130-000  

51156-02B00-000
 5115633130000

Unit Price

22
.SEAL, DUST

51571-26B00-000   5157126B00000

5157126B00000

Unit Price

23
.PIECE, OIL LOCK

51195-12J40-000   5119512J40000

5119512J40000

Unit Price

24
BOLT(8X27)<br />.BOLT
BOLT(8X27)
.BOLT

51147-48130-000   5114748130000

5114748130000

Unit Price

25
GASKET

51148-31030-000  

51148-36011-000
 5114831030000

Unit Price

26
.TUBE, INNER

51110-12J40-000   5111012J40000

5111012J40000

Unit Price

27
PIPE SEAT
.CYLINDER

51194-12J40-000   5119412J40000

5119412J40000

Unit Price

28
SPRING, REBOUND ##
.SPRING, REBOUND

51177-15500-000   5117715500000

5117715500000

Unit Price

29
.RING, PISTON

51196-20H00-000   5119620H00000

5119620H00000

Unit Price

30
SPRING, FR
.SPRING, FRONT

51171-12J40-000   5117112J40000

5117112J40000

Unit Price

31
CUP
.CAP

51175-12J40-000   5117512J40000

5117512J40000

Unit Price

32
.O RING

51117-20H00-000   5111720H00000

5111720H00000

Unit Price

33
.RING, SNAP

51156-20H00-000   5115620H00000

5115620H00000

Unit Price

34
.SEAL, SPACER

51168-02B00-000   5116802B00000

5116802B00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki BURGMAN 200 ABS of BURGMAN. Let us know if you have any questions.

Genuine parts for Suzuki 200 BURGMAN 2018

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 200 BURGMAN 2018

Select your Suzuki 2018 model

200 BURGMAN 2018 UH200AL8 P02

BURGMAN 200 ABS

Suzuki BURGMAN

Displacement: 200 cc
Year: 2018
Model code UH200AL8 P02
Color: Metallic Matt Black No.2 (YKV) / Brilliant White (YUH) / Metallic Mat Platinum Silver (ZRP)
