Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

RADIATOR

RADIATOR HOSE FOR SUZUKI BURGMAN 200 2019

TRANSMISSION (1)

Item numbers

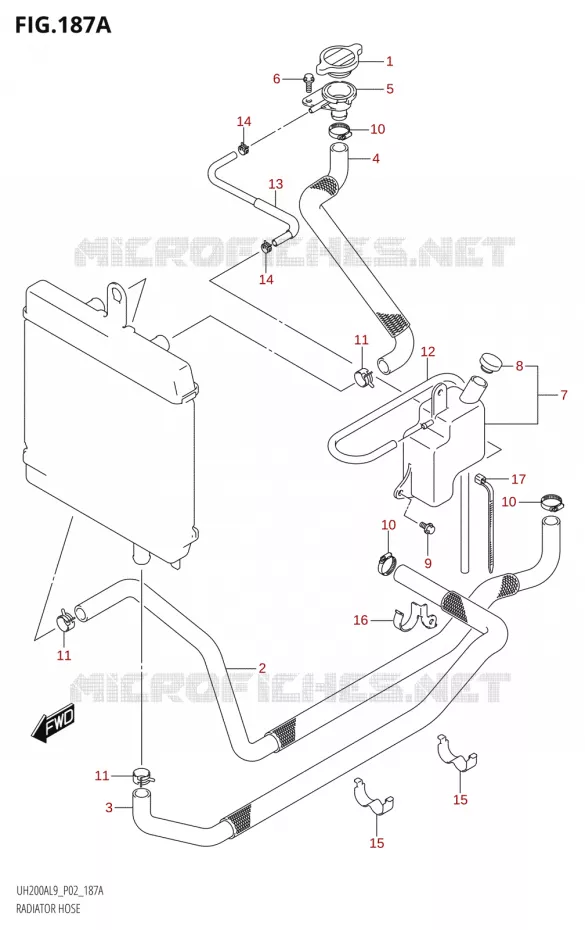

RADIATOR HOSE Suzuki SCOOTER 200 BURGMAN 2019 UH200A L9 (P02)
1
2
3
4
5
6
7
8
9
10
10
10
11
11
11
12
13
14
14
15
15
16
17
1
CAP, RADIATOR (1.1)

17730-14G00-000   1773014G00000

1773014G00000

Unit Price

2
HOSE, RADIATOR INLET

17851-03H20-000   1785103H20000

1785103H20000

Unit Price

3
HOSE, RADIATOR OUTLET

17852-03H20-000   1785203H20000

1785203H20000

Unit Price

4
HOSE, CONDUCTION

17855-03H20-000   1785503H20000

1785503H20000

Unit Price

5
CONDUCTION, RADIATOR

17791-12J00-000   1779112J00000

1779112J00000

Unit Price

6
BOLT

01550-0616A-000   015500616A000

015500616A000

Unit Price

7
TANK ASSY, RESERVOIR

17910-12J00-000   1791012J00000

1791012J00000

Unit Price

8
.CAP,RESERVOIR TANK
.CAP, RESERVOIR TANK

17932-12C00-000   1793212C00000

1793212C00000

Unit Price

9
BOLT (6X12)
BOLT (6X12)

09103-06285-000   0910306285000

0910306285000

Unit Price

10
CLAMP

09402-27001-000  

09402-28513-000
 0940227001000

Unit Price

11
CLIP

09401-21411-000   0940121411000

0940121411000

Unit Price

12
HOSE, RSVR TANK OVFL
HOSE, RESERVOIR TANK OVERFLOW

17982-03H20-000   1798203H20000

1798203H20000

Unit Price

13
HOSE, RSVR TANK INLET
HOSE, RESERVOIR TANK INLET

17981-03H10-000   1798103H10000

1798103H10000

Unit Price

14
CLIP
CLIP

09401-08411-000  

0940108411000
Not available
15
PLATE, WATER HOSE CLAMP

17859-03H00-000   1785903H00000

1785903H00000

Unit Price

16
CLAMP, RADIATOR HOSE
CLAMP

17858-12J00-000   1785812J00000

1785812J00000

Unit Price

17
CLAMP

09407-19401-000  

09407-22403-000
 0940719401000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR HOSE of your Suzuki BURGMAN 200 ABS of BURGMAN. Let us know if you have any questions.

Genuine parts for Suzuki 200 BURGMAN 2019

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 200 BURGMAN 2019

Select your Suzuki 2019 model

200 BURGMAN 2019 UH200A L9 (P02)

BURGMAN 200 ABS

Suzuki BURGMAN

Displacement: 200 cc
Year: 2019
Model code UH200A L9 (P02)
