TAIL LIGHT

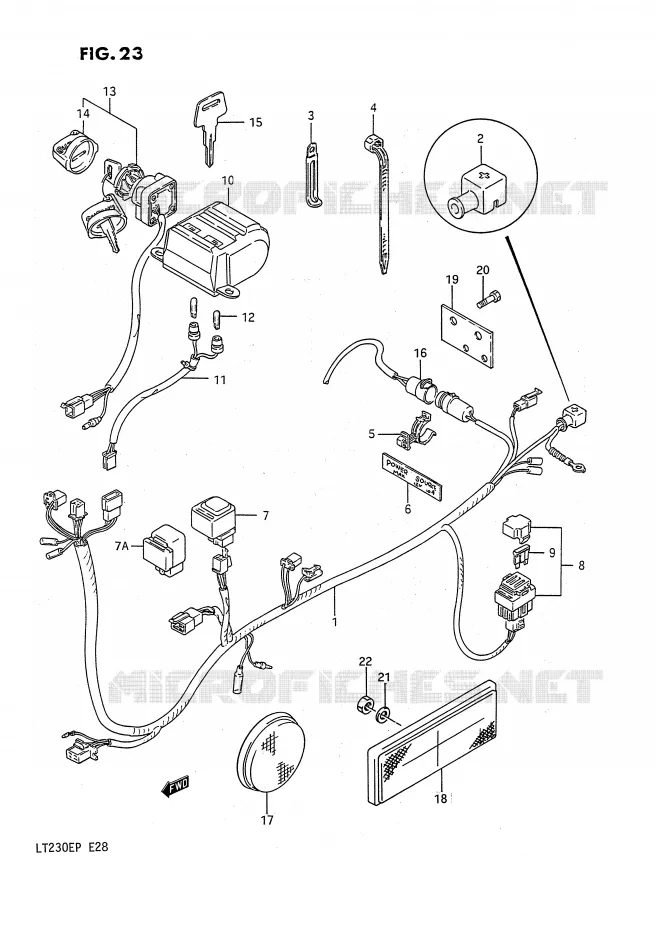

WIRING HARNESS FOR SUZUKI QUADSPORT 230 1993

RIGHT SWITCH - HANDGRIP (MODEL H / J / K / L) REFER TO FIG.37A(F-13) FOR MODEL M/N/P

DISCONTINUE

36610-35B01-000

Not available

CAP, BATTERY PLUS
CAP, BATTERY (+) TERMINAL

33624-35B00-000 3362435B00000

$12,97

Unit Price

CLAMP(L:65)

09404-06401-000

09404-06039-000

$3,97

Unit Price

CLAMP(L:65)

09404-06422-000

09404-06429-000

$3,97

Unit Price

CLAMP, L:120 T:1.0

09404-08402-000

09404-08405-000

$4,97

Unit Price

BAND, WIRING HARNESS
CLAMP

09407-14403-000 0940714403000

$3,97

Unit Price

CLAMP, WIRING HARNESS
CLAMP (L:185)

09407-18402-000 0940718402000

$3,97

Unit Price

CLAMP
CLAMP (L:235)

09407-25401-000 0940725401000

$7,97

Unit Price

CLAMP, POWER SOURCE COUPLER

09403-16402-000 0940316402000

Not available

LABEL, POWER SOURCE

38852-18B00-000 3885218B00000

Not available

LABEL, POWER SOURCE

38852-35B10-000 3885235B10000

Not available

RELAY ASSY

38730-24500-000

38740-24X50-000

$45,97

Unit Price

RELAY ASSY

38640-06B10-000

38740-24X50-000

$45,97

Unit Price

BOX ASSY, FUSE
FUSE CASE ASSY

36740-04701-000 3674004701000

$33,97

Unit Price

FUSE (15A)

09481-15101-000 0948115101000

$2,97

Unit Price

36380-35B0V
BOX ASSY, PILOT LAMP

36380-35B00-000 3638035B00000

Not available

DISCONTINUED

36394-35B00-000 3639435B00000

Not available

BULB(12V27/8W)
BULB (13.5V, 2W)

09471-12118-000

Not available

SWITCH ASSY, IGNITION

37110-35B01-000

37110-02C01-000

$163,97

Unit Price

MASCOT, KEY

37142-19B00-000

37142-19B01-000

$10,97

Unit Price

KEY, BLANK(TYPE:C)
KEY, BLANK TYPE C (A-68)

37146-19B00-000 3714619B00000

$12,97

Unit Price

KEY, BLANK(TYPE:D)
KEY, BLANK TYPE D (A-69)

37146-19B10-000 3714619B10000

$12,97

Unit Price

PLUG ASSY, POWER SOURCE

39602-18A00-000 3960218A00000

$50,97

Unit Price

REFLECTOR, REFLEX FR
REFLECTOR, FRONT SIDE

35950-14A00-000 3595014A00000

$26,97

Unit Price

DISCONTINUE
REFLECTOR, REAR

35970-00A10-000 3597000A10000

Not available

BRACKET, REAR REFLECTOR

35974-35B00-000 3597435B00000

Not available

BOLT(6X8)

09100-06092-000

09100-06157-000

$4,97

Unit Price

WASHER, LOCK

08321-21055-000

08321-01053-000

$2,97

Unit Price

NUT

08310-11055-000 0831011055000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
