Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TRANSMISSION

GEAR SHIFTING ASSY FOR SUZUKI DR-Z 250 2001

KICK STARTER

Item numbers

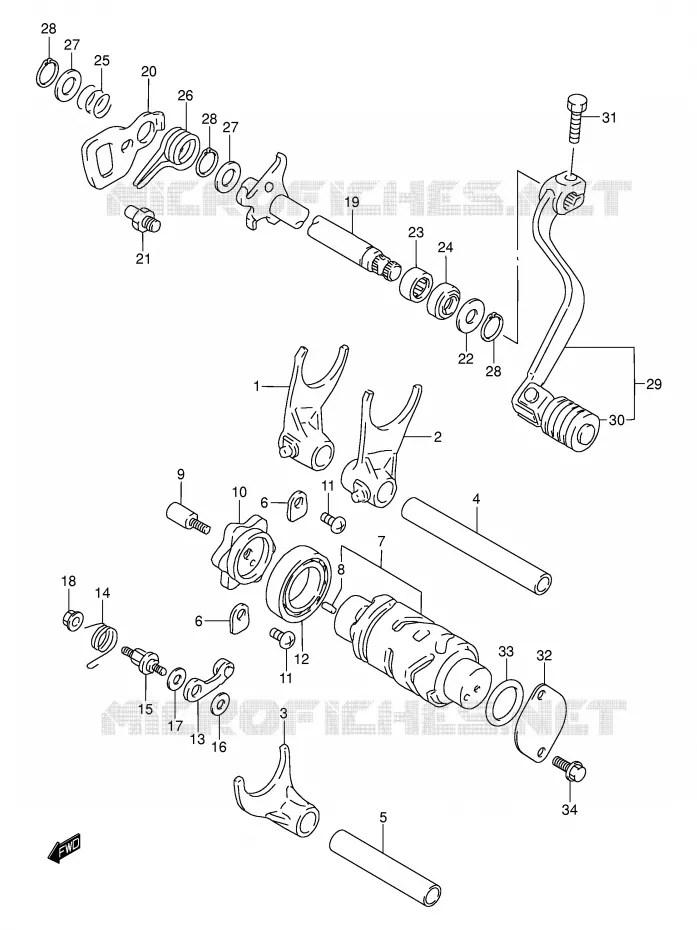

GEAR SHIFTING ASSY Suzuki MOTO 250 DR-Z 2001 DR-Z250K1(E3/E28)
1
2
3
4
5
6
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
28
28
29
30
31
32
33
34
1
FORK, GEAR SHIFT NO.1

25211-14D02-000   2521114D02000

2521114D02000

Unit Price

2
FORK, GEAR SHIFT NO.2

25221-14D03-000   2522114D03000

2522114D03000

Unit Price

3
FORK, GEAR SHIFT NO.3

25231-14D02-000   2523114D02000

2523114D02000

Unit Price

4
SHAFT, GEAR SHIFT FORK(L:95)

25411-27C01-000  

25411-37F20-000
 2541127C01000

Unit Price

5
SHAFT, GEAR SHIFT FORK (L:70)

25421-14D00-000   2542114D00000

2542114D00000

Unit Price

6
RETAINER<br />RETAINER, SHIFT CAM BEARING
RETAINER
RETAINER, SHIFT CAM BEARING

24741-21A00-000   2474121A00000

2474121A00000

Unit Price

7
CAM, GEAR SHIFT

25310-14D10-000   2531014D10000

2531014D10000

Unit Price

8
PIN<br />KNOCK PIN
PIN
KNOCK PIN

04221-04089-000   0422104089000

0422104089000

Unit Price

9
PIN, SHIFT CAM DRIVEN GEAR
PIN, SHIFT CAM DRIVEN GEAR

25312-12C00-000   2531212C00000

2531212C00000

Unit Price

10
PLATE, GEAR SHIFT CAM
PLATE, GEAR SHIFT CAM

25381-13E10-000   2538113E10000

2538113E10000

Unit Price

11
BOLT, 6X12
SCREW, SHIFT CAM (6X12)

09125-06110-000   0912506110000

0912506110000

Unit Price

12
BEARING, RH<br />BEARING
BEARING, RH
BEARING

08113-69050-000   0811369050000

0811369050000

Unit Price

13
STOPPER, GEAR SHIFT CAM
STOPPER, GEAR SHIFT CAM

25350-24B00-000   2535024B00000

2535024B00000

Unit Price

14
SPRING,SHIFT CAM STO<br />SPRING, SHIFT CAM STOPPER
SPRING, SHIFT CAM STO
SPRING, SHIFT CAM STOPPER

25355-13E00-000   2535513E00000

2535513E00000

Unit Price

15
SUPPORT, CAM STOPPER ARM
SUPPORT, CAM STOPPER ARM

25356-12C00-000   2535612C00000

2535612C00000

Unit Price

16
THRUST WASHER<br />WASHER
THRUST WASHER
WASHER

08211-06141-000   0821106141000

0821106141000

Unit Price

17
WASHER

08212-06203-000   0821206203000

0821206203000
Not available
18
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

19
SHAFT, GEAR SHIFT

25510-13E01-000   2551013E01000

2551013E01000

Unit Price

20
PLATE, GEAR SHIFT CAM DRIVE
PLATE, GEAR SHIFT CAM DRIVE

25512-13E11-000   2551213E11000

2551213E11000

Unit Price

21
STOPPER,GEAR SHIFT ARM<br />STOPPER, RETURN SPRING
STOPPER, GEAR SHIFT ARM
STOPPER, RETURN SPRING

25671-01011-000   2567101011000

2567101011000

Unit Price

22
WASHER, 14.5X30X

09160-14033-000  

09160-14062-000
 0916014033000

Unit Price

23
BEARING, RR CUSHION<br />BEARING (14X20X12)
BEARING, RR CUSHION
BEARING (14X20X12)

09263-14027-000   0926314027000

0926314027000

Unit Price

24
SEAL,OIL(14X22X6)<br />OIL SEAL (14X22X6)
SEAL, OIL(14X22X6)
OIL SEAL (14X22X6)

09283-14006-000   0928314006000

0928314006000

Unit Price

25
SPRING
SPRING

09440-17009-000   0944017009000

0944017009000

Unit Price

26
SPRING
SPRING

09444-20001-000   0944420001000

0944420001000

Unit Price

27
WASHER,GEAR SHIFT SH<br />WASHER (14X22X1.0)
WASHER, GEAR SHIFT SH
WASHER (14X22X1.0)

09181-14167-000   0918114167000

0918114167000

Unit Price

28
CIRCLIP

08331-31146-000  

08331-3114A-000
 0833131146000

Unit Price

29
LEVER ASSY, GEAR SHIFT

25600-13E10-000   2560013E10000

2560013E10000

Unit Price

30
RUBBER, GEAR SHIFT PEDAL

25652-03D00-000   2565203D00000

2565203D00000

Unit Price

31
BOLT

01500-06203-000  

01500-0620A-000
 0150006203000

Unit Price

32
CAP, GEAR SHIFT CAM PIVOT
CAP, NEUTRAL S/W HOLE

11451-46000-000   1145146000000

1145146000000

Unit Price

33
O RING<br />O RING (D:2.4,ID:26.2)
O RING
O RING (D:2.4, ID:26.2)

09280-26005-000   0928026005000

0928026005000
Not available
34
BOLT

01547-05103-000  

01547-0510B-000
 0154705103000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 250 DR-Z 2001
