CRANKCASE COVER

CRANKSHAFT FOR SUZUKI DR-Z 250 2003

STARTER MOTOR CLUTCH

Item numbers

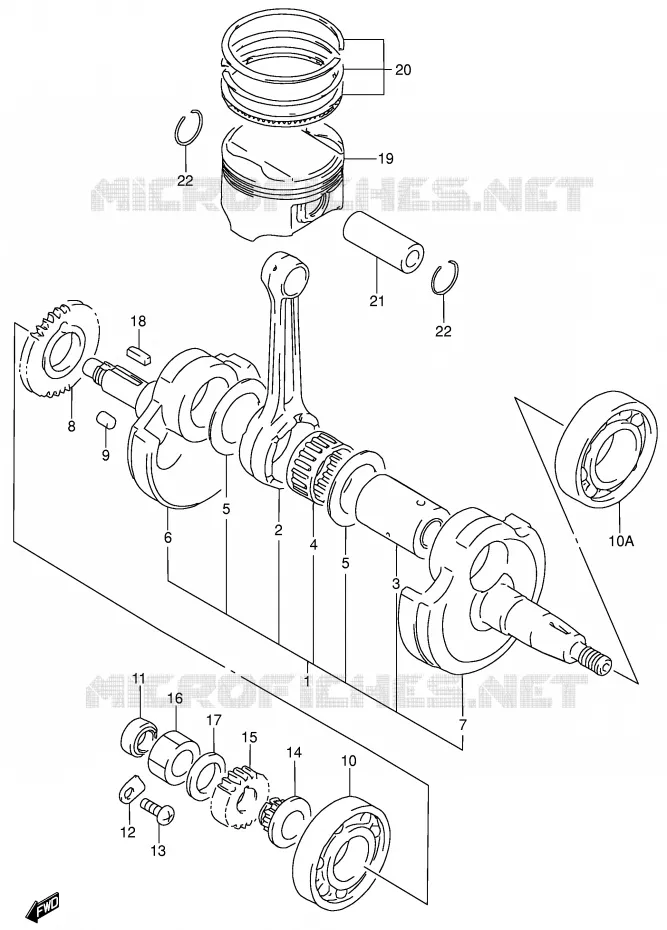

CRANKSHAFT Suzuki MOTO 250 DR-Z 2003 DR-Z250K3(E24)
1
2
3
4
5
5
6
7
7
8
9
10
10A
11
12
13
14
15
16
17
18
19
20
21
22
22
1
CRANKSHAFT ASSY

12200-13E01-000   1220013E01000

1220013E01000

Unit Price

2
CONNECTING ROD

12161-13E00-000   1216113E00000

1216113E00000

Unit Price

3
PIN, CRANK

12210-14D03-000   1221014D03000

1221014D03000

Unit Price

4
BEARING (34X43X20)

09263-34007-000   0926334007000

0926334007000

Unit Price

5
WASHER (34X52X1)

09160-34003-000   0916034003000

0916034003000

Unit Price

6
CRANKSHAFT, R
CRANKSHAFT, RH

12221-13E00-000   1222113E00000

1222113E00000

Unit Price

7
CRANKSHAFT, L
CRANKSHAFT, LH

12261-13E00-0A0   1226113E000A0

1226113E000A0

Unit Price

7
CRANKSHAFT, LH

12261-13E00-0B0   1226113E000B0

1226113E000B0
Not available
8
GEAR, CRANK BALANCER DRIVE
GEAR, CRANK BALANCER DRIVE (NT:34)

12661-13E00-000   1266113E00000

1266113E00000

Unit Price

9
PIN(8X22.5)
PIN

09261-08006-000   0926108006000

0926108006000

Unit Price

10A
BEARING (28X68X18)

09262-28031-0B0   09262280310B0

09262280310B0

Unit Price

10
BALL BEARING
BEARING (28X68X18)

09262-28014-000   0926228014000

0926228014000

Unit Price

11
OIL SEAL
OIL SEAL (14X24X6)

09282-14003-000   0928214003000

0928214003000

Unit Price

12
RETAINER, BEARING

24742-18A00-000   2474218A00000

2474218A00000

Unit Price

13
SCREW

02112-06123-000  

02112-3612A-000
 0211206123000

Unit Price

14
SPROCKET, CAM CHAIN DRIVE

12731-13E00-000   1273113E00000

1273113E00000

Unit Price

15
GEAR, PRIMARY DRIVE
GEAR, PRIMARY DRIVE (NT:21)

21111-13E01-000   2111113E01000

2111113E01000

Unit Price

16
PRIMARY DR GEAR NUT
NUT

09140-18004-000   0914018004000

0914018004000

Unit Price

17
PRI DRIVE GR WAS****

09164-18007-000  

09164-18001-000
 0916418007000

Unit Price

18
KEY, PRIM DR GR
KEY

09421-05009-000   0942105009000

0942105009000

Unit Price

19
PISTON

12111-13E00-0F0   1211113E000F0

1211113E000F0

Unit Price

20
RING SET, PISTON

12140-13E00-000   1214013E00000

1214013E00000

Unit Price

21
PIN, PISTON

12151-17C00-000   1215117C00000

1215117C00000

Unit Price

22
CIRCLIP
SNAP RING

09381-19001-000   0938119001000

0938119001000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 250 DR-Z 2003
