CRANK BALANCER

CAM SHAFT / VALVE FOR SUZUKI DR-Z 250 2003

TIMING

Item numbers

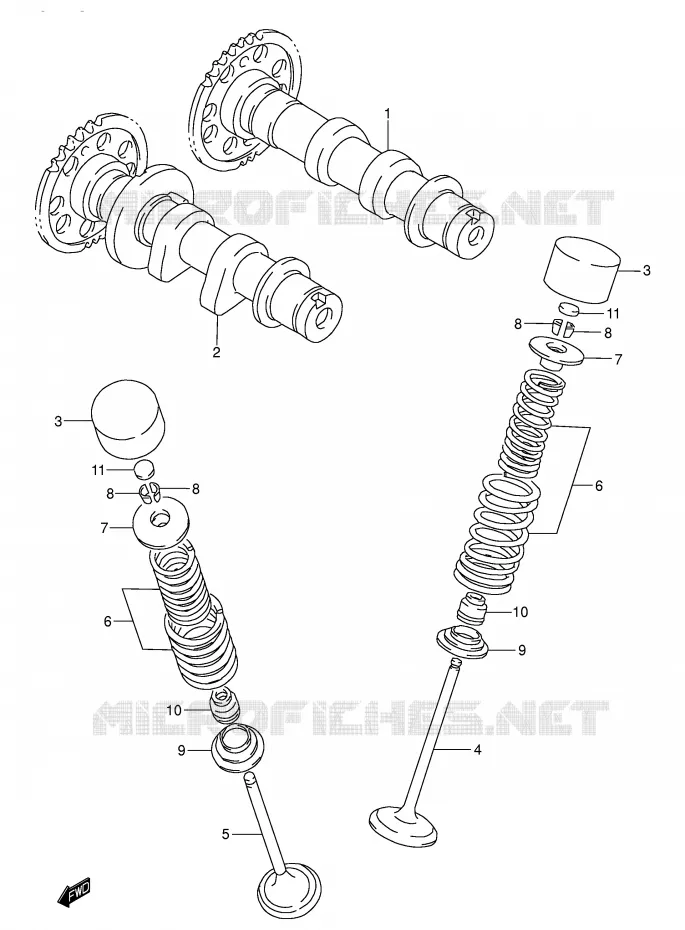

CAM SHAFT/VALVE Suzuki MOTO 250 DR-Z 2003 DR-Z250K3(E3/E28)
1
2
2
3
3
4
5
6
6
7
7
8
8
8
8
9
9
10
10
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
1
CAM SHAFT, INTAKE

12710-13E10-000   1271013E10000

1271013E10000

Unit Price

2
CAM SHAFT, EXHAUST

12720-13E01-000   1272013E01000

1272013E01000

Unit Price

2
12720-13E01
CAM SHAFT, EXHAUST

12720-13E00-000   1272013E00000

1272013E00000
Not available
3
TAPPET
TAPPET

12891-17E00-000  

12891-47H00-000
 1289117E00000

Unit Price

4
VALVE, INTAKE

12911-13E00-000   1291113E00000

1291113E00000

Unit Price

5
VALVE, EXHAUST

12912-13E00-000   1291213E00000

1291213E00000

Unit Price

6
SPRING SET, VALVE

12920-13E00-000   1292013E00000

1292013E00000

Unit Price

7
RETAINER VALVE SPRING

12931-13E00-000   1293113E00000

1293113E00000

Unit Price

8
COTTER, VALVE

12932-32C00-000   1293232C00000

1293232C00000

Unit Price

9
SEAT, VALVE SPRING
SEAT, VALVE SPRING

12933-39E00-000   1293339E00000

1293339E00000

Unit Price

10
OIL SEAL<br />OIL SEAL (4.5X10X8)
OIL SEAL
OIL SEAL (4.5X10X8)

09289-04002-000   0928904002000

0928904002000

Unit Price

11
SHIM, TAPPET (T:1.20)
SHIM, TAPPET (T:1.20)

12892-05C00-120   1289205C00120

1289205C00120

Unit Price

11
SHIM, TAPPET (T:1.25)
SHIM, TAPPET (T:1.25)

12892-05C00-125   1289205C00125

1289205C00125

Unit Price

11
SHIM, TAPPET (T:1.30)
SHIM, TAPPET (T:1.30)

12892-05C00-130   1289205C00130

1289205C00130

Unit Price

11
SHIM, TAPPET (T:1.35)
SHIM, TAPPET (T:1.35)

12892-05C00-135   1289205C00135

1289205C00135

Unit Price

11
SHIM, TAPPET (T:1.40)
SHIM, TAPPET (T:1.40)

12892-05C00-140   1289205C00140

1289205C00140

Unit Price

11
SHIM, TAPPET (T:1.45)
SHIM, TAPPET (T:1.45)

12892-05C00-145   1289205C00145

1289205C00145

Unit Price

11
SHIM, TAPPET (T:1.50)
SHIM, TAPPET (T:1.50)

12892-05C00-150   1289205C00150

1289205C00150

Unit Price

11
SHIM, TAPPET (T:1.55)
SHIM, TAPPET (T:1.55)

12892-05C00-155   1289205C00155

1289205C00155

Unit Price

11
SHIM, TAPPET (T:1.60)
SHIM, TAPPET (T:1.60)

12892-05C00-160   1289205C00160

1289205C00160

Unit Price

11
SHIM, TAPPET (T:1.65)
SHIM, TAPPET (T:1.65)

12892-05C00-165   1289205C00165

1289205C00165

Unit Price

11
SHIM, TAPPET (T:1.70)
SHIM, TAPPET (T:1.70)

12892-05C00-170   1289205C00170

1289205C00170

Unit Price

11
SHIM, TAPPET (T:1.75)
SHIM, TAPPET (T:1.75)

12892-05C00-175   1289205C00175

1289205C00175

Unit Price

11
SHIM, TAPPET (T:1.80)
SHIM, TAPPET (T:1.80)

12892-05C00-180   1289205C00180

1289205C00180

Unit Price

11
SHIM, TAPPET (T:1.85)
SHIM, TAPPET (T:1.85)

12892-05C00-185   1289205C00185

1289205C00185

Unit Price

11
SHIM, TAPPET (T:1.90)
SHIM, TAPPET (T:1.90)

12892-05C00-190   1289205C00190

1289205C00190

Unit Price

11
SHIM, TAPPET (T:1.95)
SHIM, TAPPET (T:1.95)

12892-05C00-195   1289205C00195

1289205C00195

Unit Price

11
SHIM, TAPPET (T:2.00)
SHIM, TAPPET (T:2.00)

12892-05C00-200   1289205C00200

1289205C00200

Unit Price

11
SHIM, TAPPET (T:2.05)
SHIM, TAPPET (T:2.05)

12892-05C00-205   1289205C00205

1289205C00205

Unit Price

11
SHIM, TAPPET (T:2.10)
SHIM, TAPPET (T:2.10)

12892-05C00-210   1289205C00210

1289205C00210

Unit Price

11
SHIM, TAPPET (T:2.15)
SHIM, TAPPET (T:2.15)

12892-05C00-215   1289205C00215

1289205C00215

Unit Price

11
SHIM, TAPPET (T:2.20)
SHIM, TAPPET (T:2.20)

12892-05C00-220   1289205C00220

1289205C00220

Unit Price

12
SHIM SET, TAPPET
SHIM SET, TAPPET

12800-05830-000   1280005830000

1280005830000

Unit Price

13
CASE, TAPPET SHIM

99000-69491-000   9900069491000

9900069491000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
