CARBURETOR FOR SUZUKI DR 250 1982

AIR FILTER

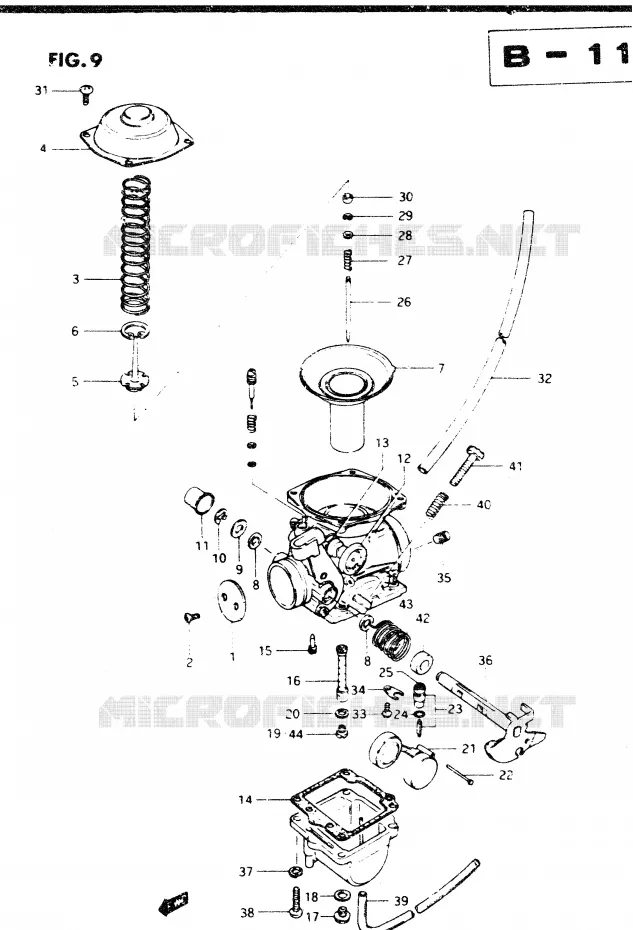

CARBURETOR Suzuki MOTO 250 DR 1982 DR250SZ/D(E1)
1
THROTTLE VALVE (100)

13551-38310-000   1355138310000

1355138310000
Not available
2
SCREW
SCREW

13604-44080-000   1360444080000

1360444080000

Unit Price

3
SPRING

13503-37100-000   1350337100000

1350337100000
Not available
4
COVER

13502-38300-000   1350238300000

1350238300000
Not available
5
DISCONTINUE<br />HOLDER, GUIDE
DISCONTINUE
HOLDER, GUIDE

13389-44030-000   1338944030000

1338944030000
Not available
6
DISCONTINUE<br />CLIP, SPRING
DISCONTINUE
CLIP, SPRING

13581-44030-000   1358144030000

1358144030000
Not available
7
DISCONTINUE
DIAPHRAGM ASSY

13500-38310-000  

1350038310000
Not available
8
SEAL,THRO SHAFT
SEAL, THRO SHAFT

13651-51010-000  

13651-51011-000
 1365151010000

Unit Price

9
GASKET,THROTTLE SHAFT<br />GASKET
GASKET, THROTTLE SHAFT
GASKET

13557-47070-000   1355747070000

1355747070000

Unit Price

10
E RING
E RING

13617-44080-000   1361744080000

1361744080000

Unit Price

10
CARBURETOR ASSY

13200-38220-000   1320038220000

1320038220000
Not available
11
CAP
CAP

13578-47070-000   1357847070000

1357847070000

Unit Price

12
DISCONTINUED

13410-38210-000   1341038210000

1341038210000
Not available
13
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

14
GASKET, FLOAT CHAMBER

13251-37100-000  

13251-37101-000
 1325137100000

Unit Price

15
JET, PILOT
JET, PILOT (42.5)

09492-42010-000   0949242010000

0949242010000

Unit Price

16
DISCONTINUE

09494-00363-000  

0949400363000
Not available
17
PLUG,DRAIN<br />SCREW, PLUG
PLUG, DRAIN
SCREW, PLUG

13247-44080-000   1324744080000

1324744080000

Unit Price

18
GASKET
GASKET

13246-44080-000   1324644080000

1324644080000

Unit Price

19
JET, MAIN
JET, MAIN (125)

09491-25010-000   0949125010000

0949125010000

Unit Price

20
WASHER

13362-03110-000   1336203110000

1336203110000
Not available
21
FLOAT
FLOAT ASSY

13250-37100-000   1325037100000

1325037100000

Unit Price

22
PIN, FLOAT
PIN, FLOAT

13254-92311-000   1325492311000

1325492311000

Unit Price

23
VALVE ASSY, NEEDLE

13370-37400-000  

13370-24C80-000
 1337037400000

Unit Price

24
.O RING

66263-99050-000   6626399050000

6626399050000
Not available
25
.FILTER

13376-65010-000   1337665010000

1337665010000
Not available
26
NEEDLE, JET
NEEDLE, JET (5DT89-3)

13383-38310-000   1338338310000

1338338310000

Unit Price

27
SPRING
SPRING

13388-44030-000   1338844030000

1338844030000

Unit Price

28
WASHER
WASHER

13382-44030-000   1338244030000

1338244030000

Unit Price

29
CLIP<br />E RING
CLIP
E RING

13394-10010-000   1339410010000

1339410010000

Unit Price

30
RING
RING

13387-47010-000   1338747010000

1338747010000

Unit Price

31
.SCREW

02112-05108-000   0211205108000

0211205108000
Not available
32
.HOSE (8X5X350)

13683-11400-000   1368311400000

1368311400000
Not available
33
SCREW

02112-04068-000  

02112-0406B-000
 0211204068000

Unit Price

34
PLATE
PLATE

13373-39110-000   1337339110000

1337339110000

Unit Price

35
DISCONTINUE
JET, PILOT AIR (140)

09493-28005-000   0949328005000

0949328005000
Not available
36
SHAFT ASSY

13550-38300-000   1355038300000

1355038300000
Not available
37
WASHER, LOCK

08321-21058-000  

08321-0105A-000
 0832121058000

Unit Price

38
SCREW

02112-05168-000  

02112-05167-000
 0211205168000

Unit Price

39
DISCONTINUED

13684-38300-000   1368438300000

1368438300000
Not available
40
SPRING, THROTTLE SCREW

13271-44220-000  

13268-37420-000
 1327144220000

Unit Price

41
ADJUSTER

13267-37100-000  

13267-25D00-000
 1326737100000

Unit Price

42
RING

13574-45110-000   1357445110000

1357445110000
Not available
43
SPRING

13573-38300-000   1357338300000

1357338300000
Not available
44
JET,MAIN<br />JET, MAIN (122.5)
JET, MAIN
JET, MAIN (122.5)

09491-24013-000   0949124013000

0949124013000

Unit Price

44
JET, MAIN
JET, MAIN (132.5)

09491-26012-000   0949126012000

0949126012000

Unit Price

44
.JET, MAIN (120)

09491-24005-000   0949124005000

0949124005000
Not available
44
JET, MAIN
JET, MAIN (127.5)

09491-25011-000   0949125011000

0949125011000

Unit Price

44
DISCONTINUED

09491-26004-000   0949126004000

0949126004000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki of DR. Let us know if you have any questions.
