STEERING COLUMN (MODEL E) REFER TO FIG.48 (H-5) FOR MODEL F/G/H

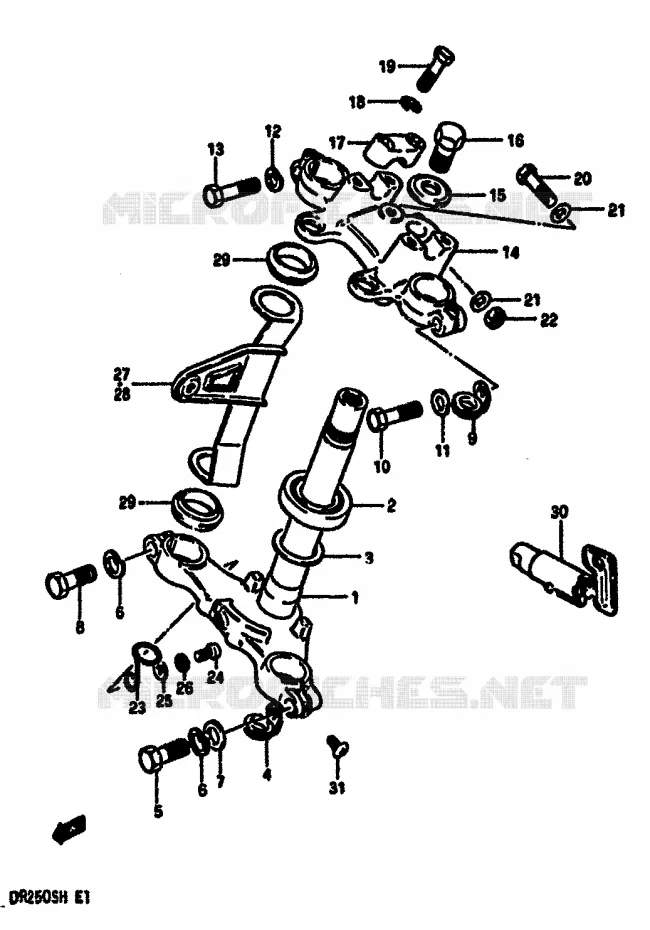

STEERING COLUMN (MODEL F / G / H) FOR SUZUKI DR 250 1984

FRONT WHEEL (MODEL E) REFER TO FIG.52 (H-11) FOR MODEL F/G/H

STEERING STEM (GOLD)

51410-38220-08C 514103822008C

Not available

.BEARING, LOWER

09265-30005-000 0926530005000

Not available

SHIM, 30 X 40 X 1.5

08211-30402-000

09181-30184-000

$6,97

Unit Price

CLIP

51453-38270-000 5145338270000

Not available

BOLT

01107-12458-000

01500-12457-000

$8,97

Unit Price

WASHER, LOCK

08321-21128-000

08321-01127-000

$3,97

Unit Price

WASHER

08322-11128-000

08322-01127-000

$2,97

Unit Price

DISCONTINUED

01104-12408-000 0110412408000

Not available

CLIP

51455-38270-000 5145538270000

Not available

BOLT

01107-10408-000

01500-10407-000

$6,97

Unit Price

WASHER

08322-11107-000

08322-01107-000

$2,97

Unit Price

WASHER

08321-21107-000

08321-01107-000

$3,97

Unit Price

DISCONTINUED

51451-15113-000 5145115113000

Not available

HEAD, STEERING STEM (GOLD)

51311-38210-08C 513113821008C

Not available

DISCONTINUE
WASHER

51356-41310-000 5135641310000

Not available

DISCONTINUE
BOLT

51351-30540-000 5135130540000

Not available

HOLDER, HANDLE (GOLD)

56211-40300-08C 562114030008C

Not available

8 MM LOCK WASHER

08321-21088-000

08321-01087-000

$3,97

Unit Price

BOLT

51321-48080-000

01570-08353-000

$5,97

Unit Price

BOLT

01107-08508-000

01500-08507-000

$4,97

Unit Price

WASHER

08322-21088-000

08322-01087-000

$3,97

Unit Price

NUT

08310-12088-000

08310-00087-000

$3,97

Unit Price

CLIP

51452-38210-000 5145238210000

Not available

SCREW

02112-06148-000 0211206148000

Not available

WASHER

08322-21067-000

08322-0106A-000

$3,97

Unit Price

WASHER, LOCK

08321-21067-000

08321-01067-000

$2,97

Unit Price

BRACKET, HEARLAMP RH (BLACK)

51530-38210-29L 515303821029L

Not available

BRACKET, HEADLAMP RH (BLACK)

51540-38210-29L 515403821029L

Not available

GASKET LOCALLY)

51556-41410-000 5155641410000

Not available

SCREW

02142-05067-000 0214205067000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STEERING COLUMN (MODEL F/G/H) of your Suzuki of DR. Let us know if you have any questions.

Select your Suzuki 1984 model
