CARBURETOR FOR SUZUKI DR 250 1990

AIR FILTER

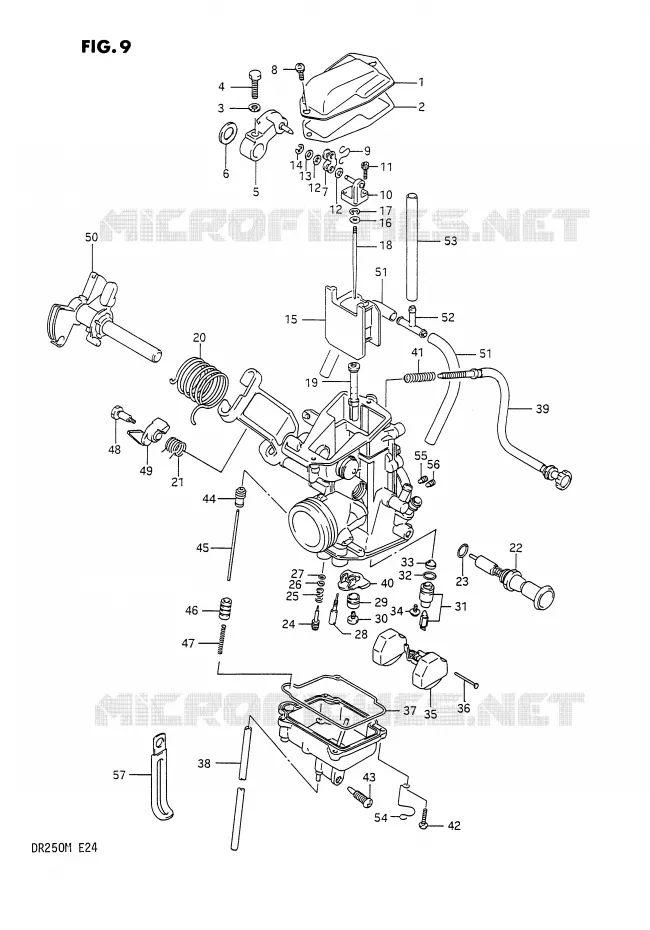

CARBURETOR Suzuki MOTO 250 DR 1990 DR250L(E24)
1
CAP, TOP

13261-27A00-000   1326127A00000

1326127A00000
Not available
2
GASKET,CARBURETOR TOP<br />GASKET
GASKET, CARBURETOR TOP
GASKET

13266-27A00-000   1326627A00000

1326627A00000

Unit Price

3
WASHER, LOCK

13614-45010-000  

08321-01053-000
 1361445010000

Unit Price

4
BOLT

13613-43010-000  

01500-0516B-000
 1361343010000

Unit Price

5
LEVER SET, THROTTLE

13541-14A00-000  

13541-13E00-000
 1354114A00000

Unit Price

6
WASHER

13574-38200-000  

13575-38200-000
 1357438200000

Unit Price

7
PLATE
PLATE

13447-14A00-000   1344714A00000

1344714A00000

Unit Price

8
SCREW

02112-34108-000  

02112-34103-000
 0211234108000

Unit Price

9
DISCONTINUE<br />SPRING
DISCONTINUE
SPRING

13446-14A00-000   1344614A00000

1344614A00000
Not available
10
CONNECTOR

13398-27A02-000   1339827A02000

1339827A02000

Unit Price

11
SCREW

13566-14A00-000  

02112-03123-000
 1356614A00000

Unit Price

12
GASKET<br />WASHER
GASKET
WASHER

13445-14A00-000   1344514A00000

1344514A00000

Unit Price

13
09160-04024
WASHER

13449-14A00-000  

1344914A00000
Not available
14
E RING

13298-49000-000  

13415-38300-000
 1329849000000

Unit Price

15
DISCONTINUE
VALVE, PISTON (CA:1.5)

13551-14D00-000   1355114D00000

1355114D00000
Not available
16
WASHER, JET NEEDLE
WASHER

13382-47010-000   1338247010000

1338247010000

Unit Price

17
CLIP<br />E RING
CLIP
E RING

13394-10010-000   1339410010000

1339410010000

Unit Price

18
NEEDLE, JET
NEEDLE, JET (6FN83-3)

13383-15D00-000   1338315D00000

1338315D00000

Unit Price

19
JET, NEEDLE (P-9)

09494-00683-000   0949400683000

0949400683000
Not available
20
SPRING

13573-42A20-000   1357342A20000

1357342A20000
Not available
21
SPRING

13494-14D00-000   1349414D00000

1349414D00000

Unit Price

22
DISCONTINUE
PLUNGER ASSY

13411-14D00-000   1341114D00000

1341114D00000
Not available
23
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

24
SCREW, PILOT
SCREW, PILOT

13279-47070-000   1327947070000

1327947070000

Unit Price

25
SPRING
SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

26
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

27
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

28
JET, PILOT (35)

09492-35018-000   0949235018000

0949235018000
Not available
28
JET, PILOT (42.5)

09492-42017-000   0949242017000

0949242017000
Not available
29
RING,MAIN JET FIXING<br />RING
RING, MAIN JET FIXING
RING

13331-13A00-000   1333113A00000

1333113A00000

Unit Price

30
JET, MAIN
JET, MAIN (130)

09491-26011-000   0949126011000

0949126011000

Unit Price

30
JET, MAIN
JET, MAIN (127.5)

09491-25011-000   0949125011000

0949125011000

Unit Price

31
VALVE ASSY, NEEDLE

13370-14D00-000  

13370-05530-000
 1337014D00000

Unit Price

32
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

33
FILTER

13376-84110-000  

13376-19F00-000
 1337684110000

Unit Price

34
SCREW
SCREW

13602-43410-000   1360243410000

1360243410000

Unit Price

35
FLOAT<br />FLOAT ASSY
FLOAT
FLOAT ASSY

13250-28A00-000   1325028A00000

1325028A00000

Unit Price

36
PIN, FLOAT
PIN, FLOAT

13254-92311-000   1325492311000

1325492311000

Unit Price

37
O RING,FLOAT CHAMBER<br />O RING
O RING, FLOAT CHAMBER
O RING

13251-27A00-000   1325127A00000

1325127A00000

Unit Price

38
HOSE (7.4X3.2X135)

13684-18900-000  

09354-31684-600
 1368418900000

Unit Price

39
DISCONTINUE
ADJUSTER

13267-14D00-000   1326714D00000

1326714D00000
Not available
40
RING

13331-14D00-000  

13331-13E00-000
 1333114D00000

Unit Price

41
DISCONTINUE
SPRING

13268-14D00-000   1326814D00000

1326814D00000
Not available
42
SCREW
SCREW

13601-04148-000   1360104148000

1360104148000

Unit Price

43
PLUG,DRAIN<br />SCREW
PLUG, DRAIN
SCREW

13247-02340-000   1324702340000

1324702340000

Unit Price

44
BOOT<br />CAP
BOOT
CAP

13499-44500-000   1349944500000

1349944500000

Unit Price

45
ROD, PLUNGER
ROD

13487-14A00-000   1348714A00000

1348714A00000

Unit Price

46
PLUNGER
PLUNGER

13493-27A00-000   1349327A00000

1349327A00000

Unit Price

47
SPRING
SPRING

13271-09400-000   1327109400000

1327109400000

Unit Price

48
BOLT
BOLT

13613-14A00-000   1361314A00000

1361314A00000

Unit Price

49
LEVER

13490-14D00-000  

13490-14A00-000
 1349014D00000

Unit Price

50
SHAFT ASSY

13553-15D00-000   1355315D00000

1355315D00000
Not available
51
HOSE

13683-42A20-000  

13684-38A20-000
 1368342A20000

Unit Price

52
HOSE,3-WAY<br />NIPPLE
HOSE, 3-WAY
NIPPLE

09367-06002-000   0936706002000

0936706002000

Unit Price

53
HOSE

13683-42A20-000  

13684-38A20-000
 1368342A20000

Unit Price

54
CLIP

13692-14D00-000   1369214D00000

1369214D00000
Not available
55
JET,AIR(0.6)<br />JET, MAIN AIR (0.6)
JET, AIR(0.6)
JET, MAIN AIR (0.6)

09493-60004-000   0949360004000

0949360004000

Unit Price

56
JET,AIR(1.3)<br />JET, PILOT AIR (1.3)
JET, AIR(1.3)
JET, PILOT AIR (1.3)

09493-26004-000   0949326004000

0949326004000

Unit Price

57
CLAMP(L:65)

09404-06401-000  

09404-06039-000
 0940406401000

Unit Price

99x
DISCONTINUED

13200-15D00-000   1320015D00000

1320015D00000
Not available
99x
CARBURETOR ASSY

13200-15D01-000   1320015D01000

1320015D01000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki of DR. Let us know if you have any questions.
