Parts catalogue

Parts diagram

CAM SHAFT - VALVE

TIMING FOR SUZUKI DR 250 1991

CARBURETOR

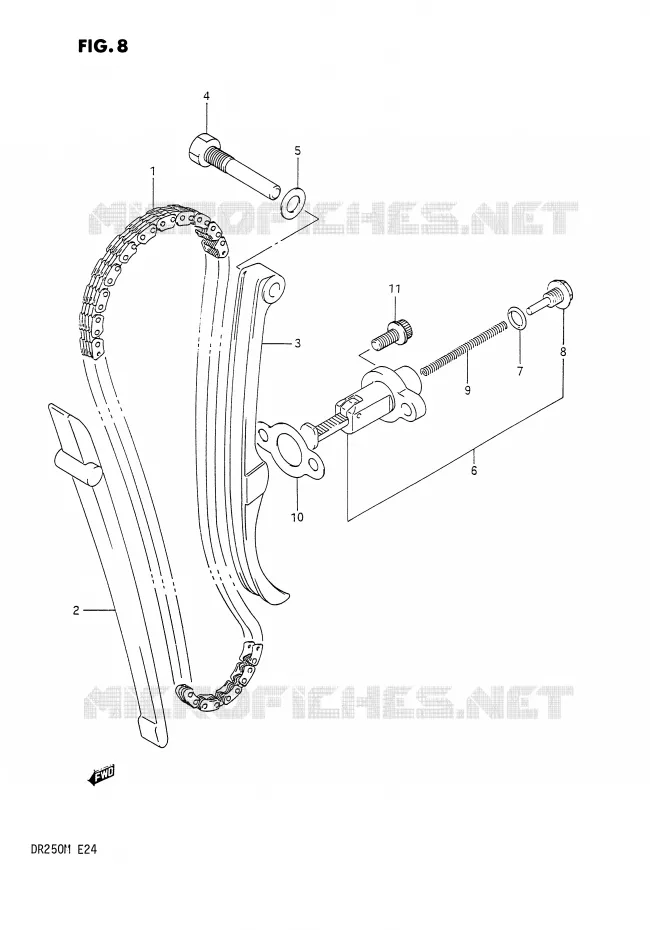

TIMING Suzuki MOTO 250 DR 1991 DR250M(E24)
1
CHAIN, CAMSHAFT DRIVE

12760-19B70-108  

12760-19B71-000
 1276019B70108

Unit Price

2
DISCONTINUE
GUIDE, CAM CHAIN

12771-14D00-000  

1277114D00000
Not available
3
DISCONTINUE
TENSIONER, CAM CHAIN

12811-14D00-000  

1281114D00000
Not available
4
BOLT, CAM CHAIN TENSIONER
BOLT

12812-32410-000   1281232410000

1281232410000

Unit Price

5
GASKET, 8.2X14X1

09168-08008-000  

09168-08016-000
 0916808008000

Unit Price

6
ADJUSTER ASSY, TENSIONER

12830-29B21-000  

12830-29B11-000
 1283029B21000

Unit Price

7
O RING
O RING

12832-02A00-000   1283202A00000

1283202A00000

Unit Price

8
PLUG, ADJUSTER
PLUG

12834-26B00-000   1283426B00000

1283426B00000

Unit Price

9
SPRING

12833-29B00-000   1283329B00000

1283329B00000

Unit Price

10
GASKET, TENSIONER ADJUSTER

12837-14D00-000  

12837-19B10-000
 1283714D00000

Unit Price

11
BOLT

07120-06205-000  

07120-0620B-000
 0712006205000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TIMING of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 250 DR 1991

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 250 DR 1991

Select your Suzuki 1991 model

250 DR 1991 DR250M(E24)

Suzuki DR

Displacement: 250 cc
Year: 1991
Model code DR250M(E24)
