Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

OIL COOLER (OPTIONAL)

CLUTCH FOR SUZUKI DR 250 1991

TRANSMISSION

Item numbers

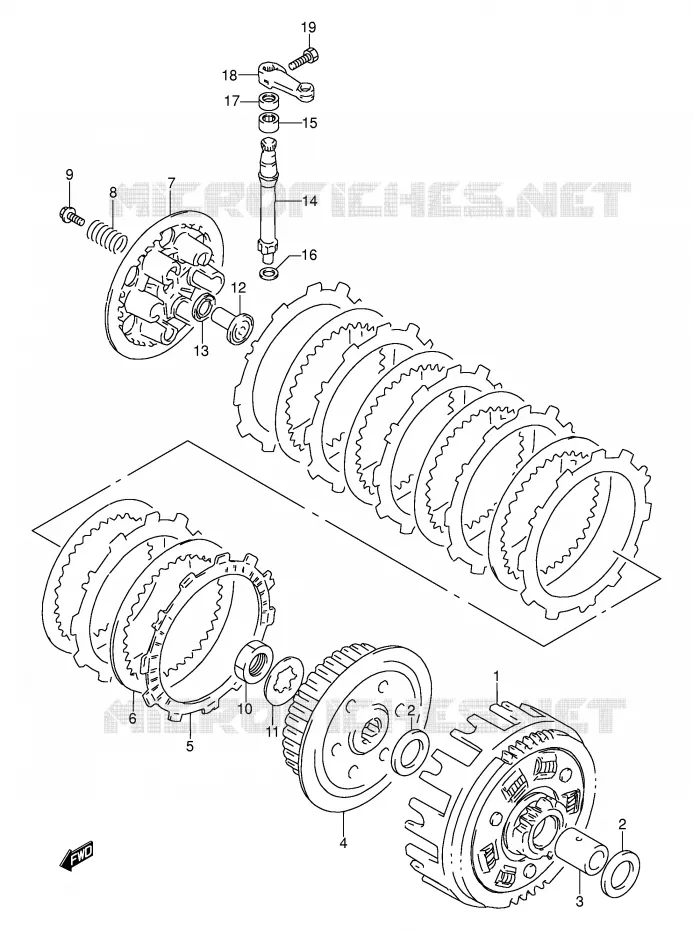

CLUTCH Suzuki MOTO 250 DR 1991 DR250SM(E24)
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
1
GEAR ASSY, PRI DRIVEN(62/15
GEAR ASSY, PRIMARY DRIVEN

21200-14D11-000   2120014D11000

2120014D11000

Unit Price

1
GEAR ASSY, PRIMARY DRIVEN

21200-15D21-000   2120015D21000

2120015D21000
Not available
2
WASHER THRUST
WASHER

08211-20363-000   0821120363000

0821120363000

Unit Price

3
SPACER
SPACER (20X25X29)

09180-20109-000   0918020109000

0918020109000

Unit Price

4
HUB, CLUTCH SLEEVE
HUB, SLEEVE

21410-14D00-000   2141014D00000

2141014D00000

Unit Price

5
PLATE, CLUTCH DRIVE
PLATE, DRIVE (T:2.8)

21441-12D01-000   2144112D01000

2144112D01000

Unit Price

6
PLATE, CLUTCH DRIVEN(T:1.6)

21451-28C30-000  

21451-28C31-000
 2145128C30000

Unit Price

7
DISC, CLUTCH PRESSURE
DISC, PRESSURE

21462-00B02-000   2146200B02000

2146200B02000

Unit Price

8
SPRING

09440-15014-000   0944015014000

0944015014000

Unit Price

9
BOLT, 5X16

09116-05003-000  

09116-05020-000
 0911605003000

Unit Price

10
DRIVE SPROCKET NUT

09140-20002-000  

09140-20001-000
 0914020002000

Unit Price

11
WASHER,LOCK<br />LOCK WASHER (20.5X34X0.8)
WASHER, LOCK
LOCK WASHER (20.5X34X0.8)

09167-20009-000   0916720009000

0916720009000

Unit Price

12
RACK, CLUTCH RELEASE

23165-00B00-000  

23165-44B01-000
 2316500B00000

Unit Price

13
RD SFT ARM PIN BRG
THRUST BEARING

09263-10002-000   0926310002000

0926310002000

Unit Price

14
PINION, CLUTCH RELEASE
PINION (NT:12)

23261-14D02-000   2326114D02000

2326114D02000

Unit Price

15
BEARING
BEARING (12X16X10)

09263-12024-000   0926312024000

0926312024000

Unit Price

16
SHIM, 8.8X14X1.0

08211-08141-000  

09181-08139-000
 0821108141000

Unit Price

17
OIL SEAL
OIL SEAL

09285-10004-000   0928510004000

0928510004000

Unit Price

18
ARM, CLUTCH RELEASE

23271-20901-000  

23271-20902-000
 2327120901000

Unit Price

19
BOLT

01107-06167-000  

01500-06167-000
 0110706167000

Unit Price

19
BOLT

01500-06163-000  

01500-0616A-000
 0150006163000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 250 DR 1991
