CYLINDER HEAD

CYLINDER FOR SUZUKI DR 250 1992

CRANKCASE

Item numbers

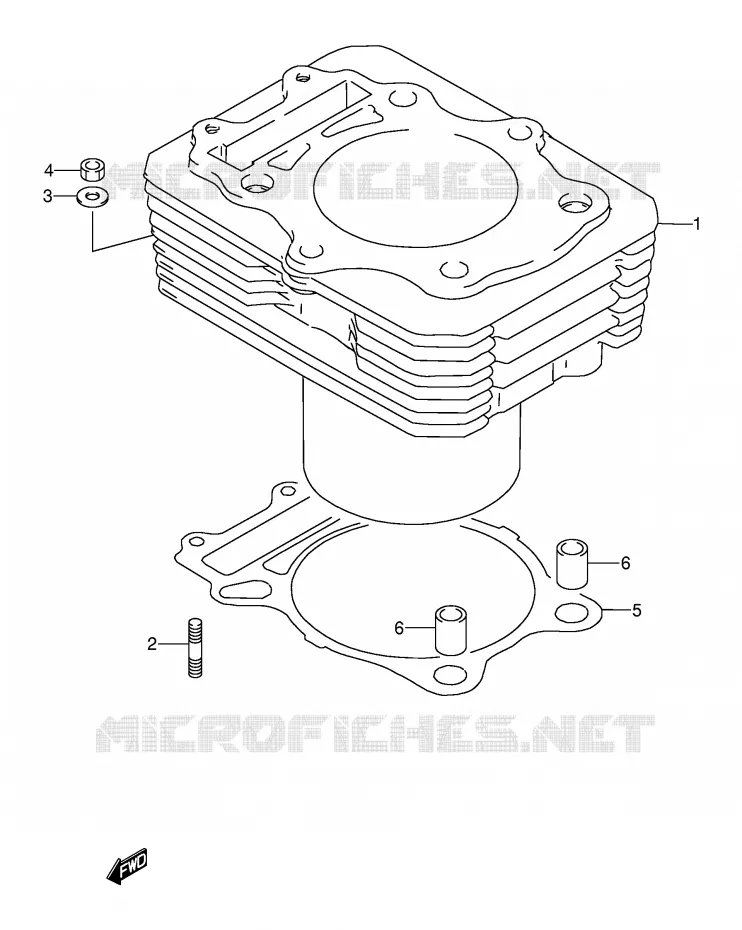

CYLINDER Suzuki MOTO 250 DR 1992 DR250SN(E24)

1

DISCONTINUED

11210-15D02-0F0 1121015D020F0

Not available

2

BOLT, STUD

01421-06208-000

01421-0620A-000

$2,97

Unit Price

3

WASHER

08322-01063-000

08322-0106A-000

$2,97

Unit Price

4

NUT

09140-06022-000

09140-06502-000

$3,97

Unit Price

5

GASKET, CYLINDER

11241-14D01-000 1124114D01000

$23,97

Unit Price

6

PIN

09206-13001-000

04211-13189-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER of your Suzuki of DR. Let us know if you have any questions.
