Displacement

Model

Year

Finish line

Parts catalogue

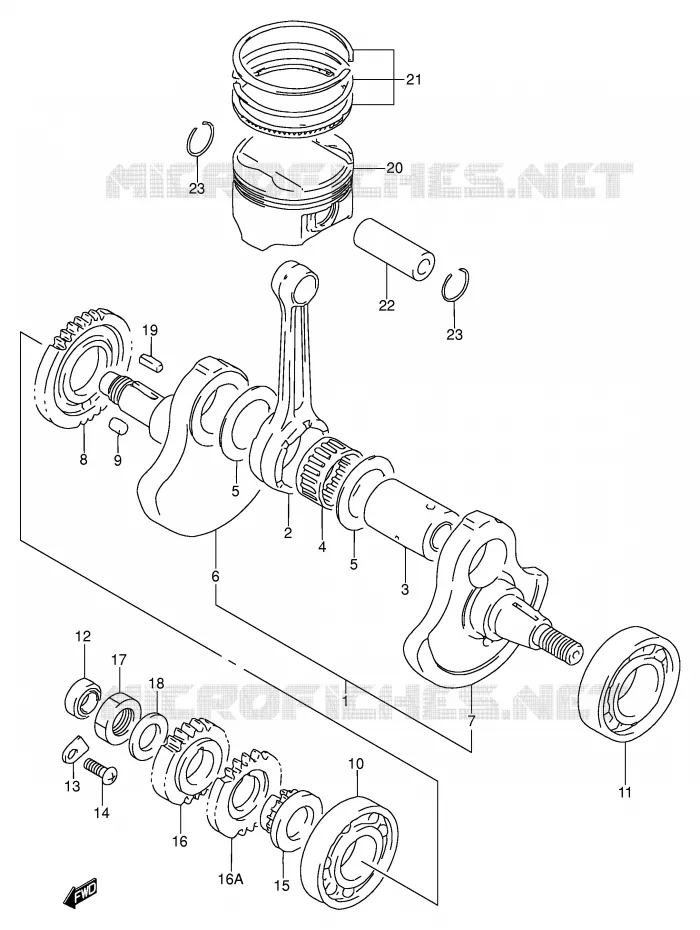

Parts diagram

CRANKCASE COVER

CRANKSHAFT FOR SUZUKI DR 250 1994

CRANK BALANCER

Item numbers

CRANKSHAFT ASSY

12200-15D00-000 1220015D00000

Not available

CONROD AN250

12161-15D00-000 1216115D00000

Not available

PIN, CRANK

12210-14D02-000

12210-14D03-000

$86,97

Unit Price

BEARING

09263-34005-000 0926334005000

$89,97

Unit Price

WASHER 34X52X1
WASHER

09160-34003-000 0916034003000

$11,97

Unit Price

CRANKSHAFT, RH

12221-15D01-000 1222115D01000

Not available

DISCONTINUED

12261-15D00-000 1226115D00000

Not available

GEAR, CRANK BAL DRIVE(NT:37)
GEAR, BALANCER DRIVE

12661-14D00-000 1266114D00000

$150,97

Unit Price

04221-08149-000 0422108149000

$3,97

Unit Price

BEARING(30X72X19)
BEARING, RH (30X72X19)

09262-30077-000 0926230077000

Not available

BEARING 35X72X17
BEARING, LH (35X72X17)

09262-35038-000 0926235038000

$68,97

Unit Price

OIL SEAL
OIL SEAL, RH

09282-14003-000 0928214003000

$14,97

Unit Price

RETAINER, BEARING
PLATE, RH

24742-18A00-000 2474218A00000

$5,97

Unit Price

SCREW

02112-06123-000

02112-3612A-000

$3,97

Unit Price

SCREW

02112-06126-000

02112-0612B-000

$2,97

Unit Price

SPROCKET, CAM CHAIN DRIVE

12731-14D00-000 1273114D00000

$82,97

Unit Price

GEAR, PRIMARY DRIVE

21111-14D00-000

21111-14D01-000

$69,97

Unit Price

DISCONTINUE

21111-15D20-000

Not available

16A

DISCONTINUE

16321-15D00-000

Not available

NUT

09140-18012-000 0914018012000

$13,97

Unit Price

PRI DRIVE GR WAS****
LOCK WASHER

09164-18001-000 0916418001000

$5,97

Unit Price

KEY, PRIM DR GR
KEY, GEAR

09421-05009-000 0942105009000

$13,97

Unit Price

DISCONTINUED

12111-15D10-050 1211115D10050

Not available

PISTON

12111-15D10-0F0 1211115D100F0

Not available

DISCONTINUED

12111-15D10-100 1211115D10100

Not available

RING SET, PISTON

12140-15D10-000 1214015D10000

Not available

DISCONTINUED

12140-15D10-050 1214015D10050

Not available

DISCONTINUED

12140-15D10-100 1214015D10100

Not available

PIN, PISTON

12151-17C00-000 1215117C00000

$24,97

Unit Price

CIRCLIP

09381-19001-000 0938119001000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of DR. Let us know if you have any questions.
