LH HANDLE LEVER

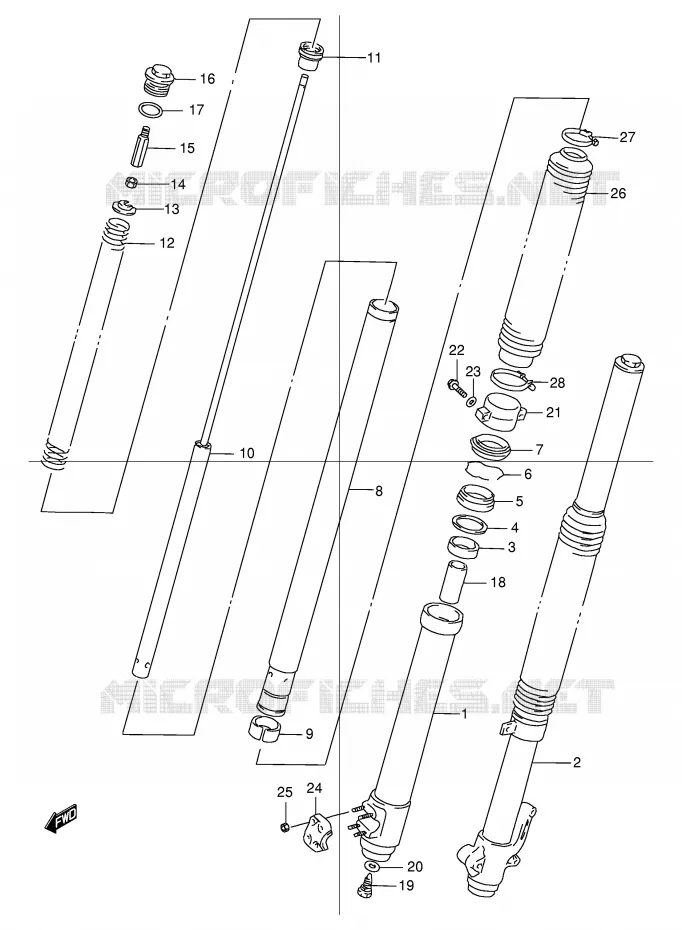

FRONT FORK FOR SUZUKI DR 250 1998

STEERING COLUMN

Item numbers

Ï¿½TUBE, OUTER RH

51130-13E40-000 5113013E40000

Not available

Ï¿½TUBE, OUTER LH

51140-13E40-000 5114013E40000

Not available

BUSH, GUIDE
Ï¿½BUSH, GUIDE

51152-13E00-000 5115213E00000

$30,97

Unit Price

SPACER, SEAL
Ï¿½SPACER, SEAL

51168-17C00-000 5116817C00000

$9,97

Unit Price

SEAL, OIL
Ï¿½SEAL, OIL

51153-14D00-000 5115314D00000

$30,97

Unit Price

CIRCLIP, FORK OIL SEAL
Ï¿½RING, STOPPER

51556-38B00-000 5155638B00000

$10,97

Unit Price

SEAL, DUST
Ï¿½DUST SEAL

51173-14D00-000 5117314D00000

$41,97

Unit Price

Ï¿½TUBE, INNER

51110-13E40-000 5111013E40000

Not available

BUSH, SLIDE
Ï¿½BUSH, SLIDE

51121-13E00-000 5112113E00000

$29,97

Unit Price

Ï¿½ROD, FRONT DAMPER

51190-13E40-000 5119013E40000

Not available

BUSH, SLIDE
Ï¿½BUSH, SLIDE

51197-14E30-000 5119714E30000

$17,97

Unit Price

Ï¿½SPRING, . FRONT

51171-13E00-000 5117113E00000

Not available

SEAT, SPRING UPR
Ï¿½SEAT, SPRING

51172-17C00-000 5117217C00000

$19,97

Unit Price

NUT, TIE ROD LH

51827-32C00-000

09140-10027-000

$2,97

Unit Price

Ï¿½BOLT, JOINT

51194-13E00-000 5119413E00000

Not available

BOLT, FORK
Ï¿½BOLT, FORK

51351-14E30-000 5135114E30000

$100,97

Unit Price

O RING
Ï¿½O RING

51117-17C00-000 5111717C00000

$9,97

Unit Price

PIECE, OIL LOCK
Ï¿½PIECE, OIL LOCK

51195-13E00-000 5119513E00000

$39,97

Unit Price

BOLT, CTR
Ï¿½BOLT, CENTER

51170-08D00-000 5117008D00000

$150,97

Unit Price

GASKET
Ï¿½GASKET

51148-08D00-000 5114808D00000

$12,97

Unit Price

HOLDER
Ï¿½HOLDER

51203-13E00-000 5120313E00000

$71,97

Unit Price

BOLT
Ï¿½BOLT

07130-05207-000 0713005207000

$3,97

Unit Price

WASHER(5.5X10X1)
Ï¿½WASHER (5.5X10X1.0)

09160-05044-000 0916005044000

$2,97

Unit Price

HOLDER, AXLE
Ï¿½HOLDER, AXLE RH

51132-13E00-000 5113213E00000

$53,97

Unit Price

NUT 6MM
Ï¿½NUT

08319-31067-000 0831931067000

$3,97

Unit Price

BOOT

51571-14D00-163

51571-14D01-163

$143,97

Unit Price

DISCONTINUE
BOOT (BLACK)

51571-14D00-019 5157114D00019

Not available

BAND, BOOT UPR
BAND, BOOT UPPER

51575-14D00-000 5157514D00000

$17,97

Unit Price

BAND, BOOT LWR
BAND, BOOT LOWER

51576-14D00-000 5157614D00000

$20,97

Unit Price

99x

DAMPER ASSY, FRONT FORK RH

51103-13E20-000 5110313E20000

Not available

99x

DAMPER ASSY, FRONT FORK LH

51104-13E20-000 5110413E20000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki of DR. Let us know if you have any questions.
