TAIL LIGHT (E1,E2,E4,E24,E34,E53,P95) REFER TO FIG.30 (F-4) FOR E25,E39

TAIL LIGHT (E25,E39) FOR SUZUKI GN 250 1985

WIRING HARNESS

Item numbers

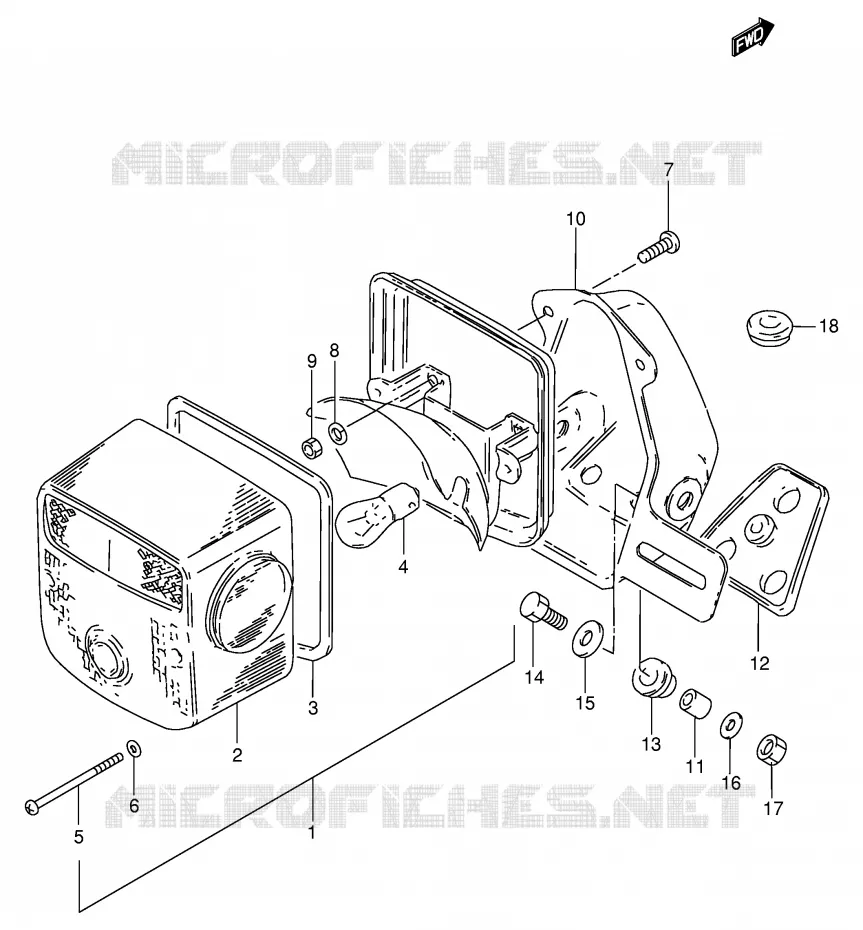

TAIL LIGHT (E25,E39) Suzuki MOTO 250 GN 1985 GN250F(E2)
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
18
1
LAMP UNIT, TAIL

35720-38361-000   3572038361000

3572038361000
Not available
2
LENS

35712-38361-000   3571238361000

3571238361000
Not available
3
DISCONTINUE<br />GASKET
DISCONTINUE
GASKET

35713-30510-000   3571330510000

3571330510000
Not available
4
BULB (12V, 21/5W)

09471-12057-000   0947112057000

0947112057000
Not available
5
SCREW

09125-04002-000  

02112-04558-000
 0912504002000

Unit Price

6
GASKET
GASKET

35627-43010-000   3562743010000

3562743010000

Unit Price

7
SCREW,6X16<br />SCREW
SCREW, 6X16
SCREW

02112-06167-000   0211206167000

0211206167000

Unit Price

8
WASHER,LOCK<br />LOCK WASHER
WASHER, LOCK
LOCK WASHER

08321-01067-000   0832101067000

0832101067000

Unit Price

9
NUT
NUT

08310-00067-000   0831000067000

0831000067000

Unit Price

10
BRACKET UNIT

35730-38380-000   3573038380000

3573038380000
Not available
11
SPACER

35766-26470-000   3576626470000

3576626470000

Unit Price

12
CUSHION

35765-26470-000   3576526470000

3576526470000
Not available
13
CUSHION

35764-26470-000   3576426470000

3576426470000

Unit Price

14
BOLT
BOLT

01500-06207-000   0150006207000

0150006207000

Unit Price

15
WASHER 6.5X10X1.2

09160-06027-000  

09160-06077-000
 0916006027000

Unit Price

16
WASHER

08322-01067-000  

08322-0106A-000
 0832201067000

Unit Price

17
NUT

08310-11067-000  

08310-00067-000
 0831011067000

Unit Price

18
GROMMET

09308-09004-000   0930809004000

0930809004000
Not available
