CYLINDER HEAD FOR SUZUKI GN 250 1990

CYLINDER

Item numbers

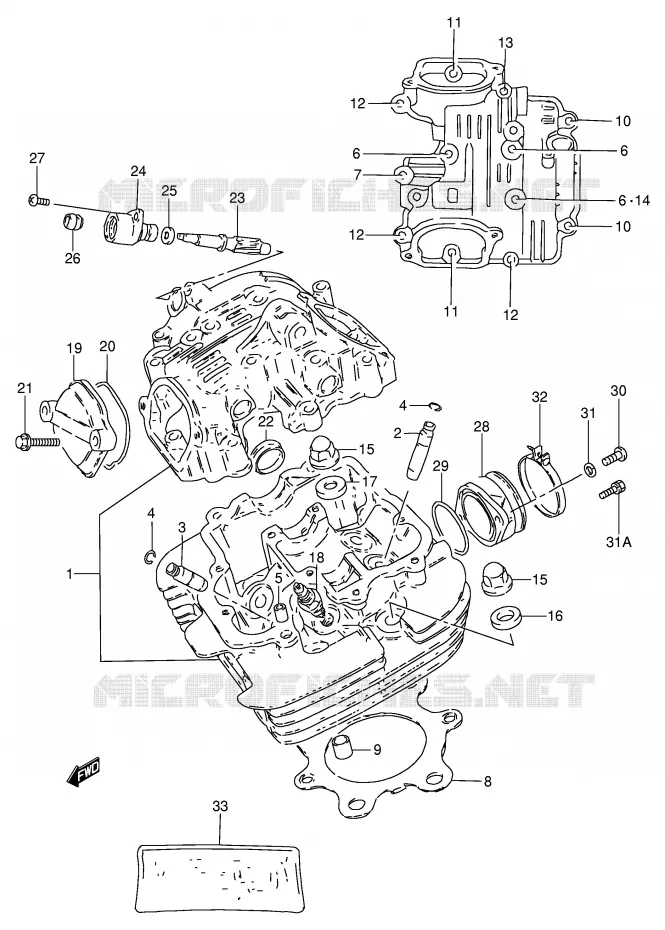

CYLINDER HEAD Suzuki MOTO 250 GN 1990 GN250L(E2)
1
2
3
4
4
5
6
6
6
6
6
6
7
7
8
9
10
10
11
11
11
11
12
12
12
12
12
12
13
13
14
15
15
16
17
18
18
18
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31A
31
32
32
33
1
HEAD ASSY, CYLINDER

11100-38202-000   1110038202000

1110038202000
Not available
2
GUIDE, INTAKE VALVE
GUIDE, IN VALVE

11115-38270-000   1111538270000

1111538270000

Unit Price

3
GUIDE, VALVE
GUIDE, EX VALVE

11115-05270-000   1111505270000

1111505270000

Unit Price

4
RING, VALVE GUIDE
RING, VALVE GUIDE

09381-10004-000   0938110004000

0938110004000

Unit Price

5
PIN(8X11)<br />PIN
PIN(8X11)
PIN

09206-08001-000   0920608001000

0920608001000

Unit Price

6
BOLT

01517-06608-000  

01550-0660A-000
 0151706608000

Unit Price

7
BOLT

01517-06307-000  

01550-06307-000
 0151706307000

Unit Price

8
GASKET, CYLINDER HEAD

11141-38200-000  

11141-38201-000
 1114138200000

Unit Price

9
PIN

09206-13001-000  

04211-13189-000
 0920613001000

Unit Price

10
BOLT (6X115)

09103-06052-000   0910306052000

0910306052000

Unit Price

11
BOLT

01517-06307-000  

01550-06307-000
 0151706307000

Unit Price

11
BOLT

01550-06303-000  

01550-0630A-000
 0155006303000

Unit Price

12
BOLT

01517-06458-000  

01550-06457-000
 0151706458000

Unit Price

13
BOLT

01517-06608-000  

01550-0660A-000
 0151706608000

Unit Price

14
GASKET
GASKET

09168-06023-000   0916806023000

0916806023000
Not available
15
CYLINDER HEAD NUT
NUT

09159-10026-000   0915910026000

0915910026000

Unit Price

16
WASHER
WASHER

09160-10039-000   0916010039000

0916010039000

Unit Price

17
GASKET

09168-10017-000   0916810017000

0916810017000

Unit Price

18
DR8EA, NGK

09482-00144-000  

09482-00399-000
 0948200144000

Unit Price

18
DR8EA, NGK

09482-00223-000  

09482-00149-000
 0948200223000

Unit Price

18
SPARK PLUG (ND, X24ES-U)

09482-00145-000   0948200145000

0948200145000
Not available
19
CAP, INSPECTION

11175-38202-000   1117538202000

1117538202000

Unit Price

20
O-RING, CAP
O RING

09280-55003-000   0928055003000

0928055003000

Unit Price

21
BOLT

01517-06257-000  

01550-0625A-000
 0151706257000

Unit Price

22
PLUG, CAM SHAFT
PLUG, HEAD

09241-30004-000   0924130004000

0924130004000

Unit Price

23
GEAR, TACHOMETER DRIVEN
GEAR, TACHO DRIVEN

26431-37401-000   2643137401000

2643137401000

Unit Price

24
SLEEVE,TACHOMETER DRIVE GEAR<br />SLEEVE
SLEEVE, TACHOMETER DRIVE GEAR
SLEEVE

26441-49000-000   2644149000000

2644149000000

Unit Price

25
BAND, DRIVEN GEAR SEAL
SEAL BAND

26451-45000-000   2645145000000

2645145000000

Unit Price

26
TACHO DRVN OIL SEAL<br />OIL SEAL
TACHO DRVN OIL SEAL
OIL SEAL

09289-05002-000   0928905002000

0928905002000

Unit Price

27
LOCK PLATE SCREW<br />SCREW
LOCK PLATE SCREW
SCREW

09128-05101-000   0912805101000

0912805101000

Unit Price

28
PIPE, INTAKE

13110-38200-000   1311038200000

1311038200000

Unit Price

29
O RING

09280-40003-000  

09280-40020-000
 0928040003000

Unit Price

30
SCREW,6X16<br />SCREW
SCREW, 6X16
SCREW

02112-06167-000   0211206167000

0211206167000

Unit Price

31
WASHER, LOCK

08321-21067-000  

08321-01067-000
 0832121067000

Unit Price

31A
SCREW

02112-36163-000  

02112-3616B-000
 0211236163000

Unit Price

32
CLAMP
CLAMP

09402-52208-000   0940252208000

0940252208000

Unit Price

32
INLET HOSE CLAMP<br />CLAMP
INLET HOSE CLAMP
CLAMP

09402-52306-000   0940252306000

0940252306000

Unit Price

33
11400-38829
DISCONTINUED

11400-38827-000  

1140038827000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
