Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

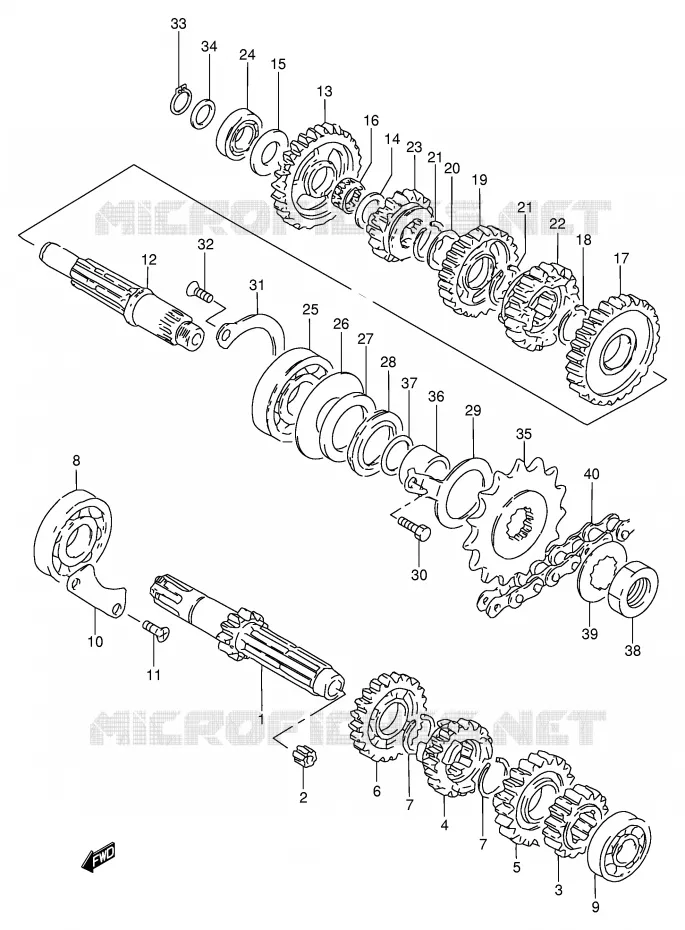

TRANSMISSION FOR SUZUKI GN 250 1991

GEAR SHIFTING ASSY

Item numbers

SHAFT, COUNTER(NT:11)

24120-38201-000

24120-38203-000

$176,97

Unit Price

BUSH

24125-38201-000 2412538201000

$6,97

Unit Price

GEAR, 2ND DRIVE (NT:16)

24221-32412-000 2422132412000

$114,97

Unit Price

GEAR, 3RD DRIVE (NT:19)

24231-38201-000 2423138201000

$121,97

Unit Price

DISCONTINUED

24241-32400-000 2424132400000

Not available

DISCONTINUED

24251-32401-000 2425132401000

Not available

4TH DRIVE GR CIRCLIP
CIRCLIP

09380-22006-000 0938022006000

$4,97

Unit Price

BEARING 22 X 56 X 16

09262-22014-000

09262-22028-000

$93,97

Unit Price

BALL BEARING
BEARING, LH (17X40X12)

09262-17027-000 0926217027000

$41,97

Unit Price

RETAINER, CNTR SHAFT BEARING
HOLDER, BEARING

24741-38200-000 2474138200000

$7,97

Unit Price

SCREW

02112-06123-000

02112-3612A-000

$3,97

Unit Price

SCREW

02112-06128-000

02112-06127-000

$3,97

Unit Price

DISCONTINUED

24130-38300-000 2413038300000

Not available

GEAR, 1ST DRIVEN (NT:29)

24311-32401-000 2431132401000

$114,97

Unit Price

WASHER

08211-17281-000

09181-17195-000

$4,97

Unit Price

WASHER, RH

08211-17363-000 0821117363000

Not available

BEARING(17X21X9.8)
BEARING

09263-17004-000 0926317004000

$18,97

Unit Price

GEAR, 2ND DRIVEN (NT:27)

24320-32411-000 2432032411000

$103,97

Unit Price

4TH DRIVE GR CIRCLIP
CIRCLIP

09380-22006-000 0938022006000

$4,97

Unit Price

GEAR, 3RD DRIVEN(NT:24)

24330-38200-000

24330-38202-000

$94,97

Unit Price

DRIVEN GEAR WASHER
WASHER

09167-22011-000 0916722011000

$4,97

Unit Price

4TH DRIVE GR CIRCLIP
CIRCLIP

09380-22006-000 0938022006000

$4,97

Unit Price

GEAR, 4TH DRIVEN(NT:20)

24341-38200-000

24341-38201-000

$119,97

Unit Price

DISCONTINUED

24351-38200-000 2435138200000

Not available

BEARING(17X36X12)
BEARING, RH

09264-17001-000 0926417001000

$45,97

Unit Price

BEARING(22X56X16)
BEARING, LH

09262-22013-000 0926222013000

$118,97

Unit Price

WASHER (35X55X1)

09160-35007-000 0916035007000

Not available

OIL SEAL (1)

09282-30003-000 0928230003000

Not available

SEAL, OIL(30X43X7)

09283-30040-000

09283-30041-000

$18,97

Unit Price

DISCONTINUE
HOLDER, OIL SEAL

24751-38201-000 2475138201000

Not available

BOLT

01107-06123-000

01500-06123-000

$3,97

Unit Price

DISCONTINUE
HOLDER, BEARING

24752-32400-000

Not available

SCREW

02122-06123-000

02122-0612B-000

$3,97

Unit Price

SCREW

02122-06127-000 0212206127000

$3,97

Unit Price

THIRD PINION CIRCLIP
CIRCLIP

09380-17001-000 0938017001000

$2,97

Unit Price

WASHER

08211-17241-000 0821117241000

$3,97

Unit Price

DISCONTINUE
SPROCKET (NT:15)

27511-32401-000 2751132401000

Not available

SPACER

27531-38300-000 2753138300000

$56,97

Unit Price

O RING (D:2.5, ID:21)

09280-21008-000 0928021008000

$3,97

Unit Price

NUT, ENG SPROCKET
NUT

09140-18008-000 0914018008000

$11,97

Unit Price

ENG SPROCKET WASHER
WASHER

09167-22012-000 0916722012000

$2,97

Unit Price

DISCONTINUE
CHAIN, DRIVE (100LE)

27600-14A10-100

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
