Parts catalogue

Parts diagram

CRANKCASE

CRANKCASE COVER FOR SUZUKI GN 250 1993

CRANKSHAFT

Item numbers

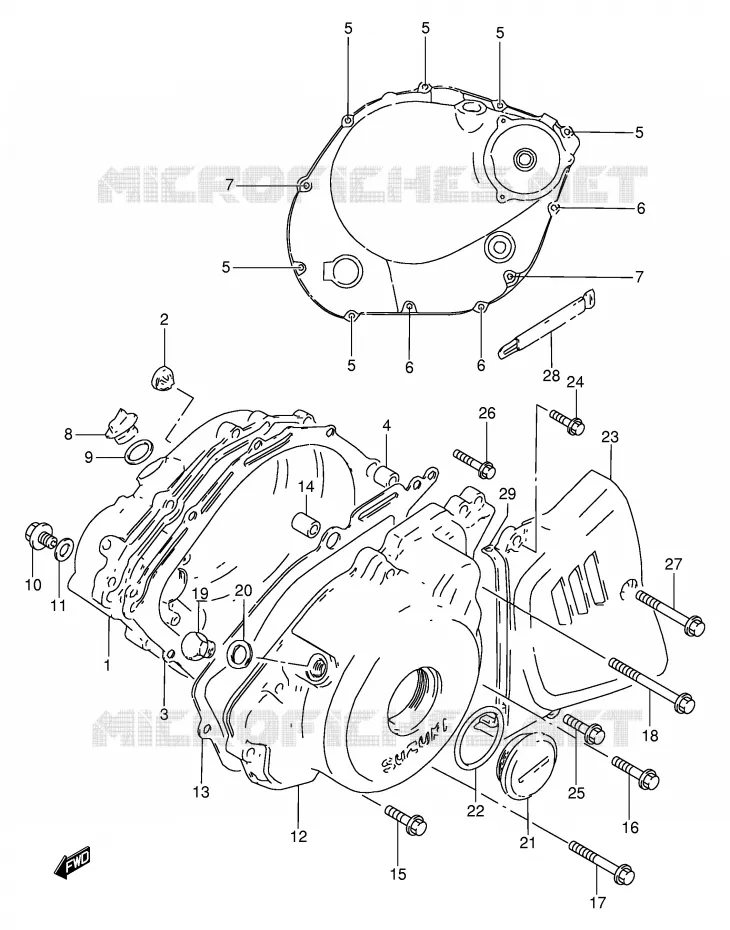

CRANKCASE COVER Suzuki MOTO 250 GN 1993 GN250P(E2)
1
2
3
4
5
5
5
5
5
5
6
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
1
COVER, CLUTCH

11340-38302-000   1134038302000

1134038302000

Unit Price

2
LENS,OIL LEVEL CHECK<br />LENS, OIL LEVEL
LENS, OIL LEVEL CHECK
LENS, OIL LEVEL

11971-45010-000   1197145010000

1197145010000

Unit Price

3
GASKET, CLUTCH COVER

11482-38310-000  

11482-38312-000
 1148238310000

Unit Price

4
PIN

09206-13001-000  

04211-13189-000
 0920613001000

Unit Price

5
BOLT (6X25)
BOLT (6X25)

01547-06257-000   0154706257000

0154706257000

Unit Price

6
BOLT (6X35)
BOLT (6X35)

01547-06357-000   0154706357000

0154706357000

Unit Price

7
BOLT (6X45)
BOLT (6X45)

01547-06457-000   0154706457000

0154706457000

Unit Price

8
PLUG, ENG OIL FILLER
PLUG, OIL FILLER

09259-20007-000   0925920007000

0925920007000

Unit Price

9
O-RING,OIL FILLER<br />O RING
O-RING, OIL FILLER
O RING

09280-17003-000   0928017003000

0928017003000

Unit Price

10
PLUG

09247-14012-000  

09247-14026-000
 0924714012000

Unit Price

11
SPARK PLUG GASKET<br />GASKET
SPARK PLUG GASKET
GASKET

09168-14004-000   0916814004000

0916814004000

Unit Price

12
COVER, MAGNETO

11351-38300-000   1135138300000

1135138300000

Unit Price

13
GASKET, MAGNETO COVER

11483-37D00-000   1148337D00000

1148337D00000

Unit Price

14
PIN

09206-13001-000  

04211-13189-000
 0920613001000

Unit Price

15
BOLT (6X25)
BOLT (6X25)

01547-06257-000   0154706257000

0154706257000

Unit Price

16
BOLT (6X35)
BOLT (6X35)

01547-06357-000   0154706357000

0154706357000

Unit Price

17
BOLT<br />BOLT (6X50)
BOLT
BOLT (6X50)

01547-06507-000   0154706507000

0154706507000

Unit Price

18
BOLT
BOLT (6X60)

01547-06607-000   0154706607000

0154706607000

Unit Price

19
PLUG, T.D.C

09247-12104-000   0924712104000

0924712104000

Unit Price

20
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
21
PLUG

09259-36011-000   0925936011000

0925936011000

Unit Price

22
O-RING,CRANK SHAFT<br />O RING
O-RING, CRANK SHAFT
O RING

09280-33004-000   0928033004000

0928033004000

Unit Price

23
COVER, ENGINE SPROCKET

11361-38300-000   1136138300000

1136138300000

Unit Price

24
BOLT
BOLT (5X20)

01547-05207-000   0154705207000

0154705207000

Unit Price

25
BOLT
BOLT (5X25)

01547-05257-000   0154705257000

0154705257000

Unit Price

26
BOLT (5X30)

01547-05307-000   0154705307000

0154705307000

Unit Price

27
BOLT
BOLT (5X45)

01547-05457-000   0154705457000

0154705457000

Unit Price

27
BOLT (5X45)

01547-05458-000   0154705458000

0154705458000
Not available
28
CLAMP, CARBURETOR AIR VENT

09407-11301-000   0940711301000

0940711301000
Not available
29
DAMPER, ENGINE SPROCKET COVER
DAMPER, SPROCKET COVER

11362-38300-000   1136238300000

1136238300000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 250 GN 1993

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 250 GN 1993

Choose your Suzuki 250 1993 GN model

250 GN 1993 GN250P(E2)

Suzuki GN

Displacement: 250 cc
Year: 1993
Model code GN250P(E2)
