TIMING

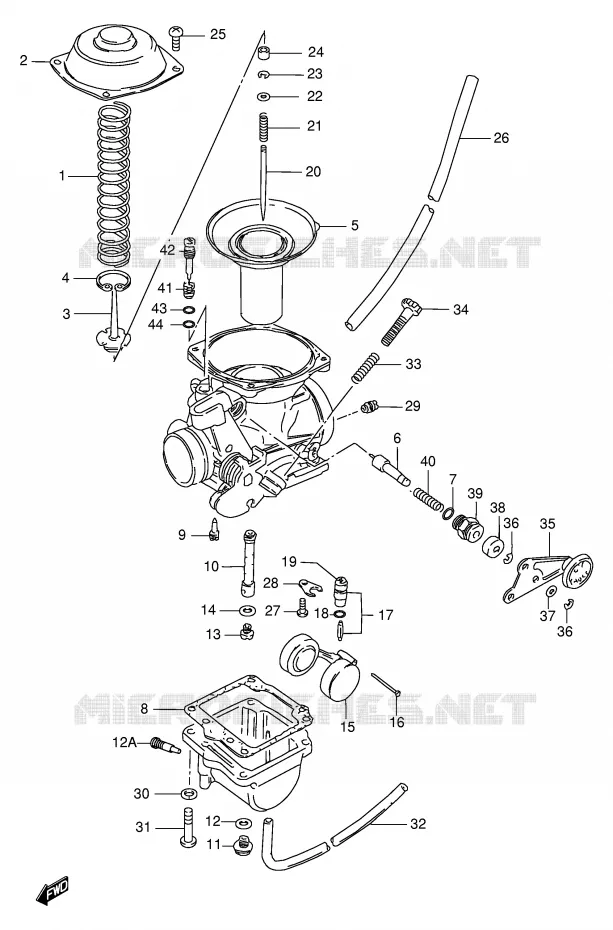

CARBURETOR FOR SUZUKI GN 250 1996

AIR FILTER

Item numbers

SPRING

13503-37100-000 1350337100000

Not available

COVER

13502-38300-000 1350238300000

Not available

DISCONTINUE
HOLDER, GUIDE

13389-44030-000 1338944030000

Not available

DISCONTINUE
CLIP, SPRING

13581-44030-000 1358144030000

Not available

DISCONTINUE
DIAPHRAGM ASSY

13500-38310-000

Not available

DISCONTINUE
DIAPHRAGM ASSY

13500-38350-000

Not available

PLUNGER ASSY

13411-38300-000 1341138300000

Not available

O RING

13278-47090-000

13278-47091-000

$3,97

Unit Price

GASKET, FLOAT CHAMBER

13251-38300-000

13251-37101-000

$18,97

Unit Price

JET, PILOT
JET, PILOT (37.5)

09492-35010-000 0949235010000

$17,97

Unit Price

JET, PILOT
JET, PILOT (42.5)

09492-42010-000 0949242010000

$16,97

Unit Price

DISCONTINUE
JET, NEEDLE (P-1)

09494-00756-000 0949400756000

Not available

PLUG, DRAIN
SCREW, PLUG

13247-44080-000 1324744080000

$16,97

Unit Price

GASKET

13246-44080-000 1324644080000

$6,97

Unit Price

12A

PLUG, DRAIN

13247-13A00-000

13247-02340-000

$8,97

Unit Price

JET, MAIN
JET, MAIN (130)

09491-26011-000 0949126011000

$22,97

Unit Price

WASHER

13382-03110-000 1338203110000

$4,97

Unit Price

FLOAT
FLOAT ASSY

13250-37100-000 1325037100000

$46,97

Unit Price

PIN, FLOAT

13254-92311-000 1325492311000

$3,97

Unit Price

VALVE ASSY, NEEDLE
VALVE ASSY, NEEDLE (2.0)

13370-05530-000 1337005530000

$86,97

Unit Price

VALVE ASSY, NEEDLE

13370-37400-000

13370-24C80-000

$92,97

Unit Price

O RING, NEEDLE VALVE SEAT

13374-44080-000

13374-35C00-000

$7,97

Unit Price

FILTER

13376-84110-000

13376-19F00-000

$15,97

Unit Price

NEEDLE, JET (5DF90-3)

13383-11910-000 1338311910000

Not available

NEEDLE, JET (5DF90-3)

13383-38370-000 1338338370000

Not available

SPRING

13388-44030-000 1338844030000

$10,97

Unit Price

WASHER

13382-44030-000 1338244030000

$6,97

Unit Price

CLIP
E RING

13394-10010-000 1339410010000

$6,97

Unit Price

RING

13387-47010-000 1338747010000

$11,97

Unit Price

SCREW

02112-05103-000

02112-0510B-000

$2,97

Unit Price

SCREW

13602-24A00-000 1360224A00000

Not available

HOSE

09352-50823-600

09352-50005-600

$11,97

Unit Price

SCREW

02112-04063-000

02112-0406B-000

$2,97

Unit Price

PLATE

13373-39110-000 1337339110000

$10,97

Unit Price

DISCONTINUE
JET, PILOT AIR (150)

09493-30003-000 0949330003000

Not available

WASHER, LOCK

08321-01053-000

08321-0105A-000

$2,97

Unit Price

SCREW

02112-05163-000

02112-0516B-000

$2,97

Unit Price

HOSE, 3.5*6.5*600
HOSE (3.5X6.5X600)

09351-35653-600 0935135653600

$9,97

Unit Price

SPRING, THROTTLE SCREW
SPRING

13268-37420-000 1326837420000

$5,97

Unit Price

ADJUSTER

13267-25D00-000 1326725D00000

$17,97

Unit Price

LEVER ASSY, STARTER

13413-38300-000 1341338300000

Not available

LEVER ASSY, STARTER

13413-383A0-000 13413383A0000

Not available

E RING

13415-38300-000 1341538300000

$2,97

Unit Price

WASHER

13427-38300-000 1342738300000

$2,97

Unit Price

CAP, STARTER VALVE
CAP

13682-31210-000 1368231210000

$6,97

Unit Price

GUIDE SCREW, PLUNGER
SCREW, GUIDE

13418-44080-000 1341844080000

$14,97

Unit Price

DISCONTINUE
SPRING

13417-47070-000 1341747070000

Not available

SPRING

13268-47070-000 1326847070000

$6,97

Unit Price

SCREW, PILOT

13279-47080-000

13279-47070-000

$19,97

Unit Price

WASHER

13291-29900-000 1329129900000

$2,97

Unit Price

O RING, PILOT AIR SCREW

13295-29900-000

13295-29901-000

$5,97

Unit Price

99x

CARBURETOR ASSY

13200-38310-000 1320038310000

Not available

99x

CARBURETOR ASSY

13200-38350-000 1320038350000

Not available

99x

CARBURETOR ASSY

13200-38381-000 1320038381000

Not available

99x

CARBURETOR ASSY

13200-383A1-000 13200383A1000

Not available

99x

CARBURETOR ASSY

13200-383C0-000 13200383C0000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
