FUEL TANK (MODEL T / W) REFER TO FIG.37A(F-9) FOR MODEL X

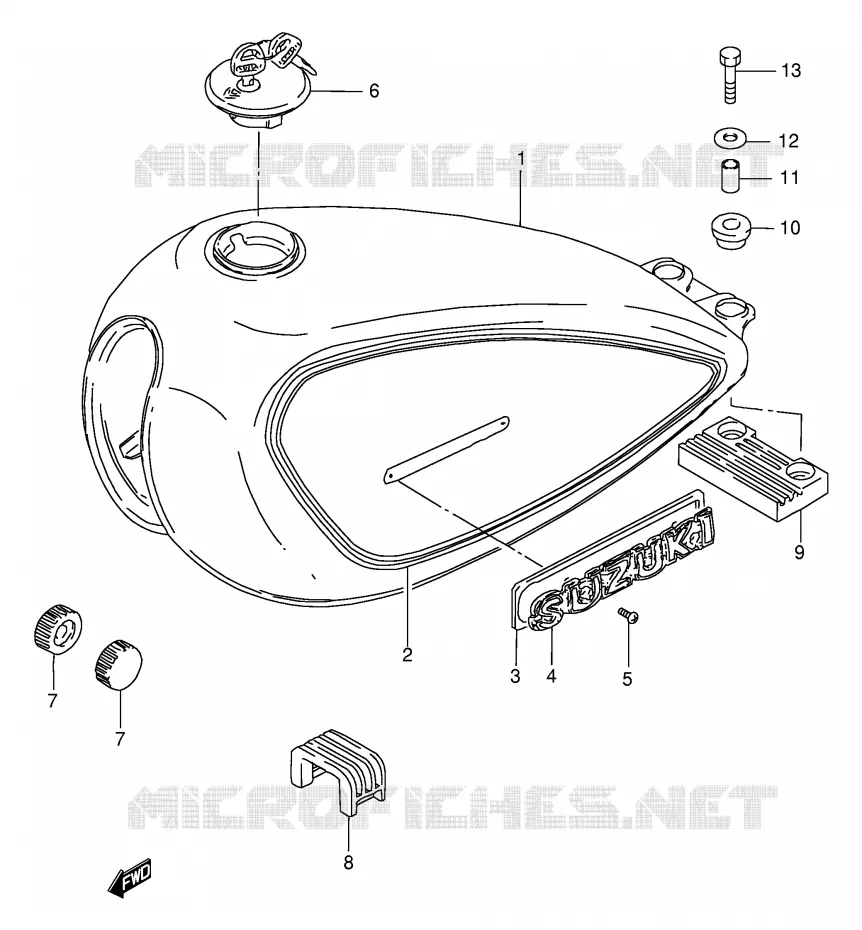

FUEL TANK (MODEL X) FOR SUZUKI GN 250 1996

FUEL TANK (MODEL Y)

Item numbers

FUEL TANK (MODEL X) Suzuki MOTO 250 GN 1996 GN250T(E2)

1

TANK ASSY, FUEL (BLUE)

44100-38340-1LF 44100383401LF

Not available

1

TANK ASSY, FUEL (BLACK)

44100-38340-2AX 44100383402AX

Not available

1

TANK ASSY, FUEL (RED)

44100-38340-2HX 44100383402HX

Not available

1

TANK ASSY, FUEL (BLACK)

44100-383D0-2AX 44100383D02AX

Not available

1

TANK ASSY, FUEL (RED)

44100-383D0-2HX 44100383D02HX

Not available

2

TAPE SET, FUEL TANK

68110-38330-L0W 6811038330L0W

Not available

2

TAPE SET, FUEL TANK

68110-38330-L0Y 6811038330L0Y

Not available

2

TAPE SET, FUEL TANK

68110-38330-L0Z 6811038330L0Z

Not available

3

CUSHION

44175-44200-000 4417544200000

Not available

4

EMBLEM, FUEL TANK
EMBLEM

68111-15500-000 6811115500000

$48,97

Unit Price

5

SCREW

02122-03063-000

02122-0306B-000

$3,97

Unit Price

6

DISCONTINUE
CAP, FUEL

44200-30830-000

Not available

7

CUSHION
CUSHION, FRONT

09329-10016-000 0932910016000

$5,97

Unit Price

8

CUSHION, TANK UPR FR
CUSHION, UPPER FRONT

44541-38200-000 4454138200000

$11,97

Unit Price

9

CUSHION, TANK RR NO.1
CUSHION, UPPER REAR

44542-38300-000 4454238300000

$15,97

Unit Price

10

CUSHION
CUSHION, REAR, NO.2

09320-10022-000 0932010022000

$4,97

Unit Price

11

CHAIN GUIDE LOW SPAC
SPACER

09180-06067-000 0918006067000

$3,97

Unit Price

12

WASHER(6.5X22X1.6)
WASHER

09160-06054-000 0916006054000

$2,97

Unit Price

13

BOLT

09100-06033-000 0910006033000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
