Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HEADLIGHT (E4)

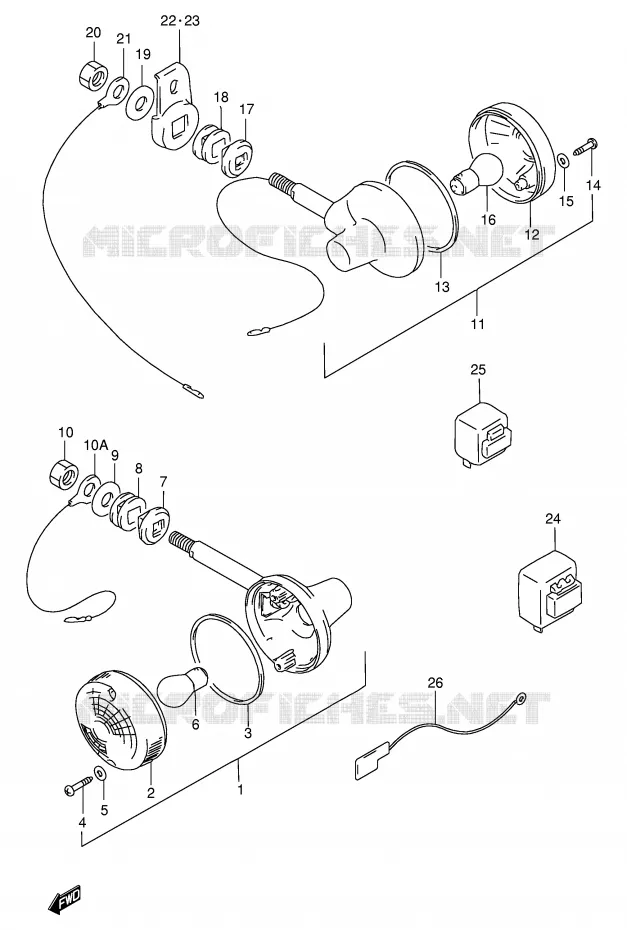

INDICATORS (MODEL T / W / X E2,E4,E22,E24,E34,E71) FOR SUZUKI GN 250 1999

INDICATORS (MODEL T / W / X E1,P37) REFER TO FIG.26 (E-4) FOR MODEL T/W/X E25,E39,E54

Item numbers

DISCONTINUE
LAMP ASSY, FRONT TURN SIGNAL

35601-39370-999 3560139370999

Not available

LENS

35612-02460-000 3561202460000

Not available

GASKET

35613-28620-000 3561328620000

$14,97

Unit Price

.TAPPING SCREW

03211-04208-000 0321104208000

Not available

GASKET

35627-43010-000 3562743010000

$2,97

Unit Price

BULB(12V60/55W, H4)
BULB (12V, 21W)

09471-12045-000 0947112045000

$5,97

Unit Price

SPACER

35695-36590-000 3569536590000

Not available

CUSHION

35690-32200-000

35690-32201-000

$67,97

Unit Price

WASHER
WASHER (10.5X30X2.3)

09160-10501-000 0916010501000

$3,97

Unit Price

NUT

08310-00103-000

08310-0010B-000

$3,97

Unit Price

10A

LEAD WIRE, EARTH

36660-33000-000 3666033000000

$9,97

Unit Price

LAMP ASSY, REAR TURN SIGNAL

35603-26420-999 3560326420999

Not available

LAMP ASSY, REAR TURN SIGNAL

35603-39380-000 3560339380000

Not available

LENS

35652-02470-000 3565202470000

Not available

GASKET

35613-28620-000 3561328620000

$14,97

Unit Price

.TAPPING SCREW

03211-04208-000 0321104208000

Not available

GASKET

35627-43010-000 3562743010000

$2,97

Unit Price

BULB(12V60/55W, H4)
BULB (12V, 21W)

09471-12045-000 0947112045000

$5,97

Unit Price

SPACER

35695-36590-000 3569536590000

Not available

CUSHION

09320-15004-000 0932015004000

Not available

WASHER
WASHER (10.5X30X2.3)

09160-10501-000 0916010501000

$3,97

Unit Price

NUT

08310-00107-000 0831000107000

$3,97

Unit Price

LEAD WIRE, EARTH

36862-44000-000 3686244000000

$7,97

Unit Price

BRACKET, RR TURNSIGNAL LAMP, R
BRACKET, RH

35621-38300-000 3562138300000

$17,97

Unit Price

BRACKET, RR TURNSIGNAL LAMP, L
BRACKET, LH

35641-38300-000 3564138300000

$17,97

Unit Price

RELAY ASSY, TURNSIGNAL
RELAY, TURN SIGNAL

38610-31X50-000 3861031X50000

$81,97

Unit Price

RELAYASSY, TURN

38610-06F00-000

38610-06F01-000

$105,97

Unit Price

DISCONTINUE
WIRE, TURN SIGNAL RELAY

36851-35010-000 3685135010000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Choose your Suzuki 250 1999 GN model
