Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CHAIN GUARD

REAR WHEEL (GN250T / W / X / Y) FOR SUZUKI GN 250 2000

REAR WHEEL (GN250ET / EW / EX / EY)

Item numbers

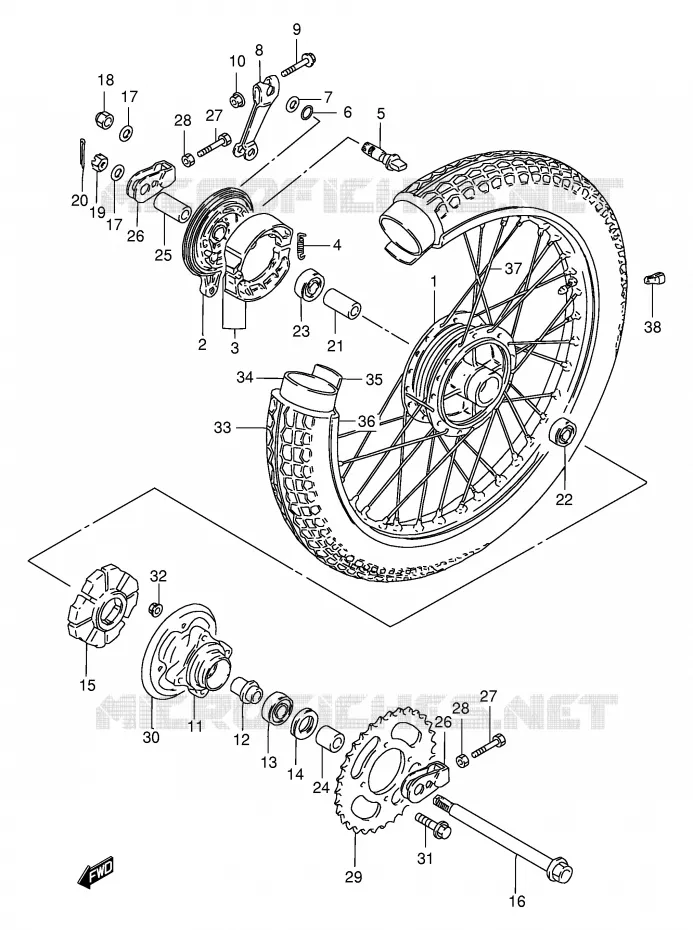

REAR WHEEL (GN250T/W/X/Y) Suzuki MOTO 250 GN 2000 GN250EY(E2)
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
26
27
27
28
28
29
30
31
32
33
33
34
35
36
37
38
38
1
HUB, RR WHEEL
HUB, REAR WHEEL

64110-07005-000   6411007005000

6411007005000

Unit Price

2
PANEL, RR BRAKE ANCHOR
PANEL, REAR BRAKE ANCHOR

64210-39104-000   6421039104000

6421039104000

Unit Price

2
PANEL, RR BRAKE ANCHOR
PANEL, REAR BRAKE ANCHOR

64210-39115-000   6421039115000

6421039115000

Unit Price

3
SHOE SET, BRAKE

54401-07820-000   5440107820000

5440107820000

Unit Price

4
SPRING
SPRING

09443-07001-000   0944307001000

0944307001000

Unit Price

5
CAM, BRAKE

54441-29305-000   5444129305000

5444129305000

Unit Price

6
O RING,02.5,ID:13.8<br />O RING (ID:13.8,D:2.50)
O RING, 02.5, ID:13.8
O RING (ID:13.8, D:2.50)

09280-14011-000   0928014011000

0928014011000

Unit Price

7
WASHER

09160-14055-000   0916014055000

0916014055000

Unit Price

8
LEVER, RR BRAKE CAM
LEVER, BRAKE CAM

64451-30501-000   6445130501000

6445130501000

Unit Price

9
BOLT
BOLT

01550-06407-000   0155006407000

0155006407000

Unit Price

10
NUT
NUT

08316-10067-000   0831610067000

0831610067000

Unit Price

11
DRUM, RR SPROCKET MOUNTING
DRUM, SPROCKET MOUNTING

64610-38300-000   6461038300000

6461038300000

Unit Price

12
RETAINER, RR SPROCKET DRUM
RETAINER, MOUTING DRUM

64733-38300-000   6473338300000

6473338300000

Unit Price

13
BEARING

09262-20069-000  

09262-20121-000
 0926220069000

Unit Price

14
OIL SEAL,SPROCKET
OIL SEAL, SPROCKET

09285-28001-000  

09285-28004-000
 0928528001000

Unit Price

15
ABSORBER ASSY,HUB SHOCK<br />SHOCK ABSORBER, HUB
ABSORBER ASSY, HUB SHOCK
SHOCK ABSORBER, HUB

64651-07001-000   6465107001000

6465107001000

Unit Price

16
AXLE, REAR

64711-32101-000   6471132101000

6471132101000
Not available
17
WASHER

08322-01143-000  

08322-0114A-000
 0832201143000

Unit Price

18
NUT

09159-14008-000   0915914008000

0915914008000
Not available
19
NUT

09141-14001-000   0914114001000

0914114001000

Unit Price

20
PIN

04111-30308-000  

04111-3030A-000
 0411130308000

Unit Price

21
SPACER(15.3X21.7X63)<br />SPACER, WHEEL BEARING (15.3X21.7X63)
SPACER(15.3X21.7X63)
SPACER, WHEEL BEARING (15.3X21.7X63)

09180-15011-000   0918015011000

0918015011000

Unit Price

22
B. BEARING 15X35X11<br />BEARING, WHEEL LH
B. BEARING 15X35X11
BEARING, WHEEL LH

08143-62027-000   0814362027000

0814362027000

Unit Price

23
BALL BEARING KOYO<br />BEARIGG, WHEEL RH
BALL BEARING KOYO
BEARIGG, WHEEL RH

08153-63027-000   0815363027000

0815363027000

Unit Price

24
SPACER, AXLE LH (15X28X24.80)

09180-15061-000   0918015061000

0918015061000
Not available
25
SPACER(15X22X46.8)
SPACER, AXLE RH (15X22X46.80)

09180-15060-000   0918015060000

0918015060000

Unit Price

26
ADJUSTER, CHAIN

61410-38301-000   6141038301000

6141038301000
Not available
27
BOLT<br />BOLT (8X50)
BOLT
BOLT (8X50)

09104-08034-000   0910408034000

0910408034000

Unit Price

28
NUT

08310-00083-000  

08310-0008B-000
 0831000083000

Unit Price

29
SPROCKET, RR(NT:41-520)
SPROCKET, REAR (NT:41)

64511-38301-000   6451138301000

6451138301000

Unit Price

30
GUIDE, RR SPROCKETCHAIN
GUIDE, CHAIN

64618-38300-000   6461838300000

6461838300000

Unit Price

31
BOLT (10X40)
BOLT (10X40)

09103-10044-000   0910310044000

0910310044000

Unit Price

32
NUT
NUT

08319-31107-000   0831931107000

0831931107000

Unit Price

33
DISCONTINUE
TIRE, REAR (4.60S 16) BRIDGESTONE

65100-38330-000   6510038330000

6510038330000
Not available
33
DISCONTINUE
TIRE, REAR (120/90-16) BRIDGESTONE

65100-38370-000   6510038370000

6510038370000
Not available
34
TUBE ASSY, WHEEL INNER

65200-37300-000   6520037300000

6520037300000
Not available
35
DISCONTINUE
PROTECTOR, INNER TUBE

65261-37320-000   6526137320000

6526137320000
Not available
36
RIM, REAR WHEEL (2.15X16)

65311-38300-000   6531138300000

6531138300000
Not available
37
DISCONTINUE
SPOKE SET, REAR WHEEL

65320-38301-000   6532038301000

6532038301000
Not available
38
BALANCER, WHEEL(15G)

55411-11000-000  

55411-26G00-000
 5541111000000

Unit Price

38
BALANCER, WHEEL(30G)

55412-11000-000  

55413-41F00-000
 5541211000000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
