Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TAIL LIGHT (MODEL T / W / X E22) REFER TO FIG.28 (E- 7) FOR MODEL T/W/X E1,E2,E4,E24,E34,P37,E71

TAIL LIGHT (MODEL T / W / X E1,E2,E4,E24,E34,P37,E71) FOR SUZUKI GN 250 2000

TAIL LIGHT (MODEL T / W / X E25,E39,E54) REFER TO FIG.29A(E-9) FOR MODEL Y

Item numbers

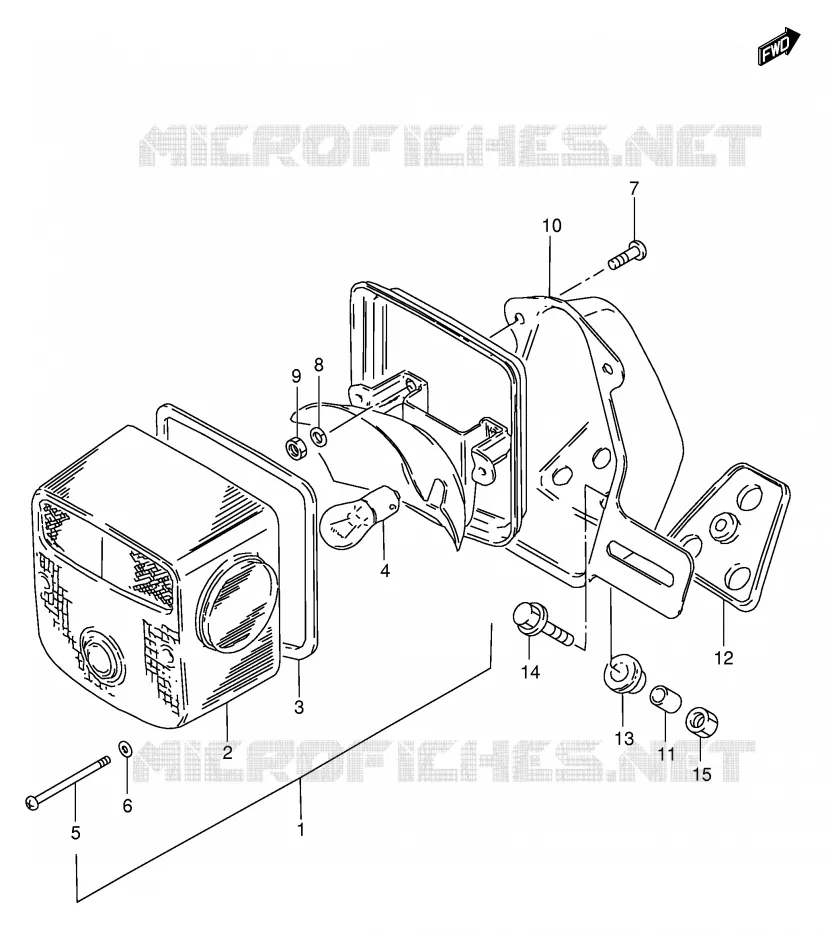

TAIL LIGHT (MODEL T/W/X E1,E2,E4,E24,E34,P37,E71) Suzuki MOTO 250 GN 2000 GN250Y(E2)
1
1
2
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
1
LAMP UNIT, TAIL

35720-05311-999   3572005311999

3572005311999
Not available
1
LAMP UNIT, TAIL

35720-38350-000   3572038350000

3572038350000
Not available
2
LENS
LENS

35712-38350-000   3571238350000

3571238350000
Not available
2
LENS

35712-48624-000   3571248624000

3571248624000
Not available
3
DISCONTINUE<br />GASKET
DISCONTINUE
GASKET

35713-30510-000   3571330510000

3571330510000
Not available
4
BULB(14V1.4W,T5)<br />BULB (12V,23/8W)
BULB(14V1.4W, T5)
BULB (12V, 23/8W)

09471-12035-000   0947112035000

0947112035000

Unit Price

4
BULB(12V1.4W G30)<br />BULB (12V 21/5W)
BULB(12V1.4W G30)
BULB (12V 21/5W)

09471-12083-000   0947112083000

0947112083000

Unit Price

5
SCREW

09125-04002-000  

02112-04558-000
 0912504002000

Unit Price

6
GASKET
GASKET

35627-43010-000   3562743010000

3562743010000

Unit Price

7
SCREW
SCREW

02112-06127-000   0211206127000

0211206127000

Unit Price

8
WASHER,LOCK<br />LOCK WASHER
WASHER, LOCK
LOCK WASHER

08321-01067-000   0832101067000

0832101067000

Unit Price

9
NUT
NUT

08310-00067-000   0831000067000

0831000067000

Unit Price

10
BRACKET UNIT

35730-38310-000   3573038310000

3573038310000
Not available
11
SPACER

35766-26470-000   3576626470000

3576626470000

Unit Price

12
CUSHION

35765-26470-000   3576526470000

3576526470000
Not available
13
CUSHION

35764-26470-000   3576426470000

3576426470000

Unit Price

14
BOLT<br />BOLT (6X20)
BOLT
BOLT (6X20)

09116-06167-000   0911606167000

0911606167000

Unit Price

15
08310-0006A
NUT

08310-00063-000  

0831000063000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
