Finish line

Parts catalogue

Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI GN 250 2001

GEAR SHIFTING ASSY

Item numbers

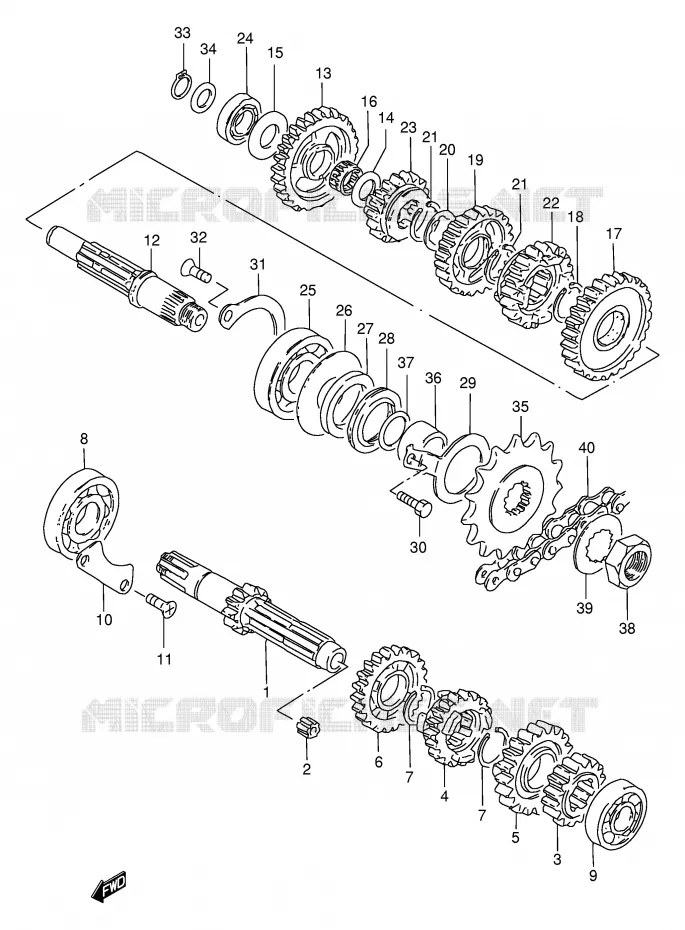

TRANSMISSION Suzuki MOTO 250 GN 2001 GN250K1(E2)
1
2
3
4
5
6
7
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
34
35
36
37
38
39
40
1
SHAFT, COUNTER(NT:11)

24120-38202-000  

24120-38203-000
 2412038202000

Unit Price

2
BUSH

24125-38201-000   2412538201000

2412538201000

Unit Price

3
GEAR, 2ND DRIVE (NT:16)

24221-32412-000   2422132412000

2422132412000

Unit Price

4
GEAR, 3RD DRIVE (NT:19)

24231-38201-000   2423138201000

2423138201000

Unit Price

5
DISCONTINUE
GEAR, 4TH DRIVE (NT:20)

24241-32401-000   2424132401000

2424132401000
Not available
6
GEAR, 5TH DRIVE (NT:22)

24251-32402-000   2425132402000

2425132402000
Not available
7
4TH DRIVE GR CIRCLIP
CIRCLIP

09380-22006-000   0938022006000

0938022006000

Unit Price

8
BEARING 22 X 56 X 16
BEARING, RH (22X56X16)

09262-22028-000   0926222028000

0926222028000

Unit Price

9
BALL BEARING<br />BEARING, LH (17X40X12)
BALL BEARING
BEARING, LH (17X40X12)

09262-17027-000   0926217027000

0926217027000

Unit Price

9
BEARING, 17X40X12

09262-17045-000  

09262-17046-000
 0926217045000

Unit Price

10
RETAINER, CNTR SHAFT BEARING
HOLDER, BEARING

24741-38200-000   2474138200000

2474138200000

Unit Price

11
SCREW

02112-06123-000  

02112-3612A-000
 0211206123000

Unit Price

12
SHAFT, DRIVE
DRIVESHAFT

24130-38301-000   2413038301000

2413038301000

Unit Price

13
GEAR, 1ST DRIVEN (NT:29)

24311-32401-000   2431132401000

2431132401000

Unit Price

14
WASHER<br />WASHER, LH (17X28X1.0)
WASHER
WASHER, LH (17X28X1.0)

09181-17195-000   0918117195000

0918117195000

Unit Price

15
WASHER, RH

08211-17363-000   0821117363000

0821117363000
Not available
16
BEARING (17X21X9.8)

09263-17004-000   0926317004000

0926317004000

Unit Price

17
GEAR, 2ND DRIVEN (NT:27)

24320-32411-000   2432032411000

2432032411000

Unit Price

18
4TH DRIVE GR CIRCLIP
CIRCLIP

09380-22006-000   0938022006000

0938022006000

Unit Price

19
GEAR, 3RD DRIVEN (NT:24)

24330-38202-000   2433038202000

2433038202000

Unit Price

20
DRIVEN GEAR WASHER<br />WASHER (22.1X27X0.5)
DRIVEN GEAR WASHER
WASHER (22.1X27X0.5)

09167-22011-000   0916722011000

0916722011000

Unit Price

21
4TH DRIVE GR CIRCLIP
CIRCLIP

09380-22006-000   0938022006000

0938022006000

Unit Price

22
GEAR, 4TH DRIVEN (NT:20)

24341-38201-000   2434138201000

2434138201000

Unit Price

23
GEAR, 5TH DRIVEN (NT:18)

24351-38201-000   2435138201000

2435138201000

Unit Price

24
BEARING(17X36X12)
BEARING, RH (17X36X12)

09264-17001-000   0926417001000

0926417001000

Unit Price

25
BEARING(22X56X16)
BEARING, LH (22X56X16)

09262-22013-000   0926222013000

0926222013000

Unit Price

26
WASHER (35X55X1)

09160-35007-000   0916035007000

0916035007000
Not available
27
OIL SEAL (1) (30X43X5)

09282-30003-000   0928230003000

0928230003000
Not available
28
SEAL, OIL(30X43X7)

09283-30040-000  

09283-30041-000
 0928330040000

Unit Price

29
DISCONTINUE
HOLDER, OIL SEAL

24751-38201-000   2475138201000

2475138201000
Not available
30
BOLT

01500-06123-000  

01500-0612A-000
 0150006123000

Unit Price

31
DISCONTINUE
HOLDER, BEARING

24752-32400-000  

2475232400000
Not available
32
SCREW

02122-06123-000  

02122-0612B-000
 0212206123000

Unit Price

33
CIRCLIP

08331-31176-000  

08331-31179-000
 0833131176000

Unit Price

33
THIRD PINION CIRCLIP<br />CIRCLIP
THIRD PINION CIRCLIP
CIRCLIP

09380-17001-000   0938017001000

0938017001000

Unit Price

34
WASHER

08211-17241-000   0821117241000

0821117241000

Unit Price

34
WASHER
WASHER (17X24X1.0)

09181-17139-000   0918117139000

0918117139000

Unit Price

35
DISCONTINUE
SPROCKET (NT:15)

27511-32401-000   2751132401000

2751132401000
Not available
36
SPACER

27531-38300-000   2753138300000

2753138300000

Unit Price

37
O RING (D:2.5,ID:21)
O RING (D:2.5, ID:21)

09280-21008-000   0928021008000

0928021008000

Unit Price

38
NUT, ENG SPROCKET
NUT

09140-18008-000   0914018008000

0914018008000

Unit Price

39
ENG SPROCKET WASHER
WASHER (22.5X40.3X0.8)

09167-22012-000   0916722012000

0916722012000

Unit Price

40
DISCONTINUE
CHAIN, DRIVE (DID520VC5, 100LE)

27600-14A10-100  

2760014A10100
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
