STAND - REAR BRAKE

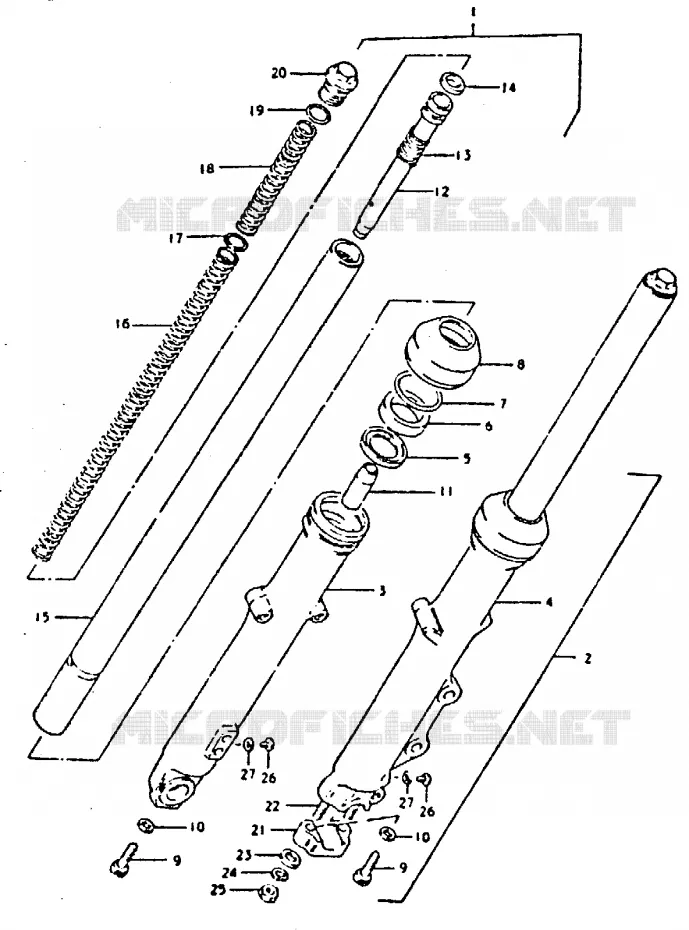

FRONT FORK (GS250TT) FOR SUZUKI GS 250 1999

FRONT FORK (GS250TX) FIG. 38 (F-3) : GS250TX

DAMPER ASSY, RH

51103-11410-000 5110311410000

Not available

DAMPER ASSY, LH

51104-11410-000 5110411410000

Not available

OUTER TUBE, RH

51130-44033-000 5113044033000

Not available

OUTER TUBE, LH

51140-44031-000 5114044031000

Not available

SPACER, OIL SEAL
SPACER

51168-44030-000 5116844030000

$9,97

Unit Price

DISCONTINUED

51153-44031-000 5115344031000

Not available

RING, OIL SEAL STOPPER

51156-33130-000

51156-02B00-000

$10,97

Unit Price

DISCONTINUED

51571-33131-000 5157133131000

Not available

BOLT(8X27)
BOLT

51147-48130-000 5114748130000

$6,97

Unit Price

GASKET

51148-31030-000

51148-36011-000

$5,97

Unit Price

PIECE, OIL LOCK

51195-48000-000 5119548000000

$19,97

Unit Price

CYLINDER

51146-11400-000 5114611400000

Not available

SPRING

51177-36030-000 5117736030000

Not available

RING, PISTON

51196-33130-000 5119633130000

$14,97

Unit Price

DISCONTINUE
INNER TUBE

51110-44030-000 5111044030000

Not available

DISCONTINUED

51171-44140-000 5117144140000

Not available

SEAT, SPRING

51172-36331-000 5117236331000

Not available

DISCONTINUED

51184-44140-000 5118444140000

Not available

O RING

51181-31030-000 5118131030000

$6,97

Unit Price

BOLT

51351-33130-000 5135133130000

Not available

DISCONTINUE
HOLDER, AXLE

51132-31030-000 5113231030000

Not available

BOLT, STUD

01421-08258-000

01421-0825A-000

$3,97

Unit Price

WASHER

08322-21088-000

08322-01087-000

$2,97

Unit Price

8 MM LOCK WASHER

08321-21088-000

08321-01087-000

$2,97

Unit Price

NUT

09140-08005-000

09140-08017-000

$3,97

Unit Price

SCREW

02112-04068-000

02112-0406B-000

$2,97

Unit Price

DISCONTINUE
GASKET

51183-33030-000 5118333030000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK (GS250TT) of your Suzuki of GS. Let us know if you have any questions.
