TRANSMISSION

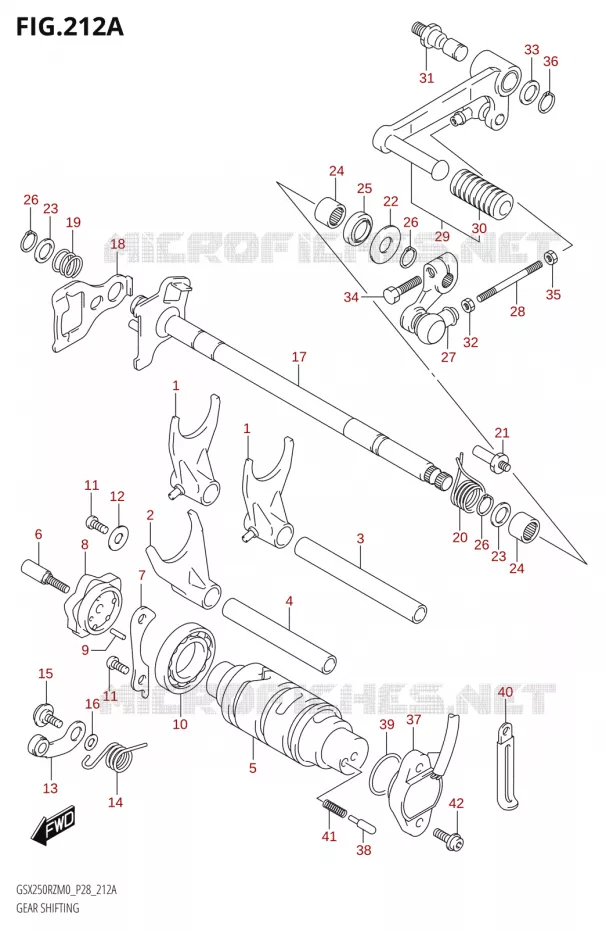

GEAR SHIFTING ASSY FOR SUZUKI GSX-R 250 2020

FUEL EVAP SYSTEM

FORK, GEAR SHIFT NO.1

25211-48H00-000 2521148H00000

$9,97

Unit Price

FORK, GEAR SHIFT NO.2

25221-48H00-000 2522148H00000

$9,97

Unit Price

SHAFT, GEAR SHIFT FORK NO.1

25411-48H00-000 2541148H00000

$7,97

Unit Price

SHAFT, GEAR SHIFT FORK NO.2

25421-48H00-000 2542148H00000

$6,97

Unit Price

CAM, GEAR SHIFT

25311-48H00-000 2531148H00000

$27,97

Unit Price

STOPPER, SHIFT CAM DRIVE PLATE

25312-48H00-000 2531248H00000

$4,97

Unit Price

RETAINER, SHIFT CAM BRG NO.1
RETAINER, SHIFT CAM BEARING

25341-48H00-000 2534148H00000

$2,97

Unit Price

25380-48H10
PLATE, GEAR SHIFT CAM

25380-48H02-000 2538048H02000

Not available

PIN (3X9.8)

09261-03002-000 0926103002000

$1,97

Unit Price

BEARING (25X47X8)

09262-25L01-000 0926225L01000

$11,97

Unit Price

SCREW

02112-0612A-000

02112-0612B-000

$2,97

Unit Price

WASHER

08211-06183-000 0821106183000

$1,97

Unit Price

STOPPER, GEAR SHIFT CAM

25350-48H00-000 2535048H00000

$8,97

Unit Price

SPRING, GEAR SHIFT CAM STOPPER

25355-48H00-000 2535548H00000

$2,97

Unit Price

BOLT (6X14.5)

09106-06131-000 0910606131000

$3,97

Unit Price

WASHER, THRUST
WASHER

08211-06121-000 0821106121000

$3,97

Unit Price

SHAFT, GEAR SHIFT

25510-48H00-000 2551048H00000

$33,97

Unit Price

PLATE, GEAR SHIFT CAM DRIVE

25512-48H10-000 2551248H10000

$8,97

Unit Price

SPRING, GEAR SHIFT PLATE RETURN
SPRING, SHIFT PLATE RETURN

25515-48H01-000 2551548H01000

$3,97

Unit Price

SPRING, SHIFT SHAFT RETURN

25518-48H00-000 2551848H00000

$3,97

Unit Price

STOPPER, GEAR SHIFT ARM

25671-16H10-000 2567116H10000

$7,97

Unit Price

WASHER (14X29X0.8)

09160-14069-000 0916014069000

$4,97

Unit Price

WASHER (14X22X1)

09160-14070-000 0916014070000

$2,97

Unit Price

BEARING
BEARING (14X20X12)

09263-14035-000 0926314035000

$8,97

Unit Price

SEAL, OIL(14X22X7.3)
OIL SEAL (14X22X7.3)

09283-14L01-000 0928314L01000

$6,97

Unit Price

CIRCLIP

08331-31149-000 0833131149000

Not available

ARM, GEAR SHIFT LINK

25520-48H20-000 2552048H20000

$17,97

Unit Price

ROD, GEAR SHIFT LINK

25525-20K00-000 2552520K00000

$3,97

Unit Price

LEVER ASSY, GEAR SHIFT

25600-48H20-000 2560048H20000

$88,97

Unit Price

.RUBBER, GEAR SHIFT PEDAL

25652-48H00-000 2565248H00000

$8,97

Unit Price

SHAFT, GEAR SHIFT LEVER

25617-03F20-000 2561703F20000

$12,97

Unit Price

NUT

08310-0006A-000

Not available

SEAL WASHER
WASHER (12.5X20X1)

09160-12011-000

Not available

BOLT

01500-0620A-000 015000620A000

$2,97

Unit Price

NUT

09140-06031-000 0914006031000

$2,97

Unit Price

CIRCLIP

08331-3112A-000 083313112A000

$2,97

Unit Price

BASE ASSY, GEAR SHIFT TERM

37730-20K00-000 3773020K00000

Not available

CONTACT

09209-05024-000 0920905024000

$2,97

Unit Price

O RING
O RING (D:2.4, ID:26.2)

09280-26005-000 0928026005000

Not available

CLAMP(L:65)

09404-06206-000

09404-06432-000

$3,97

Unit Price

K S PAWL SPRING
SPRING

09440-04010-000 0944004010000

$2,97

Unit Price

BOLT

07120-0516B-000 071200516B000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
