REAR CALIPER

REAR MASTER CYLINDER FOR SUZUKI GSX-R 250 2020

OPTIONS

Item numbers

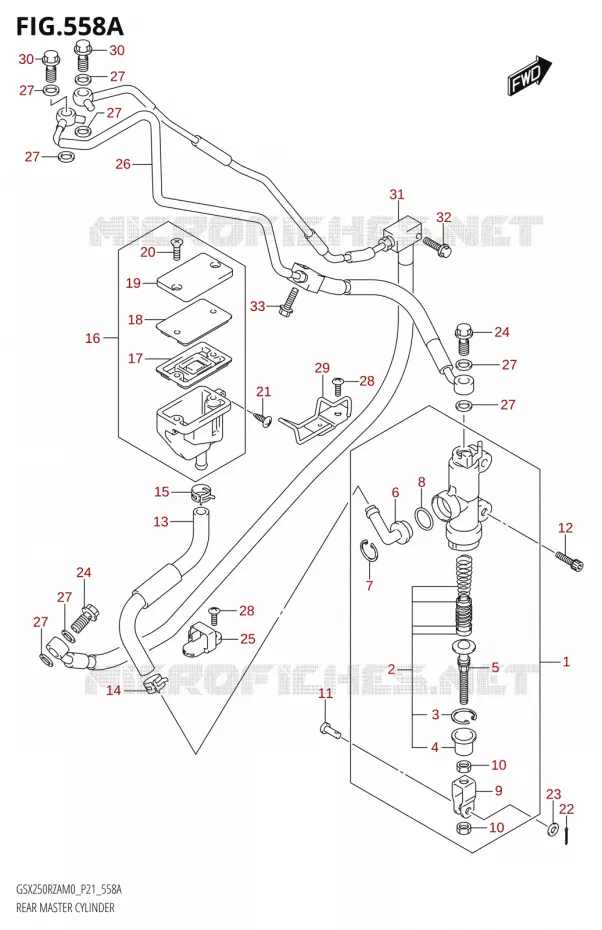

REAR MASTER CYLINDER Suzuki MOTO 250 GSX-R 2020 GSX250RZA M0 P21
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
27
27
27
27
27
27
27
28
28
29
30
30
31
32
33
1
CYLINDER ASSY, REAR MASTER

69600-20K00-000   6960020K00000

6960020K00000

Unit Price

2
.PISTON/CUP SET

69600-40820-000   6960040820000

6960040820000

Unit Price

3
..CIRCLIP

69665-47H00-000   6966547H00000

6966547H00000

Unit Price

4
BOOT

69691-04A00-000  

69691-00A00-000
 6969104A00000

Unit Price

5
.ROD, PUSH

69670-48H10-000   6967048H10000

6967048H10000

Unit Price

6
.CONNECTOR
.CONNECTOR

69672-00B20-000   6967200B20000

6967200B20000

Unit Price

7
.CIRCLIP
.CIRCLIP

69674-00B20-000   6967400B20000

6967400B20000

Unit Price

8
O RING CONECTOR<br />.O RING
O RING CONECTOR
.O RING

69686-34200-000   6968634200000

6968634200000

Unit Price

9
.YOKE

69692-44H00-000   6969244H00000

6969244H00000

Unit Price

10
.NUT
.NUT

69693-05A00-000   6969305A00000

6969305A00000

Unit Price

11
PIN
PIN, REAR MASTER CYLINDER

69697-48H00-000   6969748H00000

6969748H00000

Unit Price

12
BOLT
BOLT, REAR MASTER CYLINDER

69698-48H00-000   6969848H00000

6969848H00000

Unit Price

13
HOSE COMP, RR RESERVOIR TANK
HOSE, REAR RESERVOIR TANK

69730-20K00-000   6973020K00000

6973020K00000

Unit Price

14
CLIP, RR RSVR TANK HOSE LWR
CLIP, HOSE LOWER

69735-48H00-000   6973548H00000

6973548H00000

Unit Price

15
CLIP, RR RSVR TANK HOSE UPR
CLIP, HOSE UPPER

69735-48H10-000   6973548H10000

6973548H10000

Unit Price

16
TANK ASSY, REAR RESERVOIR

69740-48H50-000   6974048H50000

6974048H50000

Unit Price

17
.DIAPHRAGM

69667-48H00-000   6966748H00000

6966748H00000

Unit Price

18
.PLATE, DIAPHRAGM

69668-48H00-000   6966848H00000

6966848H00000

Unit Price

19
.CAP

69669-48H50-000   6966948H50000

6966948H50000

Unit Price

20
.SCREW

69689-48H10-000   6968948H10000

6968948H10000

Unit Price

21
BOLT

01547-0616A-000   015470616A000

015470616A000

Unit Price

22
PIN<br />COTTER PIN
PIN
COTTER PIN

04111-2015A-000   041112015A000

041112015A000

Unit Price

23
WASHER
WASHER

08322-0106A-000   083220106A000

083220106A000

Unit Price

24
BOLT, BRAKE FLUID

59492-48H00-000   5949248H00000

5949248H00000

Unit Price

25
GUIDE, RR BRAKE HOSE
GUIDE, REAR BRAKE HOSE

61196-48H00-000   6119648H00000

6119648H00000

Unit Price

26
HOSE ASSY, RR BK MASTER TO UNIT

69200-20K00-000   6920020K00000

6920020K00000

Unit Price

27
WASHER, BRAKE FLUID

59464-48H00-000   5946448H00000

5946448H00000

Unit Price

28
SCREW
SCREW

02142-0616A-000   021420616A000

021420616A000

Unit Price

29
GUIDE COMP, REAR BRAKE HOSE
GUIDE, REAR BRAKE HOSE

69260-20K00-000   6926020K00000

6926020K00000

Unit Price

30
BOLT, BRAKE FLUID(M10X1.25)
BOLT, BRAKE FLUID

59492-48H20-000   5949248H20000

5949248H20000

Unit Price

31
HOSE ASSY, UNIT TO RR BK CLPR

69400-20K00-000   6940020K00000

6940020K00000

Unit Price

32
BOLT

01547-0616A-000   015470616A000

015470616A000

Unit Price

33
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
