CRANKCASE COVER

OIL PAN - OIL PUMP FOR SUZUKI GSX-R 250 2023

CRANKSHAFT

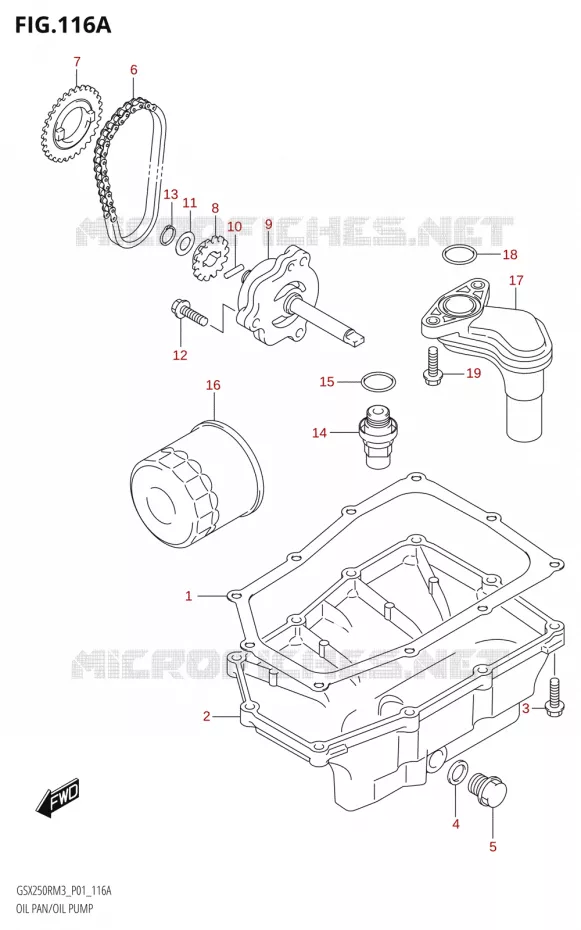

OIL PAN - OIL PUMP Suzuki MOTO 250 GSX-R 2023 GSX250RRLJ M3 (P01)
1
GASKET, OIL PAN
GASKET, OIL PAN(ASB)

11489-48H00-000   1148948H00000

1148948H00000

Unit Price

2
PAN, OIL

11511-48H00-000   1151148H00000

1151148H00000

Unit Price

3
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

4
GASKET(13.8X18.
GASKET(13.8X18.8X4.8)

09168-14L01-000   0916814L01000

0916814L01000

Unit Price

5
PLUG(14X12)

09247-14043-000   0924714043000

0924714043000

Unit Price

6
CHAIN, OIL PUMP DRIVE

16310-48H00-000   1631048H00000

1631048H00000

Unit Price

7
SPROCKET, OIL PUMP DRIVE
SPROCKET, OIL PUMP DRIVE(NT:29)

16321-48H00-000   1632148H00000

1632148H00000

Unit Price

8
SPROCKET, OIL PUMP DRIVEN
SPROCKET, OIL PUMP DRIVEN(NT:15)

16331-48H00-000   1633148H00000

1633148H00000

Unit Price

9
PUMP ASSY, OIL

16400-20K00-000   1640020K00000

1640020K00000

Unit Price

10
PIN, OIL PUMP

16421-48H00-000   1642148H00000

1642148H00000

Unit Price

11
WASHER, PUMP DRIVEN GEAR THR

16422-48H00-000   1642248H00000

1642248H00000

Unit Price

12
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

13
CIRCLIP
CIRCLIP

08331-31109-000   0833131109000

0833131109000

Unit Price

14
VALVE ASSY, OIL RELIEF

16440-48H00-000   1644048H00000

1644048H00000

Unit Price

15
GASKET(16X22X2)

09168-16010-000   0916816010000

0916816010000

Unit Price

16
FILTER ASSY,ENGINE OIL
FILTER ASSY, ENGINE OIL

16510-07J00-000  

16510-07J10-000
 1651007J00000

Unit Price

17
STRAINER, ENGINE OIL

16520-48H00-000   1652048H00000

1652048H00000

Unit Price

18
O-RING(D:2.4, ID22.8)

09280-23L01-000   0928023L01000

0928023L01000

Unit Price

19
BOLT<br />BOLT(6X25)
BOLT
BOLT(6X25)

01550-0625A-000   015500625A000

015500625A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
