CLUTCH

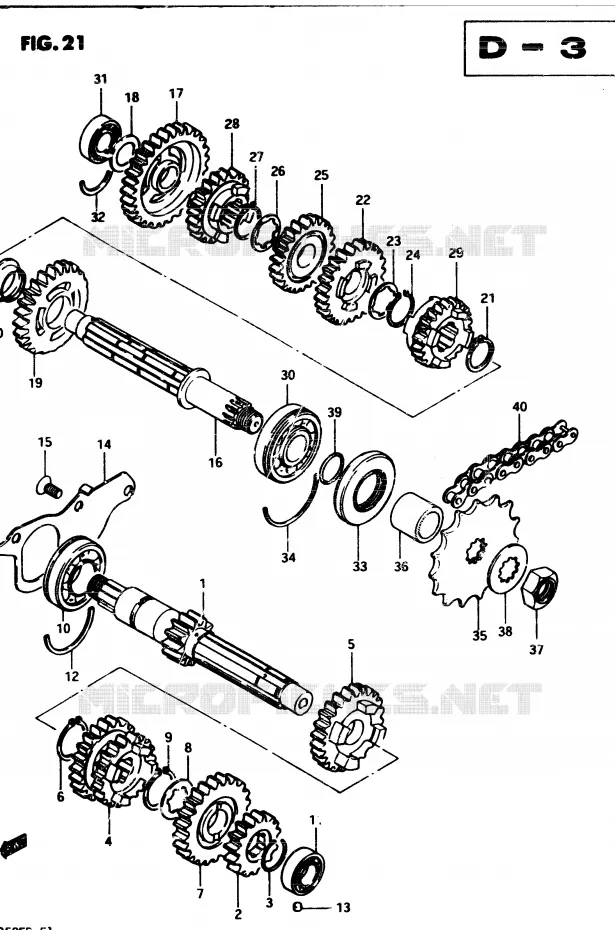

TRANSMISSION FOR SUZUKI GSX 250 1982

GEAR SHIFTING ASSY

COUNTERSHAFT (NT:12)

24121-11402-000 2412111402000

Not available

GEAR, 2ND DRIVE (NT:16)

24221-11300-000 2422111300000

Not available

RING

09380-22007-000 0938022007000

Not available

GEAR, 3/4 DRIVE (NT:19/21)

24231-11300-000 2423111300000

Not available

GEAR, 5TH DRIVE (NT:22)

24251-11300-000 2425111300000

Not available

CIRCLIP

08331-11229-000

08331-31229-000

$3,97

Unit Price

GEAR, 6TH DRIVE (NT:23)

24261-11300-000 2426111300000

Not available

DRIVEN GEAR WASHER
WASHER

09167-22011-000 0916722011000

$4,97

Unit Price

CIRCLIP

08331-11229-000

08331-31229-000

$3,97

Unit Price

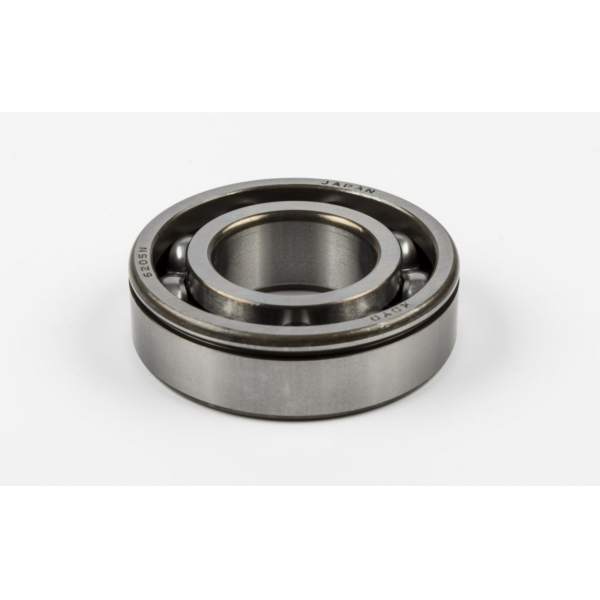

BEARING, RH

08160-62050-000 0816062050000

Not available

BEARING, LH

09263-17015-000 0926317015000

Not available

DISCONTINUE
C RING

09390-52002-000 0939052002000

Not available

PIN 7 X 12
PIN

04221-07129-000 0422107129000

$3,97

Unit Price

HOLDER, BEARING

24741-11400-000 2474111400000

Not available

SCREW

02122-06128-000

02122-06127-000

$3,97

Unit Price

DRIVESHAFT

24131-11500-000 2413111500000

Not available

GEAR, 1ST DRIVEN (NT:30)

24310-11300-000 2431011300000

Not available

SHIM(15X24X1)

08211-15241-000

09181-15166-000

$5,97

Unit Price

GEAR, 2ND DRIVEN (NT:26)

24321-11400-000 2432111400000

Not available

BUSH

09301-22002-000 0930122002000

$18,97

Unit Price

CIRCLIP

08331-11229-000

08331-31229-000

$3,97

Unit Price

GEAR, 3RD DRIVEN (NT:23)

24331-11400-000 2433111400000

Not available

DRIVEN GEAR WASHER
WASHER

09167-22011-000 0916722011000

$4,97

Unit Price

CIRCLIP

08331-11229-000

08331-31229-000

$3,97

Unit Price

GEAR, 4TH DRIVEN (NT:21)

24341-11300-000 2434111300000

Not available

DRIVEN GEAR WASHER
WASHER

09167-22011-000 0916722011000

$4,97

Unit Price

CIRCLIP

08331-11229-000

08331-31229-000

$3,97

Unit Price

GEAR, 5TH DRIVEN (NT:19)

24351-11300-000 2435111300000

Not available

GEAR, 6TH DRIVEN (NT:18)

24361-11300-000 2436111300000

Not available

BEARING

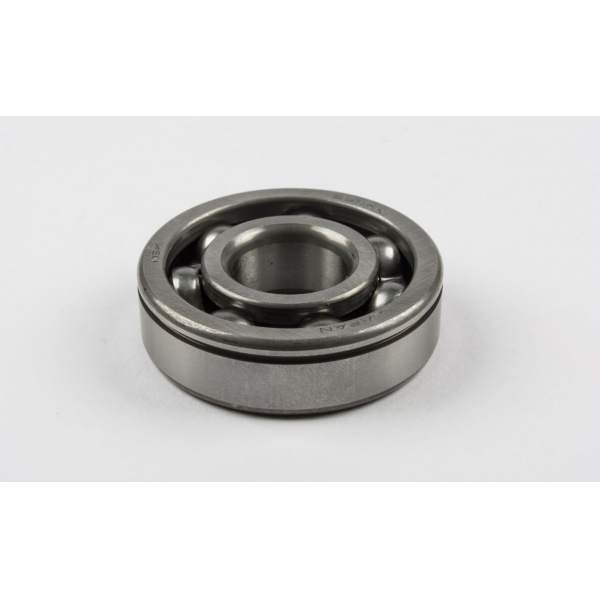

BEARING, LH

08160-63040-000 0816063040000

$30,97

Unit Price

BEARING, RH

08123-62020-000 0812362020000

Not available

RING

09390-35001-000 0939035001000

Not available

OIL SEAL (28X52X8.5)

09283-28012-000 0928328012000

Not available

DISCONTINUE
C RING

09390-52002-000 0939052002000

Not available

REORDER ROBINSONS

27511-11400-000 2751111400000

Not available

SPACER (20X28X21.6)

09180-20083-000 0918020083000

Not available

NUT

09159-16006-000 0915916006000

Not available

DISCONTINUE
LOCK WASHER

09167-20018-000 0916720018000

Not available

DR SHAFT BRG O RING
O RING

09280-20001-000 0928020001000

$3,97

Unit Price

CHAIN, DRIVE (520X11OLE)

27600-11531-000 2760011531000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki of GSX. Let us know if you have any questions.
