FRONT FENDER COLOR : F9S = 33J(BLACK),1HU(PURPLE)

REAR FENDER FOR SUZUKI GSX 250 1994

SEAT

Item numbers

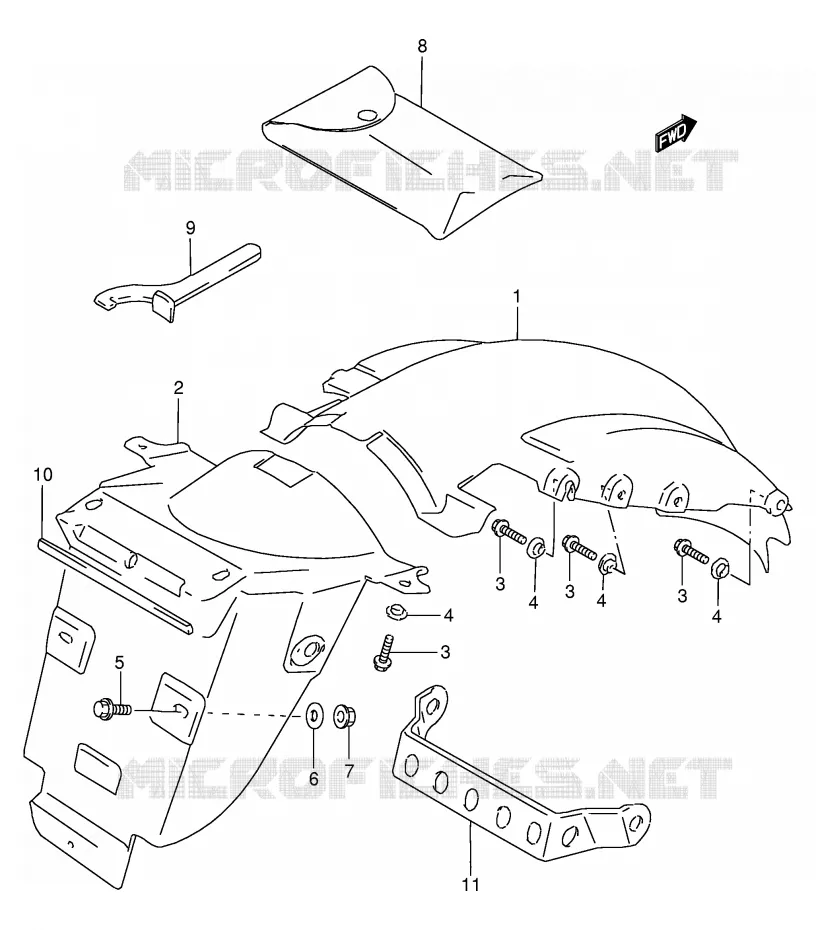

REAR FENDER Suzuki MOTO 250 GSX 1994 GSX250FR(E24)

1

BODY, REAR FENDER FRONT

63112-24D01-000 6311224D01000

Not available

2

BODY, REAR FENDER REAR

63113-24D00-000 6311324D00000

Not available

2

BODY, REAR FENDER REAR

63113-24D10-000 6311324D10000

Not available

3

BOLT

09111-06066-000 0911106066000

$4,97

Unit Price

3

01550-0616A
BOLT REFER TO FIG.52A(H-10) FOR MO

01517-06164-000

Not available

4

LOCK WASHER
WASHER

09169-06011-000 0916906011000

$9,97

Unit Price

5

BOLT

01550-06167-000 0155006167000

$3,97

Unit Price

6

WASHER (6.5X20X1.6)

09160-06066-000 0916006066000

$3,97

Unit Price

7

NUT

08316-20063-000

08316-10067-000

$3,97

Unit Price

8

TOOL ASSY

09800-20041-000 0980020041000

Not available

8

TOOL ASSY

09800-20046-000 0980020046000

Not available

8

DISCONTINUE
TOOL ASSY

09800-21006-000

Not available

9

CLAMP WRENCH

09822-00004-000 0982200004000

$15,97

Unit Price

10

CUSHION, REAR FENDER

63118-24D10-000 6311824D10000

Not available

11

REINFORCEMENT, REAR TURNSIGNAL LAMP

35621-24D00-000 3562124D00000

Not available

12

MANUAL, OWNER'S

99011-24D50-01A 9901124D5001A

Not available

12

MANUAL, OWNER'S

99011-24D51-01A 9901124D5101A

Not available

12

MANUAL, OWNER'S

99011-24D52-01A 9901124D5201A

Not available

12

MANUAL, OWNER'S

99011-24D53-01A 9901124D5301A

Not available

12

MANUAL, OWNER'S

99011-24D54-01A 9901124D5401A

Not available

12

MANUAL, OWNER'S

99011-24D55-01A 9901124D5501A

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FENDER of your Suzuki of GSX. Let us know if you have any questions.
