FAIRING (MODEL P / R / T) REFER TO FIG.37C(F-11) FOR MODEL V

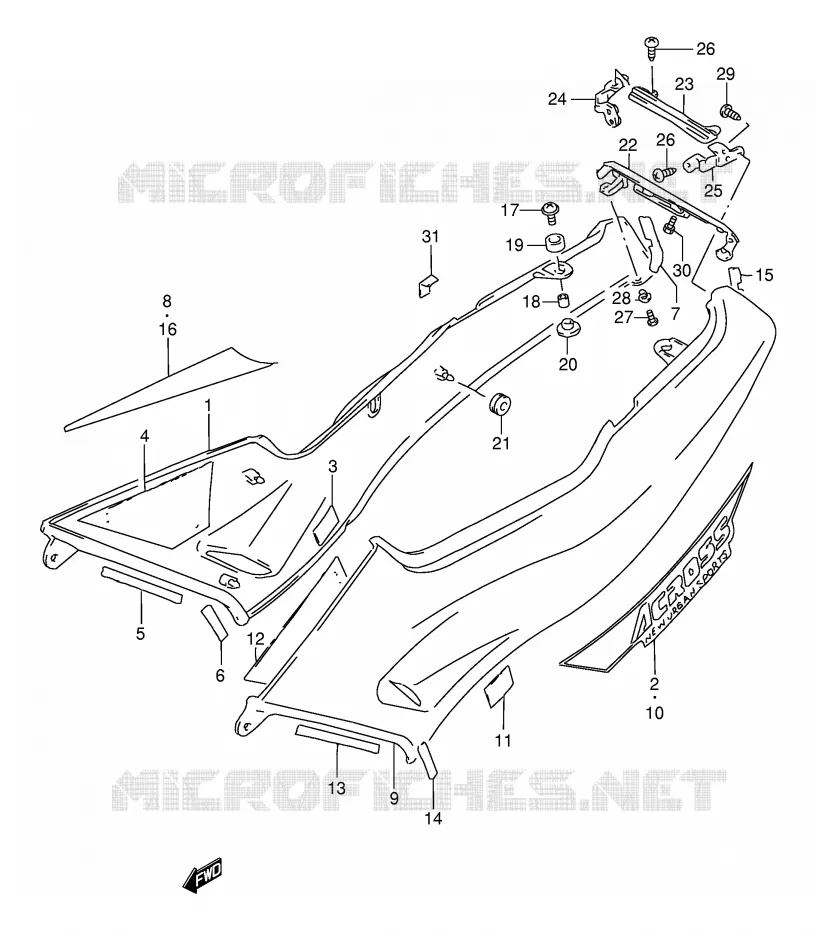

FAIRING (MODEL V) FOR SUZUKI GSX 250 1997

LID

Item numbers

COVER, FRAME RH (BLACK)

47110-24D60-2XX 4711024D602XX

Not available

COVER, FRAME RH (BLACK)

47110-24D60-33J 4711024D6033J

Not available

EMBLEM, FRAME COVER RH

68131-24D40-G0B 6813124D40G0B

Not available

EMBLEM, FRAME COVER RH

68131-24D40-G0C 6813124D40G0C

Not available

CUSHION

44885-38A00-000 4488538A00000

$6,97

Unit Price

SHIELD, HEAT RH

47117-24D00-000 4711724D00000

Not available

PROTECTOR, NO.1

47161-24D00-000 4716124D00000

Not available

PROTECTOR, FRAME COVE
PROTECTOR, NO.2

94461-08C00-000 9446108C00000

$8,97

Unit Price

SEAL, REAR

47162-24D00-000 4716224D00000

Not available

TAPE, COVER RH (PURPLE)

68135-24D00-1HU 6813524D001HU

Not available

TAPE, COVER RH (GREEN)

68135-24D00-1ZV 6813524D001ZV

Not available

COVER, FRAME LH (BLACK)

47210-24D60-2XX 4721024D602XX

Not available

COVER, FRAME LH (BLACK)

47210-24D60-33J 4721024D6033J

Not available

EMBLEM, FRAME COVER

68141-24D40-G0B 6814124D40G0B

Not available

EMBLEM, FRAME COVER

68141-24D40-G0C 6814124D40G0C

Not available

CUSHION

44885-38A00-000 4488538A00000

$6,97

Unit Price

SHIELD, HEAT LH

47217-24D00-000 4721724D00000

Not available

PROTECTOR, NO.1

47161-24D00-000 4716124D00000

Not available

PROTECTOR, FRAME COVE
PROTECTOR, NO.2

94461-08C00-000 9446108C00000

$8,97

Unit Price

SEAL, REAR

47162-24D00-000 4716224D00000

Not available

TAPE, COVER LH (PURPLE)

68145-24D00-1HU 6814524D001HU

Not available

TAPE, COVER LH (GREEN)

68145-24D00-1ZV 6814524D001ZV

Not available

SCREW

09136-06105-000 0913606105000

$3,97

Unit Price

SPACER, SEAT TAIL COVER
SPACER

45537-04A00-000 4553704A00000

$3,97

Unit Price

CUSHION, HELMET BOX UPR
CUSHION, UPPER

45149-04A00-000 4514904A00000

$5,97

Unit Price

CUSHION, TAIL COVER LWR
CUSHION, LOWER

45326-04A00-000 4532604A00000

$6,97

Unit Price

CUSHION(8X26X7)

09320-08018-000

09320-08513-000

$5,97

Unit Price

COVER, FRAME END (BLACK)

47320-24D10-33J 4732024D1033J

Not available

COVER, FRAME COVER REAR

47360-24D00-000 4736024D00000

Not available

BRACKET, FRAME COVER REAR RH

47366-24D00-000 4736624D00000

Not available

BRACKET, FRAME COVER REAR LH

47367-24D00-000 4736724D00000

Not available

SCREW

02142-05083-000

02142-0508A-000

$2,97

Unit Price

SCREW

02142-05123-000

02142-0512A-000

$2,97

Unit Price

WASHER

09161-05017-000 0916105017000

$5,97

Unit Price

SCREW

03541-05123-000

03541-0512B-000

$3,97

Unit Price

DISCONTINUE
BOLT

07130-05083-000

Not available

PROTECTOR, REAR (RED)

47163-24D00-33J 4716324D0033J

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FAIRING (MODEL V) of your Suzuki of GSX. Let us know if you have any questions.
