RADIATOR

RADIATOR HOSE FOR SUZUKI INAZUMA 250 2015

ANTI POLLUTION SYSTEM

Item numbers

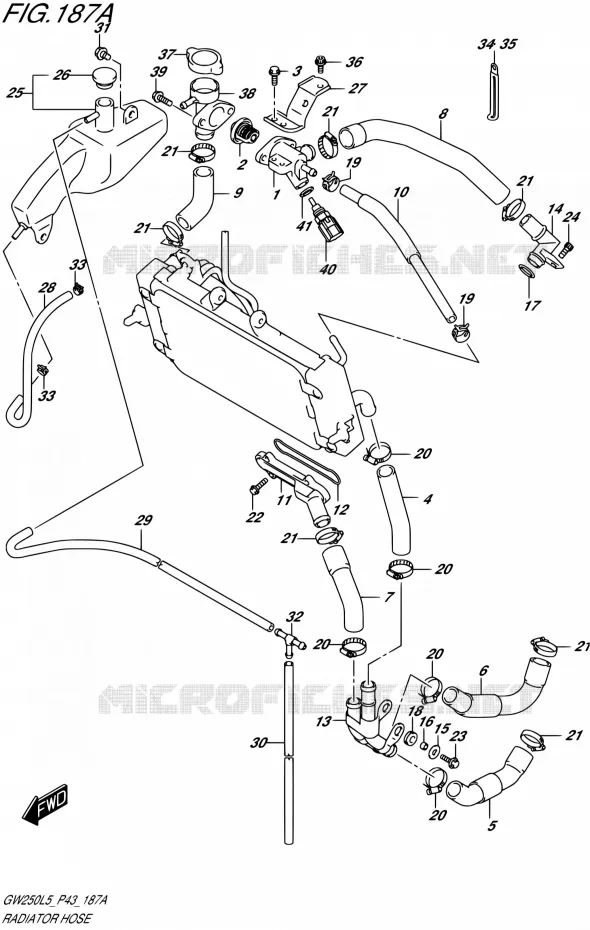

RADIATOR HOSE Suzuki MOTO 250 INAZUMA 2015 GW250 L5 (P43)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
20
20
20
21
21
21
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
37
38
39
40
41
1
CONNECTOR, THERMOSTAT INLET

17662-48H00-000   1766248H00000

1766248H00000

Unit Price

2
THERMOSTAT, WATER

17670-48H00-000  

17670-48H01-000
 1767048H00000

Unit Price

3
BOLT

01550-0616A-000   015500616A000

015500616A000

Unit Price

4
HOSE, RADIATOR OUTLET

17851-48H00-000   1785148H00000

1785148H00000

Unit Price

5
HOSE, WATER PUMP INLET

17852-48H00-000   1785248H00000

1785248H00000

Unit Price

6
HOSE, WATER PUMP OUTLET

17853-48H00-000   1785348H00000

1785348H00000

Unit Price

7
HOSE, CYLINDER CONNECTOR

17854-48H00-000   1785448H00000

1785448H00000

Unit Price

8
HOSE, THERMOSTAT CONNECTOR

17855-48H00-000   1785548H00000

1785548H00000

Unit Price

9
HOSE, RADIATOR INLET

17856-48H10-000   1785648H10000

1785648H10000

Unit Price

10
HOSE, WATER BYPASS

17857-48H00-000   1785748H00000

1785748H00000

Unit Price

11
CONNECTOR, CYLINDER WATER INLET
CONNECTOR, CYL WATER INLET

17861-48H00-000   1786148H00000

1786148H00000

Unit Price

12
O RING, CYL INLET CONNECTOR

17863-48H00-000   1786348H00000

1786348H00000

Unit Price

13
PIPE, WATER PUMP

17870-48H00-000   1787048H00000

1787048H00000

Unit Price

14
17880-48H10
PIPE, CYLINDER HEAD OUTLET

17880-48H00-000   1788048H00000

1788048H00000
Not available
15
MUD GUARD WASHER<br />WASHER (6.5X18X1)
MUD GUARD WASHER
WASHER (6.5X18X1)

09160-06028-000   0916006028000

0916006028000

Unit Price

16
SPACER (6.5X9X5)

09180-06365-000   0918006365000

0918006365000

Unit Price

17
O RING (D:3.2, ID:17.8)

09280-18011-000   0928018011000

0928018011000

Unit Price

18
CUSHION

09320-08084-000   0932008084000

0932008084000

Unit Price

19
CLIP

09401-12L02-000   0940112L02000

0940112L02000

Unit Price

20
CLAMP

09402-27L01-000   0940227L01000

0940227L01000

Unit Price

21
CLAMP

09402-32L01-000   0940232L01000

0940232L01000

Unit Price

22
BOLT

01547-0620A-000   015470620A000

015470620A000

Unit Price

23
BOLT

01550-0620A-000   015500620A000

015500620A000

Unit Price

24
BOLT

07130-0612A-000   071300612A000

071300612A000

Unit Price

25
TANK ASSY, RESERVOIR

17910-48H00-000   1791048H00000

1791048H00000

Unit Price

26
.CAP, RESERVOIR TANK
.CAP, RESERVOIR TANK

17932-12C00-000   1793212C00000

1793212C00000

Unit Price

27
BRACKET, RESERVOIR TANK

17920-48H00-000   1792048H00000

1792048H00000

Unit Price

28
HOSE, RESERVOIR TANK INLET
HOSE, RESERVOIR TANK INLET

17981-19F00-000   1798119F00000

1798119F00000

Unit Price

29
HOSE, RESERVOIR TANK INLET
HOSE, RESERVOIR TANK OVER FLOW

17981-48H00-000   1798148H00000

1798148H00000

Unit Price

30
HOSE, FUEL TANK WATER DRAIN

17985-48H10-000   1798548H10000

1798548H10000

Unit Price

31
BOLT
BOLT (6X12)

09111-06085-000   0911106085000

0911106085000

Unit Price

32
3 WAY, FUEL TANK WATER DRAIN
3 WAY

44438-48H10-000   4443848H10000

4443848H10000

Unit Price

33
CLIP

09401-08L01-000   0940108L01000

0940108L01000

Unit Price

34
CLAMP(L:65)

09404-06206-000  

09404-06432-000
 0940406206000

Unit Price

35
CLAMP(L:65)

09404-06207-000  

09404-06432-000
 0940406207000

Unit Price

36
BOLT

07120-0612A-000  

07120-0612B-000
 071200612A000

Unit Price

37
CAP, RADIATOR 1.1

17730-48H00-000   1773048H00000

1773048H00000

Unit Price

38
CONDUCTION, RADIATOR

17791-48H00-000  

17791-48H01-000
 1779148H00000

Unit Price

39
BOLT

01550-0620A-000   015500620A000

015500620A000

Unit Price

40
SENSOR, TEMP
SENSOR, WATER TEMP

13650-49X00-000   1365049X00000

1365049X00000

Unit Price

41
GASKET, TEMP SENSOR

13651-48H00-000   1365148H00000

1365148H00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 250 INAZUMA 2015
