Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANK BALANCER

CAMSHAFT - VALVES FOR SUZUKI INAZUMA 250 2015

TIMING

Item numbers

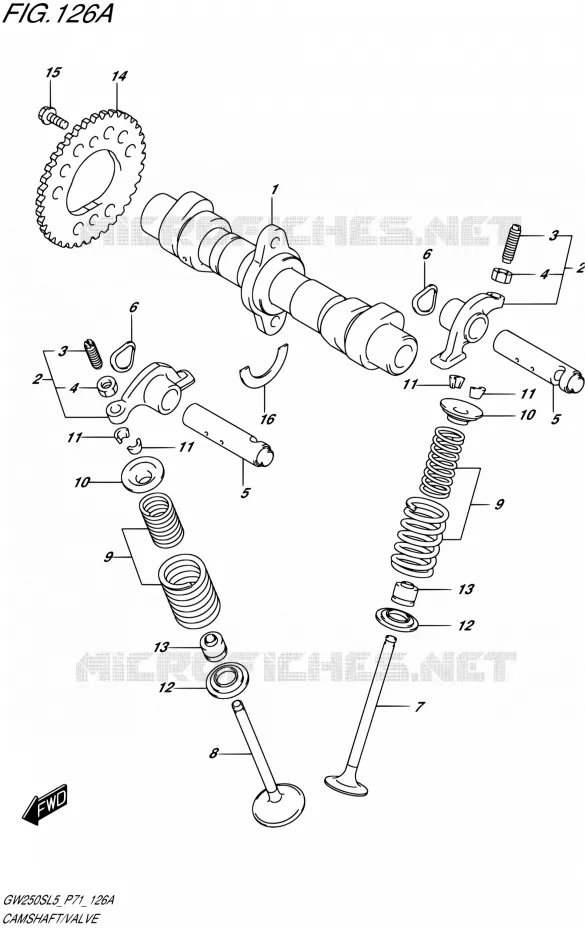

CAMSHAFT - VALVES Suzuki MOTO 250 INAZUMA 2015 GW250S L5 (P71)
1
2
2
3
3
4
4
5
5
6
6
7
8
9
9
10
10
11
11
11
11
12
12
13
13
14
15
16
1
CAMSHAFT

12710-48H00-000   1271048H00000

1271048H00000

Unit Price

2
DISCONTINUE
ARM, VALVE ROCKER

12840-20H10-000  

1284020H10000
Not available
3
SCREW, TAPPET ADJUSTING

12842-49220-000  

12842-49260-000
 1284249220000

Unit Price

4
DISCONTINUE
.NUT, TAPPET ADJUSTING

12843-27A10-000   1284327A10000

1284327A10000
Not available
5
SHAFT, VALVE ROCKER ARM

12861-48H00-000   1286148H00000

1286148H00000

Unit Price

6
WASHER, V LKR ARM SFT
WASHER

09164-12018-000   0916412018000

0916412018000

Unit Price

7
VALVE, INTAKE

12911-20H10-000  

12911-20H20-000
 1291120H10000

Unit Price

8
VALVE, EXHAUST

12912-20H10-000  

12912-20H20-000
 1291220H10000

Unit Price

9
SPRING SET, VALVE

12920-48H10-000   1292048H10000

1292048H10000

Unit Price

10
RETAINER, VALVE SPRING

12931-27A30-000   1293127A30000

1293127A30000

Unit Price

11
COTTER, VALVE

12932-27A10-000  

12932-36H00-000
 1293227A10000

Unit Price

12
SEAT, VALVE SPRING

12933-81410-000   1293381410000

1293381410000

Unit Price

13
SEAL, OIL(5X10X8.7)
OIL SEAL (5X10X8.7)

09289-05L02-000   0928905L02000

0928905L02000

Unit Price

14
SPROCKET, CAMSHAFT
SPROCKET, CAMSHAFT (NT:38)

12741-48H00-000   1274148H00000

1274148H00000

Unit Price

15
BOLT (6X12.5)

09111-06027-000   0911106027000

0911106027000

Unit Price

16
C-RING, CAM SHAFT
C RING

09390-22002-000   0939022002000

0939022002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 250 INAZUMA 2015

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 250 INAZUMA 2015

Choose your Suzuki 250 2015 INAZUMA model

250 INAZUMA 2015 GW250S L5 (P71)

Suzuki INAZUMA

Displacement: 250 cc
Year: 2015
Model code GW250S L5 (P71)
