STARTER MOTOR CLUTCH

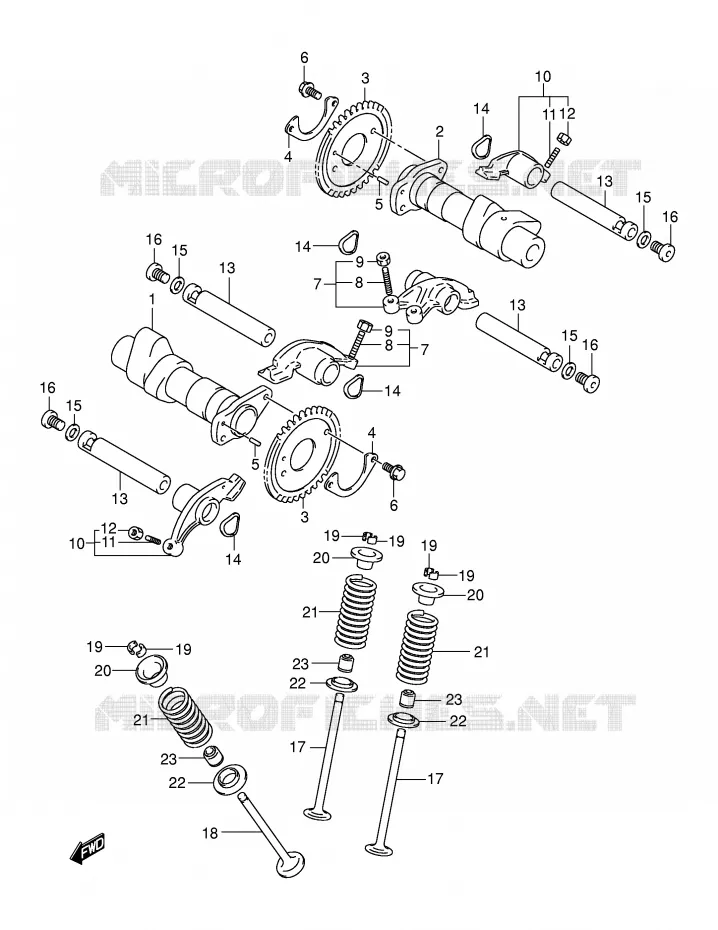

CAMSHAFT - VALVES FOR SUZUKI INTRUDER 250 2003

TIMING

Item numbers

CAMSHAFT, FRONT

12711-27F00-000 1271127F00000

Not available

CAMSHAFT, REAR

12713-27F00-000 1271327F00000

Not available

SPROCKET, CAMSHAFT

12741-26F00-000 1274126F00000

Not available

C-RING, CAM SHAFT
C RING

09390-22002-000 0939022002000

$3,97

Unit Price

KNOCK PIN, SPROCKET
PIN

09261-05005-000 0926105005000

$2,97

Unit Price

BOLT

09111-06070-000 0911106070000

Not available

ARM, VALVE ROCKER, IN

12840-27F00-000 1284027F00000

Not available

SCREW, TAPPET ADJUSTING
SCREW

12842-17C50-000 1284217C50000

$19,97

Unit Price

NUT, TAPPET ADJUSTING
NUT

12843-27A00-000 1284327A00000

$4,97

Unit Price

ARM, VALVE ROCKER EX

12850-26F00-000 1285026F00000

Not available

SCREW, TAPPET ADJUSTING
SCREW

12842-17C50-000 1284217C50000

$19,97

Unit Price

NUT, TAPPET ADJUSTING
NUT

12843-27A00-000 1284327A00000

$4,97

Unit Price

SHAFT, VALVE ROCKER ARM INTAKE
SHAFT, VALVE ROCKER ARM

12861-14D50-000 1286114D50000

$30,97

Unit Price

WASHER, WAVE

09164-12021-000 0916412021000

$3,97

Unit Price

GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000 0916814002000

$3,97

Unit Price

09248-14011
PLUG, ROCKER ARM SHAFT

09248-14005-000

Not available

VALVE, INTAKE

12911-27F00-000 1291127F00000

Not available

VALVE, EXHAUST

12912-27F01-000 1291227F01000

Not available

COTTER, VALVE

12932-32C00-000 1293232C00000

$2,97

Unit Price

RETAINER, SPRING

12931-26F00-000 1293126F00000

Not available

SPRING, VALVE

12921-47E00-000 1292147E00000

Not available

SEAT, SPRING

12933-16E00-000 1293316E00000

Not available

OIL SEAL

09289-04002-000 0928904002000

$10,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
