WATER PUMP

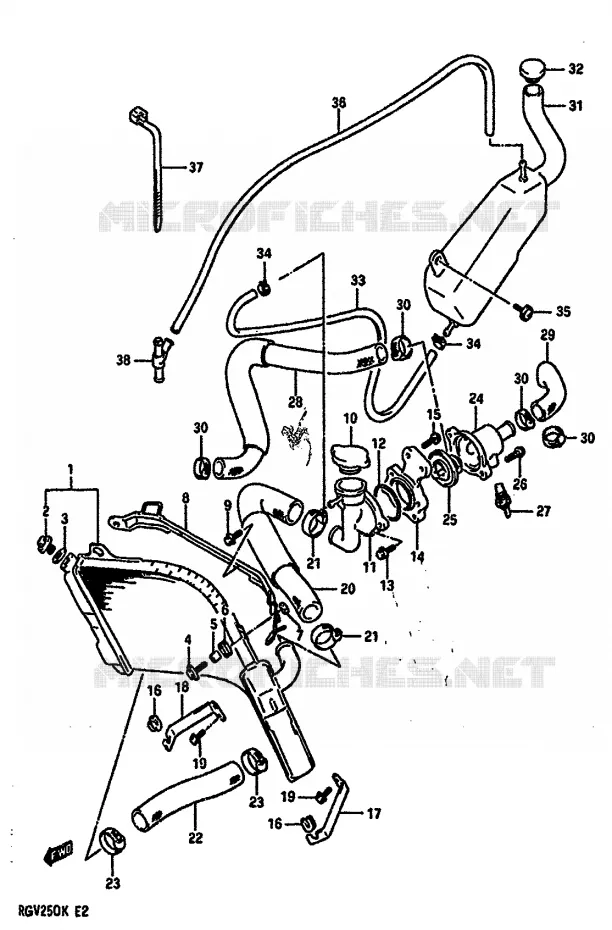

RADIATOR FOR SUZUKI RG 250 1989

CLUTCH

RADIATOR ASSY, WATER

17710-12C00-000 1771012C00000

Not available

PLUG

17718-38405-000 1771838405000

Not available

GASKET

17759-63210-000 1775963210000

Not available

BOLT, 6X20, W/PL WASHE

09116-06143-000

09116-06115-000

$2,97

Unit Price

SPACER

09180-06030-000

09180-06310-000

$3,97

Unit Price

CUSHION

09320-10015-000 0932010015000

$3,97

Unit Price

NUT 6MM

08316-16064-000

08319-31067-000

$3,97

Unit Price

BRACKET, RADIATOR UPPER

17740-12C01-000 1774012C01000

Not available

01580-06167
BOLT

01174-06168-000

Not available

CAP, RADIATOR

17730-20930-000

17730-08J00-000

$38,97

Unit Price

DISCONTINUE
CONDUCTION, RADIATOR

17791-32C00-000 1779132C00000

Not available

O RING

09280-44005-000 0928044005000

$7,97

Unit Price

BOLT

01517-06167-000

01550-06167-000

$3,97

Unit Price

BRACKET, CONDUCTION

17792-12C00-000 1779212C00000

$71,97

Unit Price

BOLT

01517-06307-000

01550-06307-000

$4,97

Unit Price

CUSHION, OIL COOLER NO.2
CUSHION

16628-27A00-000 1662827A00000

$4,97

Unit Price

BRACKET, RADIATOR LOWER LH

17742-12C01-000 1774212C01000

Not available

BRACKET, RADIATOR LOWER RH

17741-12C01-000 1774112C01000

Not available

01550-0616A
BOLT REFER TO FIG.52A(H-10) FOR MO

01517-06164-000

Not available

HOSE, RADIATOR INLET

17851-12C00-000 1785112C00000

Not available

CLAMP

09402-30502-000

09402-32511-000

$23,97

Unit Price

HOSE, RADIATOR OUTLET

17852-12C01-000 1785212C01000

Not available

CLAMP

09402-32502-000 0940232502000

Not available

CONNECTOR, THERMOSTAT INLET

17662-12C01-000 1766212C01000

Not available

THERMOSTAT COMP, WATE

17670-12C00-000

17670-12C01-000

$84,97

Unit Price

BOLT

01517-06207-000

01550-06207-000

$3,97

Unit Price

GAUGE ASSY, WATER TEMP

34850-82011-000

34850-14F00-000

$83,97

Unit Price

HOSE, RADIATOR JOINT NO.1

17853-12C01-000 1785312C01000

Not available

HOSE, RADIATOR JOINT NO.2

17854-12C00-000 1785412C00000

Not available

CLAMP

09402-25502-000

09402-28511-000

$13,97

Unit Price

TANK ASSY, RESERVOIR

17910-12C01-000 1791012C01000

Not available

CAP, RESERVOIR TANK

17932-12C00-000 1793212C00000

$6,97

Unit Price

HOSE SET, RESERVOIR INLET

17981-12C00-000

17900-41810-000

$31,97

Unit Price

CLIP

09401-08407-000

Not available

SCREW (6X16)

09136-06017-000 0913606017000

$3,97

Unit Price

HOSE, 5 X 9 X 2000

09352-50901-650

09352-50901-00A

$30,97

Unit Price

DISCONTINUE
CLAMP (L:214)

09407-22404-000 0940722404000

Not available

DISCONTINUE
UNION, 3 WAY

09367-06005-000 0936706005000

Not available
