CARBURETOR (EXCEPT MODEL N / P E22) REFER TO FIG.6A (B-13) FOR MODEL N/P E22

CARBURETOR (MODEL N / P E22) FOR SUZUKI RG 250 1992

AIR FILTER (EXCEPT MODEL N / P E22) REFER TO FIG.7A(C- 4) FOR MODEL N/P E22

Item numbers

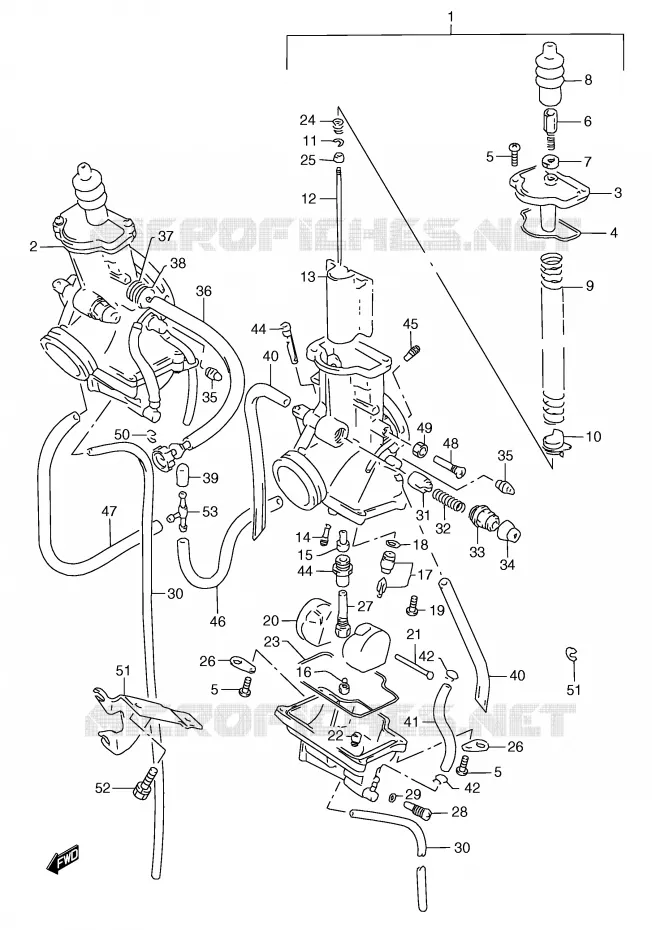

CARBURETOR (MODEL N/P E22) Suzuki MOTO 250 RG 1992 RGV250N(E24)
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
22
23
24
25
26
26
27
28
28
29
30
30
31
32
33
34
35
35
36
37
38
39
40
40
41
42
42
44
44
45
45
46
47
48
49
50
51
51
52
53
1
CARBURETOR ASSY, LH

13201-22D70-000   1320122D70000

1320122D70000
Not available
2
CARBURETOR ASSY, RH

13202-22D70-000   1320222D70000

1320222D70000
Not available
3
CAP, TOP

13261-22D00-000   1326122D00000

1326122D00000
Not available
4
O RING,TOP CAP<br />O RING
O RING, TOP CAP
O RING

13251-26C00-000   1325126C00000

1325126C00000

Unit Price

5
SCREW
SCREW

13602-05A40-000  

02112-0412A-000
 1360205A40000

Unit Price

6
ADJUSTER, CABLE
ADJUSTER, CABLE

13577-41612-000   1357741612000

1357741612000

Unit Price

7
NUT<br />NUT, CABLE ADJUSTER LOCK
NUT
NUT, CABLE ADJUSTER LOCK

13661-16600-000   1366116600000

1366116600000

Unit Price

8
CAP,CABLE ADJUSTER<br />BOOT
CAP, CABLE ADJUSTER
BOOT

13681-41510-000   1368141510000

1368141510000

Unit Price

9
SPRING

13573-22D10-000   1357322D10000

1357322D10000
Not available
10
RING

13387-19D00-000   1338719D00000

1338719D00000
Not available
11
CLIP, NEEDLE
CLIP, NEEDLE

13394-31210-000   1339431210000

1339431210000

Unit Price

12
NEEDLE, JET LH (6FL89-55-3)

13383-22D70-000   1338322D70000

1338322D70000
Not available
13
VALVE, PISTON (CA:1.5)

13551-22D00-000   1355122D00000

1355122D00000
Not available
14
JET,PILOT<br />JET, PILOT (22.5)
JET, PILOT
JET, PILOT (22.5)

09492-22006-000   0949222006000

0949222006000

Unit Price

15
JET, NEEDLE (O-7)

09494-00771-000   0949400771000

0949400771000
Not available
16
DISCONTINUE<br />JET, MAIN LH (270)
DISCONTINUE
JET, MAIN LH (270)

09491-54002-000   0949154002000

0949154002000
Not available
16
DISCONTINUE
JET, MAIN RH (280)

09491-56003-000   0949156003000

0949156003000
Not available
17
VALVE ASSY, NEEDLE

13370-12C10-000   1337012C10000

1337012C10000
Not available
18
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

19
SCREW
SCREW

13602-43410-000   1360243410000

1360243410000

Unit Price

20
FLOAT
FLOAT

13250-12C00-000   1325012C00000

1325012C00000
Not available
21
PIN, FLOAT
PIN, FLOAT

13254-92311-000   1325492311000

1325492311000

Unit Price

22
JET, POWER RH (35)

09491-35012-000   0949135012000

0949135012000
Not available
22
JET, POWER LH (45)
JET, POWER LH (45)

09491-45002-000   0949145002000

0949145002000
Not available
23
GASKET,FLOAT CAHMBER<br />GASKET, FLOAT CHAMBER
GASKET, FLOAT CAHMBER
GASKET, FLOAT CHAMBER

13672-12C00-000   1367212C00000

1367212C00000

Unit Price

24
SPRING

13268-22D00-000   1326822D00000

1326822D00000
Not available
25
RING
RING

13387-44030-000   1338744030000

1338744030000

Unit Price

26
PLATE,CARBURETOR<br />PLATE
PLATE, CARBURETOR
PLATE

13693-36500-000   1369336500000

1369336500000

Unit Price

27
HOLDER, JET

13385-19D00-000   1338519D00000

1338519D00000
Not available
28
PLUG,DRAIN<br />SCREW, DRAIN LH
PLUG, DRAIN
SCREW, DRAIN LH

13247-02340-000   1324702340000

1324702340000

Unit Price

29
O RING<br />O RING, LH
O RING
O RING, LH

13278-02340-000   1327802340000

1327802340000

Unit Price

30
HOSE (3X5X650)
HOSE (3X5X650)

13684-40A00-000   1368440A00000

1368440A00000

Unit Price

31
PLUNGER, STARTER
PLUNGER, STARTER

13411-01010-000   1341101010000

1341101010000

Unit Price

32
SPRING
SPRING

13417-37200-000   1341737200000

1341737200000

Unit Price

33
HOLDER, GUIDE
HOLDER, GUIDE

13418-43410-000   1341843410000

1341843410000

Unit Price

34
CAP
CAP

13681-04010-000  

13681-04011-000
 1368104010000

Unit Price

35
CAP

13688-22D20-000   1368822D20000

1368822D20000
Not available
36
ADJUSTER, THROTTLE STOP RH
ADJUSTER, THROTTLE STOP RH

13267-12C10-000   1326712C10000

1326712C10000
Not available
37
SPRING, RH
SPRING, RH

13268-12C00-000   1326812C00000

1326812C00000
Not available
38
WASHER, RH
WASHER, RH

13547-12C00-000   1354712C00000

1354712C00000
Not available
39
CAP

13688-22D10-000   1368822D10000

1368822D10000
Not available
40
HOSE (4X7X90)

13683-22D10-000   1368322D10000

1368322D10000
Not available
41
HOSE SET
HOSE SET

13218-12C00-000   1321812C00000

1321812C00000
Not available
42
CLIP

13671-12C00-000  

09401-06101-000
 1367112C00000

Unit Price

43
RING

13452-19D00-000   1345219D00000

1345219D00000
Not available
44
FILTER
FILTER

13236-12C00-000   1323612C00000

1323612C00000

Unit Price

45
JET,AIR(0.6)<br />JET, MAIN AIR (0.6) LH
JET, AIR(0.6)
JET, MAIN AIR (0.6) LH

09493-60004-000   0949360004000

0949360004000

Unit Price

45
JET, MAIN AIR (0.7) RH
JET, MAIN AIR (0.7) RH

09493-70009-000   0949370009000

0949370009000
Not available
46
HOSE (3.5X6.5X250)

13683-13A00-000   1368313A00000

1368313A00000
Not available
47
HOSE (3.5X6.5X250)

13683-13A00-000   1368313A00000

1368313A00000
Not available
48
SCREW, ADJUSTER LH
SCREW, ADJUSTER LH

13247-22D00-000   1324722D00000

1324722D00000
Not available
49
NUT<br />NUT, LH
NUT
NUT, LH

13607-47070-000   1360747070000

1360747070000

Unit Price

50
E RING
E RING

13617-12C00-000   1361712C00000

1361712C00000
Not available
51
BRACKET, ADJUSTER
BRACKET, ADJUSTER

13621-12C00-000   1362112C00000

1362112C00000
Not available
52
BOLT

01137-06167-000  

01570-06167-000
 0113706167000

Unit Price

53
DISCONTINUED

13685-16720-000   1368516720000

1368516720000
Not available
