REAR SHOCK ABSORBER

SHOCK ABSORBER LINKAGE FOR SUZUKI RM-Z 250 2009

REAR WHEEL (MODEL K7) REFER TO FIG.42A(G- 3) FOR MODEL K8/K9

Item numbers

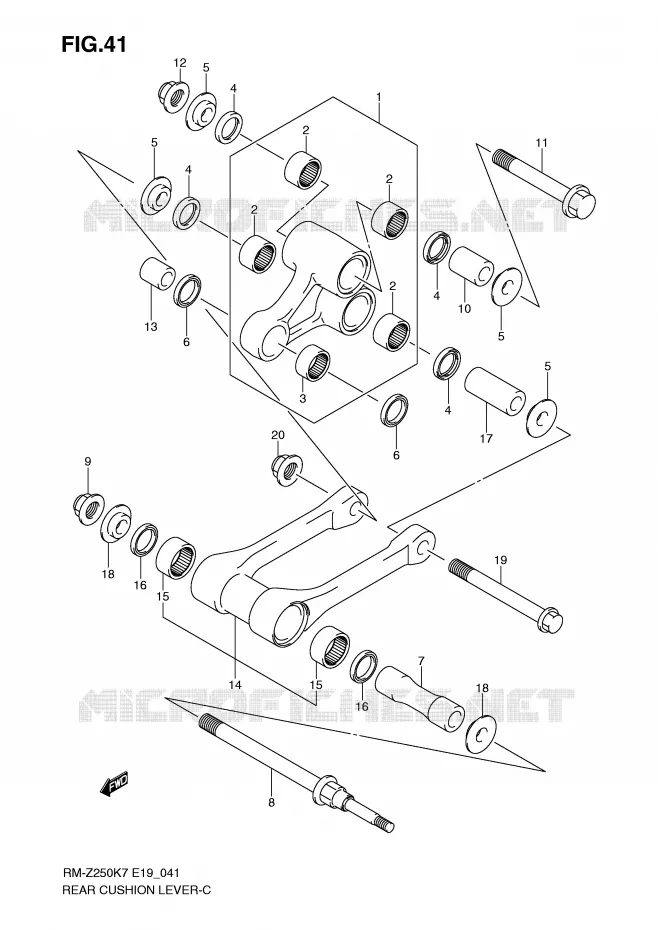

SHOCK ABSORBER LINKAGE Suzuki MOTO 250 RM-Z 2009 RM-Z250K9(E19)
1
2
2
2
2
3
4
4
4
4
5
5
5
5
6
6
7
8
8
9
10
11
12
13
14
15
15
16
16
17
18
18
19
20
1
LEVER SET, RR CUSHION
LEVER SET, REAR CUSHION

62600-35850-000   6260035850000

6260035850000

Unit Price

2
BEARING
BEARING (20X26X14)

09263-20090-000   0926320090000

0926320090000

Unit Price

3
BEARING (20X26X12)

09263-20083-000   0926320083000

0926320083000

Unit Price

4
SEAL, RR CUSHION LEVE
SEAL, DUST (19X26X4)

09284-20003-000   0928420003000

0928420003000

Unit Price

5
SPACER, RR CUSHION LEVER SIDE
SPACER

62647-37F10-000   6264737F10000

6264737F10000

Unit Price

6
SEAL, OIL, 20X26X4.5
SEAL, REAR (20X26X4.5)

09284-20001-000   0928420001000

0928420001000

Unit Price

7
SPACER, RR CUSHION ROD

62317-37F10-000   6231737F10000

6231737F10000

Unit Price

8
BOLT, RR CUSHION ROD

62621-28H00-000   6262128H00000

6262128H00000

Unit Price

8
DISCONTINUE
BOLT, RR CUSHION ROD

62621-35G00-000   6262135G00000

6262135G00000
Not available
9
NUT, REARCUSHION
NUT

09159-12056-000   0915912056000

0915912056000

Unit Price

10
SPACER, RR CUSHION LEVER UPPER
SPACER, CENTER (15X20X44)

62648-37F10-000   6264837F10000

6264837F10000

Unit Price

11
BOLT, RR CUSHION LEVER UPR
BOLT, CENTER

62658-37F10-000   6265837F10000

6265837F10000

Unit Price

12
NUT, REARCUSHION
NUT

09159-12056-000   0915912056000

0915912056000

Unit Price

13
SPACER, RR CUSHION LEVER RR
SPACER, REAR CUSHION LEVER

62684-36E00-000   6268436E00000

6268436E00000

Unit Price

14
ROD SET, RR CUSHION LEVER
ROD SET, REAR CUSHION LEVER

62600-35860-000   6260035860000

6260035860000

Unit Price

15
BEARING

09263-20090-000   0926320090000

0926320090000

Unit Price

16
SEAL, RR CUSHION LEVE
SEAL

09284-20003-000   0928420003000

0928420003000

Unit Price

17
SPACER, RR CUSHION LEVER LWR
SPACER, RR CUSHION LOWER

62646-37F10-000   6264637F10000

6264637F10000

Unit Price

18
SPACER, RR CUSHION LEVER SIDE
SPACER

62647-37F10-000   6264737F10000

6264737F10000

Unit Price

19
BOLT, RR CUSHION LEVER LWR
BOLT, ROD

62657-37F10-000   6265737F10000

6265737F10000

Unit Price

20
NUT, REARCUSHION
NUT

09159-12056-000   0915912056000

0915912056000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SHOCK ABSORBER LINKAGE of your Suzuki of RM-Z. Let us know if you have any questions.

Genuine parts for Suzuki 250 RM-Z 2009

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 250 RM-Z 2009

Select your Suzuki 2009 model

250 RM-Z 2009 RM-Z250K9(E19)

Suzuki RM-Z

Displacement: 250 cc
Year: 2009
Model code RM-Z250K9(E19)
