FRONT MASTER CYLINDER

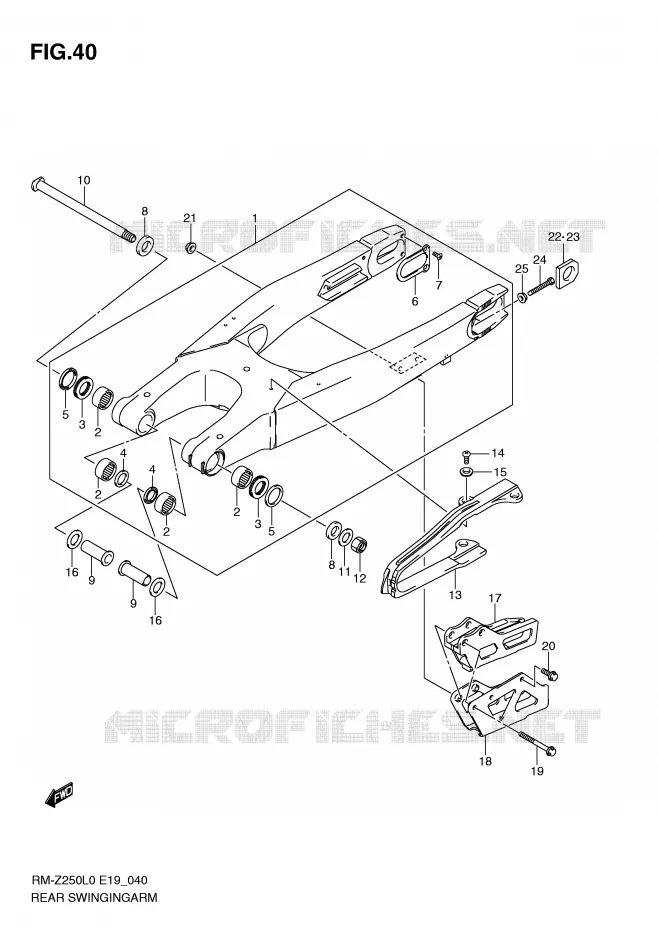

SWINGARM FOR SUZUKI RM-Z 250 2010

REAR SHOCK ABSORBER

Item numbers

DISCONTINUE
SWINGING ARM ASSY, REAR

61000-49H00-000 6100049H00000

Not available

BEARING, 22X29X15
BEARING, PIVOT (22X29X30)

09263-22070-000 0926322070000

$35,97

Unit Price

BEARING
BEARING, OUTER (22X35X2)

09263-22064-000 0926322064000

$30,97

Unit Price

SEAL, OIL

09285-22001-000

09285-22006-000

$7,97

Unit Price

SEAL, RR SWGARM PIVOT OUTER
SEAL, OUTER (29.2X37X4)

61262-36E00-000 6126236E00000

$10,97

Unit Price

DISCONTINUE
PLATE, SWINGINGARM, REAR

61128-35G00-000 6112835G00000

Not available

SCREW
SCREW (4X10)

02122-0410B-000 021220410B000

$3,97

Unit Price

SPACER, RR SWGARM PIVOT OUTER
SPACER, PIVOT OUTER

61251-36E01-000 6125136E01000

$18,97

Unit Price

SPACER, SWGARM PIVOT INNER
SPACER, PIVOT INNER

61252-37F01-000 6125237F01000

$43,97

Unit Price

SHAFT, RR SWINGINGARM PIVOT
SHAFT, PIVOT

61211-35G00-000 6121135G00000

$78,97

Unit Price

WASHER

08322-0116B-000 083220116B000

$3,97

Unit Price

09159-16007

09159-16007-000

Not available

BUFFER, CHAIN TOUCH DEFENSE

61273-35G00-000

61273-35G10-000

$76,97

Unit Price

SCREW

02112-0508B-000 021120508B000

$3,97

Unit Price

WASHER

09169-05022-000 0916905022000

$6,97

Unit Price

WASHER

08211-22365-000 0821122365000

$7,97

Unit Price

GUIDE, CHAIN

61341-35G10-000 6134135G10000

$128,97

Unit Price

PLATE, CHAIN GUIDE
PLATE, GUIDE OUTER

61342-37F00-000 6134237F00000

$61,97

Unit Price

BOLT, CRANKCASE
BOLT, UPPER (6X45)

09103-06242-000 0910306242000

$6,97

Unit Price

BOLT
BOLT, REAR (6X12)

09103-06233-000 0910306233000

$3,97

Unit Price

NUT

08316-1006B-000 083161006B000

$3,97

Unit Price

WASHER, CHAIN ADJUSTER RH

61445-28H10-000 6144528H10000

Not available

WASHER, CHAIN ADJUSTER LH

61446-35G00-000

61446-35G01-000

$37,97

Unit Price

BOLT
BOLT (8X50)

09100-08287-000 0910008287000

$5,97

Unit Price

NUT

09159-08034-000 0915908034000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki of RM-Z. Let us know if you have any questions.
